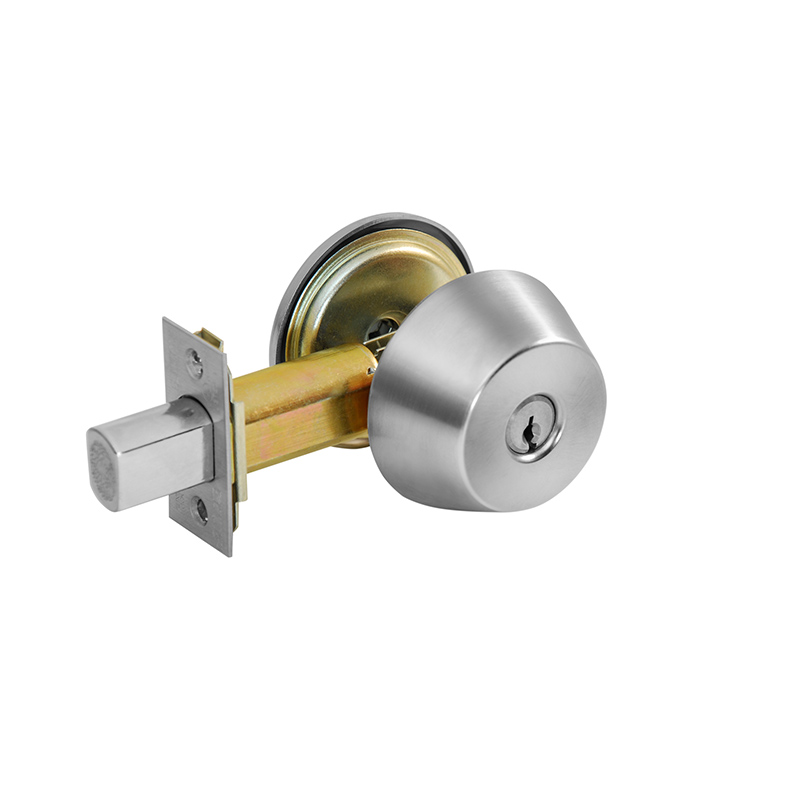

Corbin Russwin DL3217626 Classroom Grade 1 Deadbolt L4 Keyway Satin Chrome Finish is engineered to meet the demands of commercial and institutional environments while delivering reliable security. This non-handed deadbolt features a robust design, aligning with UL 10B and UL 10C fire ratings, ensuring both safety and compliance in fire-rated door assemblies. Crafted with a durable die-cast zinc material, the deadbolt is built to withstand the rigors of daily use. The satin chrome finish not only enhances its aesthetic appeal but also provides a corrosion-resistant surface that maintains its sleek appearance over time. With a backset of 2-3/4" and a crossbore size of 2-1/8", the DL3217626 fits standard door preparations, accommodating door thicknesses from 1-3/4" to 2-1/4". Designed with a Grade 1 rating per ANSI/BHMA A156.36, this lockset promises exceptional performance. The L4 keyway provides a level of security suitable for classroom settings, while the deadbolt strike measures 1-1/8" x 2-3/4", ensuring compatibility with various door frames. Backed by a limited 1-year warranty, the Corbin Russwin DL3217626 is a reliable choice for those seeking quality and durability in door hardware.
Classroom Grade 1 Deadbolt L4 Keyway Satin Chrome Finish
Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 1"
Bolt Protection: 1 In.
Burglar Rated: No
Category: Mechanical Commercial Locksets
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Door Range: 1-3/8" to 2-1/4"
Door Thickness: 1-3/4 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: 626
Finish Description: Bright Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 17-Classroom Deadbolt
Hand: Not Handed
Handing: Not Handed
Hazardous Material: NO
Keying: Keyed Different
Keys: Cut
Keyway: L4
Latch Backset Dim: 2-3/4 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Type: Deadbolt
Limited Warranty: 1 Year
Manufacturer Warranty: Limited 1 Year Warranty
Material: Die Cast Zinc
No Of Inners: 1
No Of Pins: 6 Pin
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Pack Height: 4"
Pack Length: 7.88"
Pack Qty: 1
Pack Volume: 126 in³
Pack Width: 4"
Pins: 6
Screws: Combination
Series: DL3200 Series
Ship Weight: 2.5 lbs.
Std Keyway: L4
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4"
Std Strike Type: Flat
Std Strike Width: 1-1/8"
Strike: Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadbolts
Type: Mechanical Commercial Locksets
Ul Listing Type: UL10B / UL10C Fire Rated
Unit of Measure: Each
