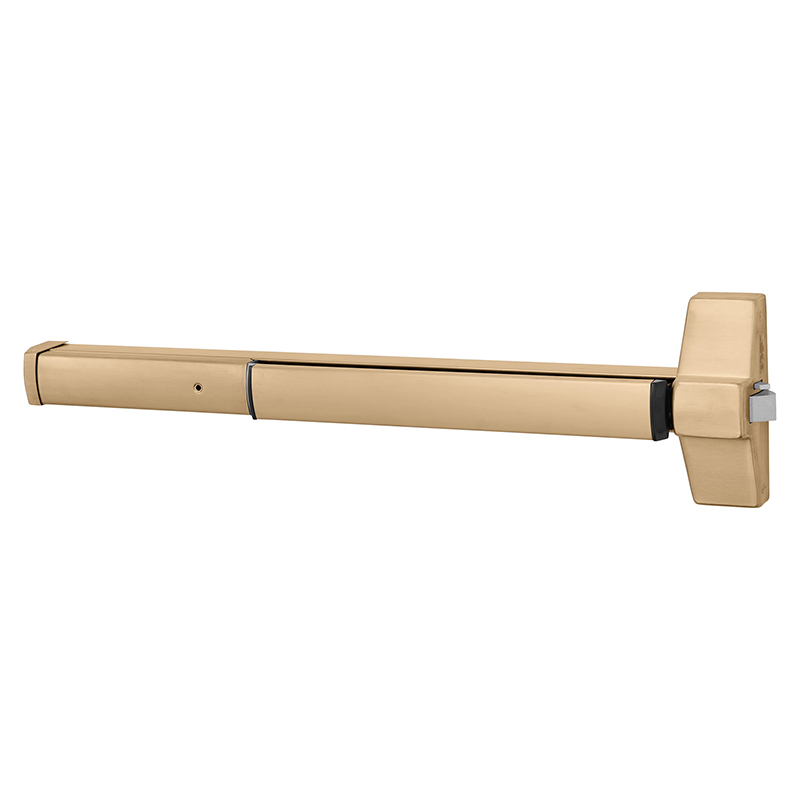

Corbin Russwin ED5200 612 Grade 1 Rim Exit Device offers unparalleled security and aesthetic appeal, making it an ideal choice for commercial applications. Crafted with a 36-inch satin bronze finish, this exit device features a sleek, wide stile pushpad design that complements any architectural style. Known for its robust construction, the ED5000 Series exceeds ANSI/BHMA Grade 1 requirements, ensuring durability and longevity in high-traffic environments. This modular exit device is available in various configurations, including rim, mortise, surface vertical, and concealed vertical rod options. Its maintenance-free design allows for easy installation on both metal and wood doors, accommodating door widths of 30 to 36 inches and thicknesses of 1 3/4 inches. The ED5200 is equipped with hex key dogging for added convenience. Additionally, this exit device can be enhanced with electro-mechanical solutions and is available with a Microshield® antimicrobial coating to promote hygiene. With a commitment to sustainability, it contains 61% post-consumer recycled content, qualifying for LEED MR credit 4. Backed by a 5-year warranty, the Corbin Russwin ED5200 delivers peace of mind for both building professionals and knowledgeable homeowners.
Grade 1 Rim Exit Device
Rim Exit Device, 36", Satin Bronze
Over the past 100 years, Corbin Russwin has been well-known for weaving pleasing aesthetics and inventive designs into architectural door hardware, and today's wide stile exit device line is no exception. The ED5000 Series offers smooth lines in the exit device bar and a full range of trim designs with visual diversity, including the MusÂo and Vineyard Collections.
Among the strongest, most durable exit devices on the market, with additional security options available.
The ED5000 is available in rim, mortise, surface vertical and concealed vertical rod configurations. These exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength.
Base Material: Bronze
Commercial Residential: Commercial
Device Length: 36"
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1 3/4 In.
Door Width: 30 In. - 36 In.
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Exit Only, Accepts Trim
Minimum Stile Size: 4-1/2 In.
Pack Height: 5.75"
Pack Length: 39.75"
Pack Qty: 1
Pack Volume: 2342.77 in³
Pack Width: 10.25"
Physical Appearance: Wide Stile Pushpad
Series: ED5000 Series Pushpad Exit Devices
Ship Weight: 16.1 lbs.
Strike Standard: 650F30-8
Subtype: Rim Exit Devices
Type: Exit Devices
Unit of Measure: Each
