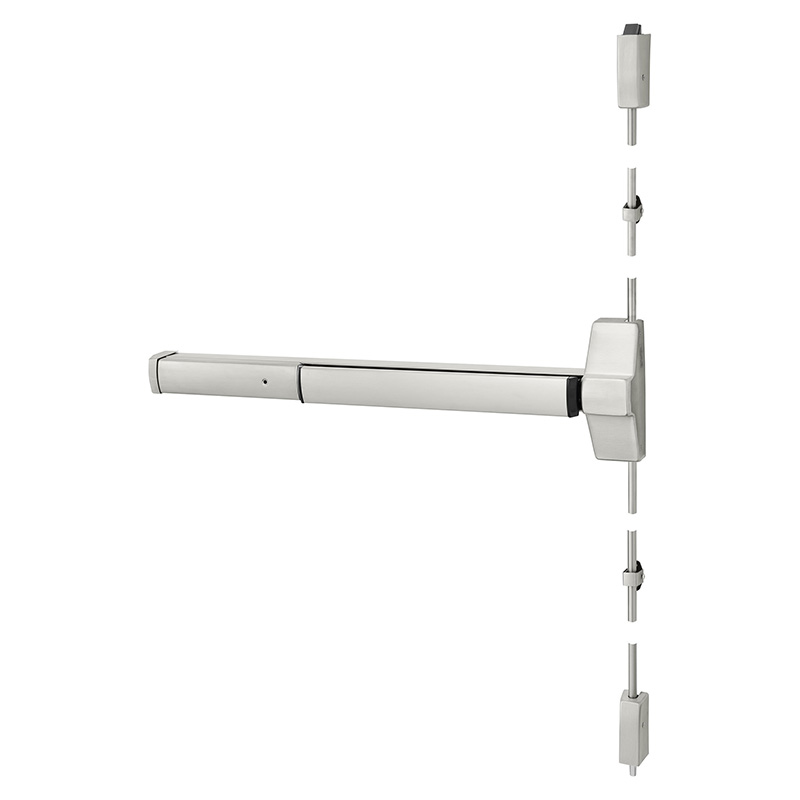

Corbin Russwin ED5400 630 Surface Vertical Rod Device offers a reliable and aesthetically pleasing solution for commercial exit requirements. Crafted from durable satin stainless steel, this 36-inch device is engineered to exceed ANSI/BHMA Grade 1 standards for strength and performance, ensuring optimal security in high-traffic areas. The ED5000 series features a modular construction design, allowing for easy installation and maintenance-free operation. This exit device is available in various configurations, including rim, mortise, surface vertical, and concealed vertical rod options, catering to diverse architectural needs. Additionally, it can be paired with the Museo® decorative levers and comes in 13 architectural finishes, enhancing the overall design appeal. Built with sustainability in mind, the ED5400 contains 61% post-consumer recycled content, contributing to LEED MR credit 4, and is also EPD certified. The device includes hex key dogging for added convenience and is reversible to accommodate different handing requirements. With a 5-year limited warranty, you can trust in its reliability and durability for years to come. Ideal for metal or wood doors with a thickness of 1 3/4 inches and widths ranging from 30 to 36 inches, this exit device meets the demands of both functionality and style.
Surface Vertical Rod Device
Surface Vertical Rod Exit Device, 36", Satin Stainless Steel
Over the past 100 years, Corbin Russwin has been well-known for weaving pleasing aesthetics and inventive designs into architectural door hardware, and today's wide stile exit device line is no exception. The ED5000 Series offers smooth lines in the exit device bar and a full range of trim designs with visual diversity, including the MusâÃŽo and Vineyard Collections.
Among the strongest, most durable exit devices on the market, with additional security options available.
The ED5000 is available in rim, mortise, surface vertical and concealed vertical rod configurations. These exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength.
Manufacturer surcharge: $ 0.0
Base Material: Stainless Steel
Commercial Residential: Commercial
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84 In.
Door Material: Metal or Wood
Door Thickness: 1 3/4 In.
Door Width: 30 In. - 36 In.
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Grade: Grade 1
Handing: Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Exit Only, Accepts Trim
Minimum Stile Size: 4-1/2 In.
Pack Height: 5.75"
Pack Length: 39.75"
Pack Qty: 1
Pack Volume: 2342.77 in³
Pack Width: 10.25"
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: ED5000 Series Pushpad Exit Devices
Ship Weight: 16.1 lbs.
Strike Bottom: 650F57-8
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 650F54-8
Type: Exit Devices
Unit of Measure: Each
