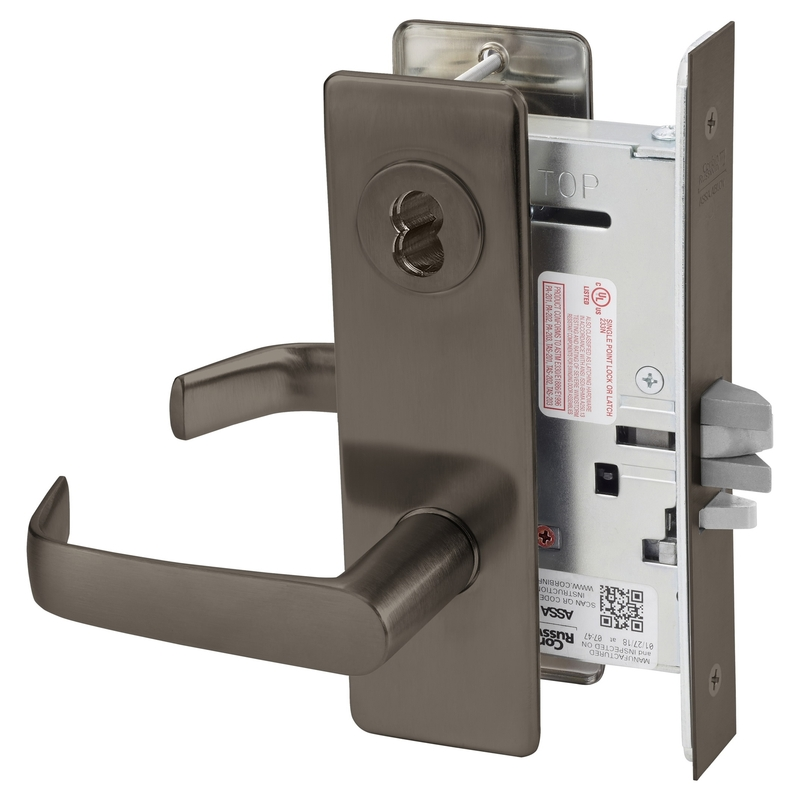

Corbin Russwin ML2002 NSM 613E CL6 KIT - Classroom Intruder Mortise Lock, Newport Lever, LFIC 6-Pin, Oil Rubbed BronzeCorbin Russwin ML2002 NSM 613E CL6 KIT is a robust classroom intruder mortise lock that combines functionality with exceptional security. Designed for high-traffic areas, this ANSI/BHMA Grade 1 lock features a durable heavy-gauge steel construction, ensuring it can withstand extensive use and potential abuse. The Newport lever, paired with M escutcheon trim, presents a sleek and modern aesthetic that fits seamlessly into any environment. This mortise lock is equipped with a 6-pin large format interchangeable core housing and an A01 Clover Cam, allowing for versatile keying options. Its field-reversible handing simplifies installation, enabling easy adjustments without disassembly. With a latchbolt throw of 3/4" and a maximum door thickness of 4", the ML2002 is versatile enough for various door types, including wood and hollow metal. Enhanced with direct drive performance, the lever operates smoothly, reducing wear over time. A unique status indicator provides clear visibility of the door's locked/unlocked status, making it an excellent choice for safety-conscious settings. The lock also integrates seamlessly with existing Corbin Russwin key systems and access control platforms, ensuring compatibility with your security infrastructure. Backed by a 10-year warranty, the Corbin Russwin ML2002 is designed to deliver both reliability and peace of mind.
KIT - Classroom Intruder Mortise Lock, Newport Lever with M Escutcheon Trim, 2 Each LFIC 6-Pin Large Format Interchangeable Core Mortise Housing, A01 Clover Cam, Less IC Cores, Handing is Field Reversible, ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML2002 NSM 613E CL6, ML2002NSM613ECL6
Ansi: A156.13, Series 1000
Baa Qualified: Yes
Base Series: ML2000
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 6-Pin, Less Core, LFIC - Corbin
Door Application: Mortise Locks
Door Thickness: 1-3/4"
Finish: 613E/US10BE
Finish Code: 613E
Finish Color: Dark Oxidized Satin Bronze
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom Intruder
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Design: Newport
Leverknob Design: NS - Newport Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Material: Cast
Of Keys: 2
Origin: USA
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Width: 7.5"
Pins: 6
Rose/ Escutcheon: M Escutcheon
Roseescutcheon Design: M Escutcheon
Series: ML2000
Ship Weight: 4 lbs.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
