Corbin Russwin ML2010 LSA 630 Passage Mortise Lock

Corbin Russwin ML2010 LSA 630 Passage Function Mortise Lock is engineered to excel in high-traffic environments, making it an exceptional choice for commercial, institutional, and industrial applications. This Grade 1 mortise lock features a robust construction of heavy-gauge steel, ensuring durability and reliability. The patented Quick Reversible latchbolt allows for easy re-handing without disassembly, providing versatility for any configuration. With a satin stainless steel finish, the ML2000 series suits various architectural styles while enhancing security. It accommodates standard door thicknesses of 1-3/4" and includes a 1" stainless steel deadbolt for added protection. The lockbody measures 5-7/8" x 4" x 15/16", with an armored front available in brass, bronze, or stainless steel, ensuring long-lasting performance. This lock meets stringent FF-H-106C federal specifications and includes a 10-year limited warranty, affirming its quality. With a fire rating of up to 3 hours, the ML2010 is ideal for offices, schools, hospitals, and hotels. The Lustra Lever design adds a touch of modern elegance, while the package includes two nickel silver keys for convenience. Upgrade your security with the Corbin Russwin ML2010 LSA 630, where functionality meets sophistication.

Passage Function Mortise Lock

Passage or Closet Mortise Lock, LS Lever, A Rose, Satin Stainless Steel

The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.

The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.

The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.

• Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
• Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available.
• Backset: 2-3/4" (70mm).

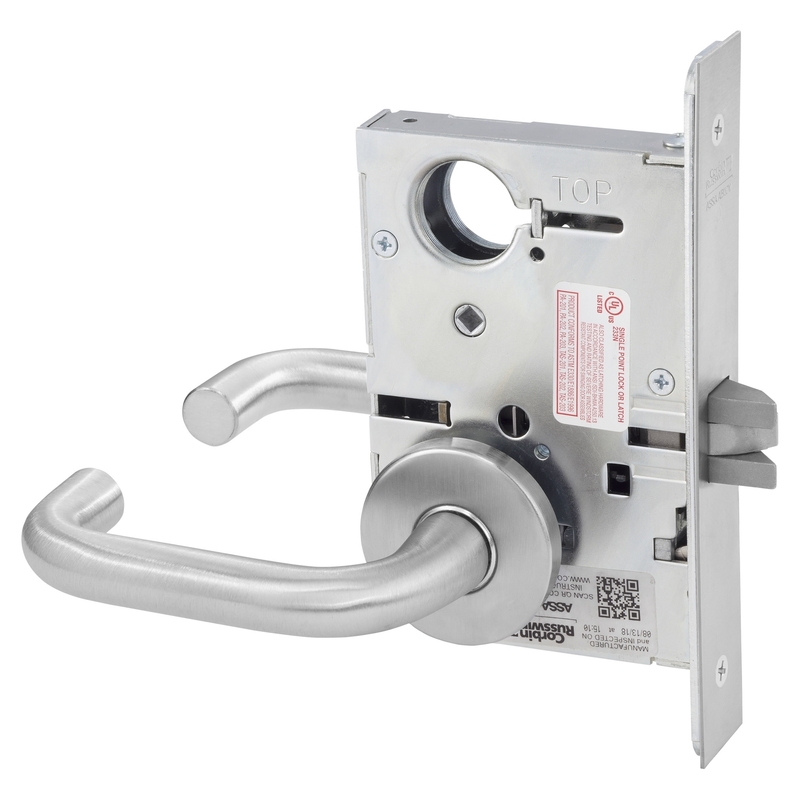

• Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance.
• Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
• Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
• Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
• Keys: Two nickel silver standard.
• Federal: Meets FF-H-106C.
• Environmental Product Declaration: (EPD) certified
