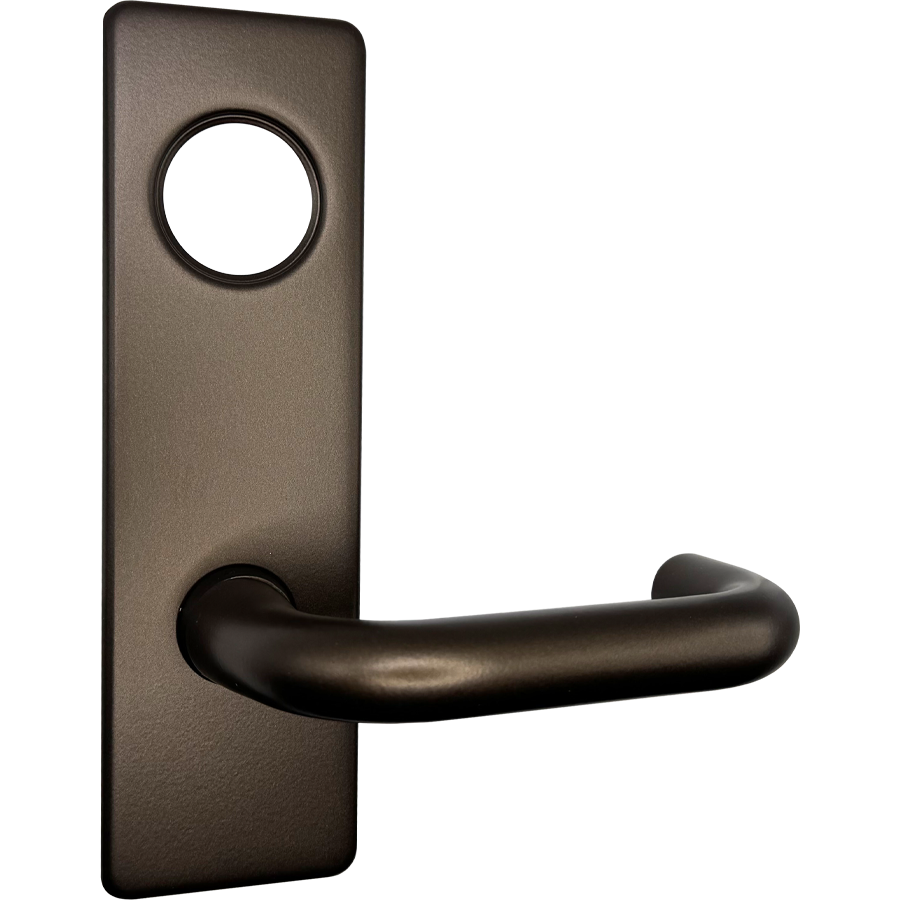

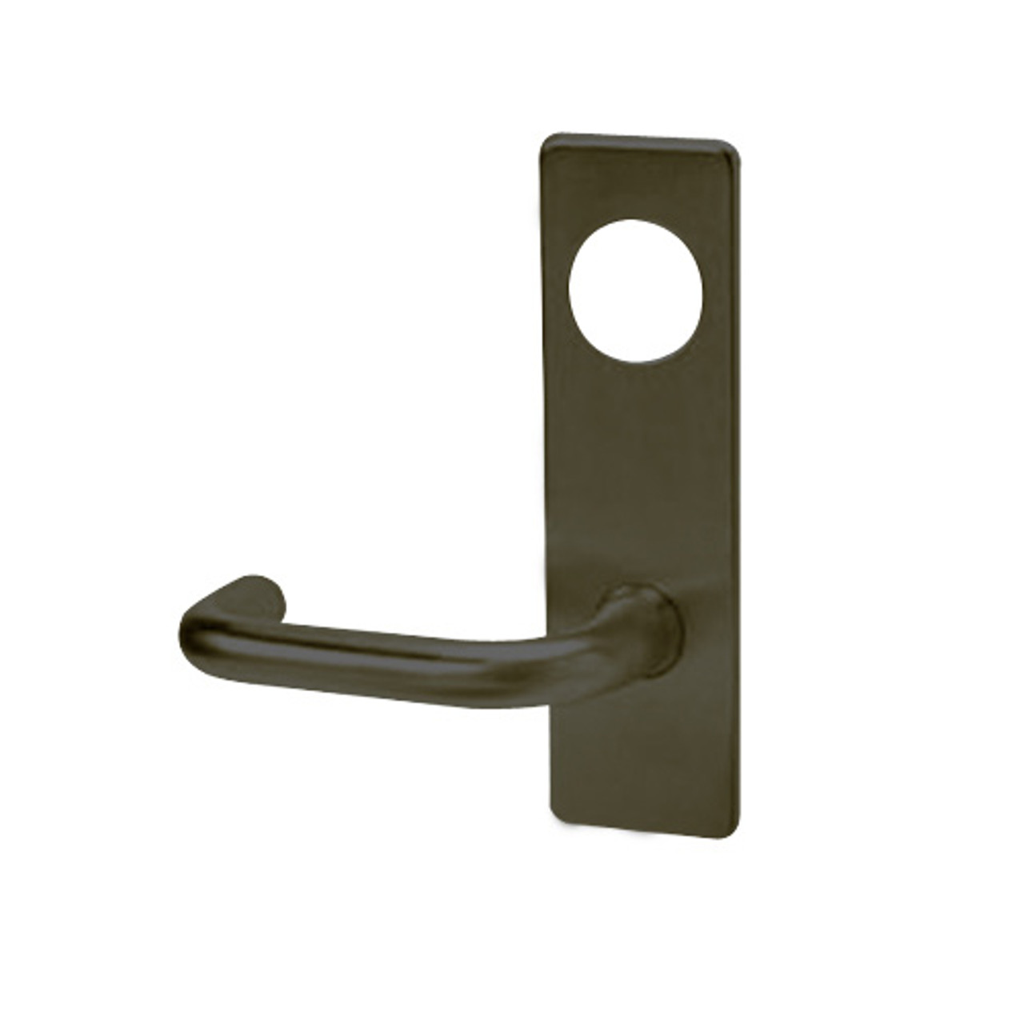

Corbin Russwin ML2010 LWM 613E D134 M31 Lustra Lever with M Escutcheon for ML2010, Field Reversible, Oil Rubbed Bronze

Corbin Russwin ML2010 LWM 613E D134 M31 Lustra Lever with M Escutcheon offers a robust solution for high-traffic environments. This mortise lock, part of the ML2000 Series, is built to meet ANSI/BHMA Grade 1 standards, ensuring exceptional durability and reliability. Its heavy-gauge steel construction is designed to withstand the rigors of constant use, making it ideal for commercial applications. One of the standout features is the field-reversible handing, allowing for easy installation and adjustment without disassembling the lock case. The direct drive performance ensures consistent torque and force during lever rotation, while the crisp lever return eliminates sagging, enhancing user experience. Additionally, the ML2010 integrates seamlessly with existing Corbin Russwin key systems and access control platforms. Available in Dark Oxidized Satin Bronze (613E), this lock also boasts various finishes and lever designs to suit different aesthetics. With options for occupancy indicators and energy-saving EcoFlex® technology, the ML2010 not only prioritizes security but also promotes sustainability. Specifications include a standard backset of 2 3/4", a 3/4" latchbolt throw, and compatibility with a range of door types, including wood and hollow metal. Backed by a ten-year limited warranty, the Corbin Russwin ML2010 LWM is a reliable choice for any secure space.

Lustra Lever with M Escutcheon for ML2010 Working Trim Only, Handing is Field Reversible, 613E/US10BE Oil Rubbed Bronze

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
