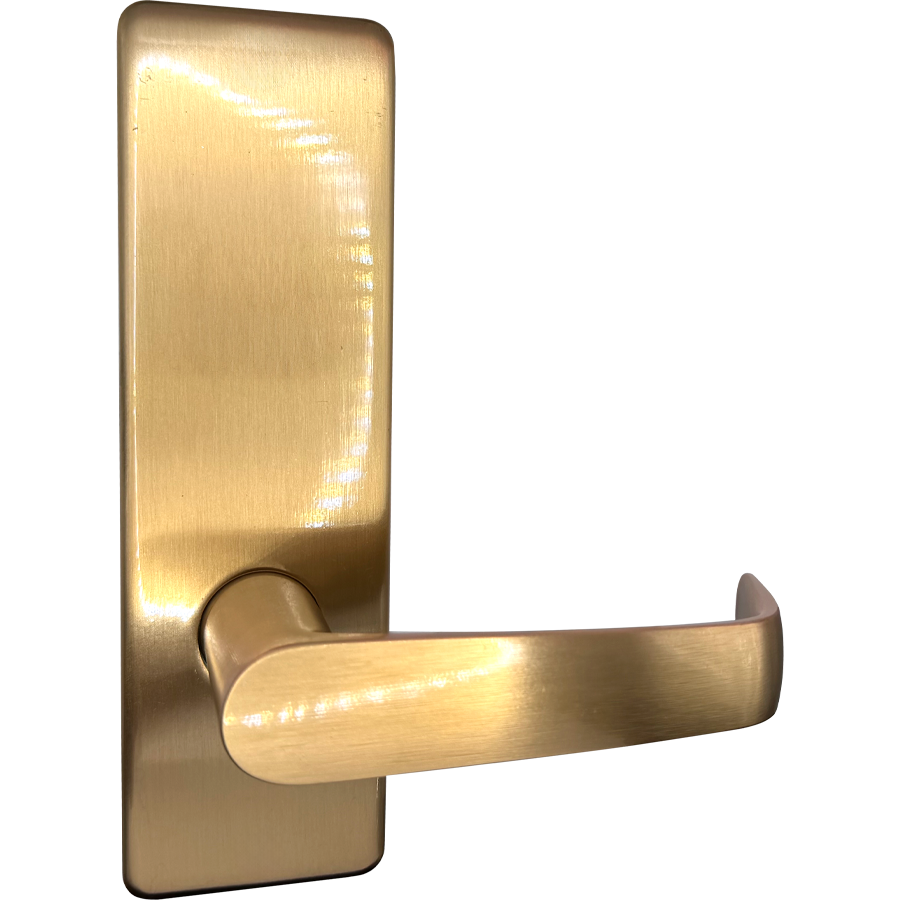

Corbin Russwin ML2010 NSM 612 D134 M31 Newport Lever with M Escutcheon, ML2010 Trim, Reversible, Satin Bronze

Corbin Russwin ML2010 NSM 612 D134 M31 Newport Lever with M Escutcheon offers a robust solution for high-traffic environments, designed with the utmost reliability and versatility. This mortise lock, part of the esteemed ML2000 Series, meets the rigorous ANSI/BHMA Grade 1 standards, ensuring exceptional durability in the face of wear and tear. Constructed from heavy-gauge steel, the ML2010 features a direct drive performance mechanism, ensuring consistent torque and force during lever operation while eliminating any sag. The lever return is crisp and firm, enhancing user experience. This model is field reversible, allowing for easy handing adjustments without disassembling the lock case. Key highlights include compatibility with a wide range of trim options and functions, including mechanical and electrified configurations. The lock also integrates seamlessly with existing Corbin Russwin key systems and access control platforms, making it a flexible choice for various applications. Additionally, EcoFlex®️ technology promotes energy savings, contributing to a sustainable choice for any building. With a satin bronze finish and a ten-year limited warranty, the Corbin Russwin ML2010 NSM lever lock is not just a secure entry solution; it's a smart investment for both building professionals and discerning homeowners.

Newport Lever with M Escutcheon for ML2010 Working Trim Only, Handing is Field Reversible, 612/US10 Satin Bronze

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
