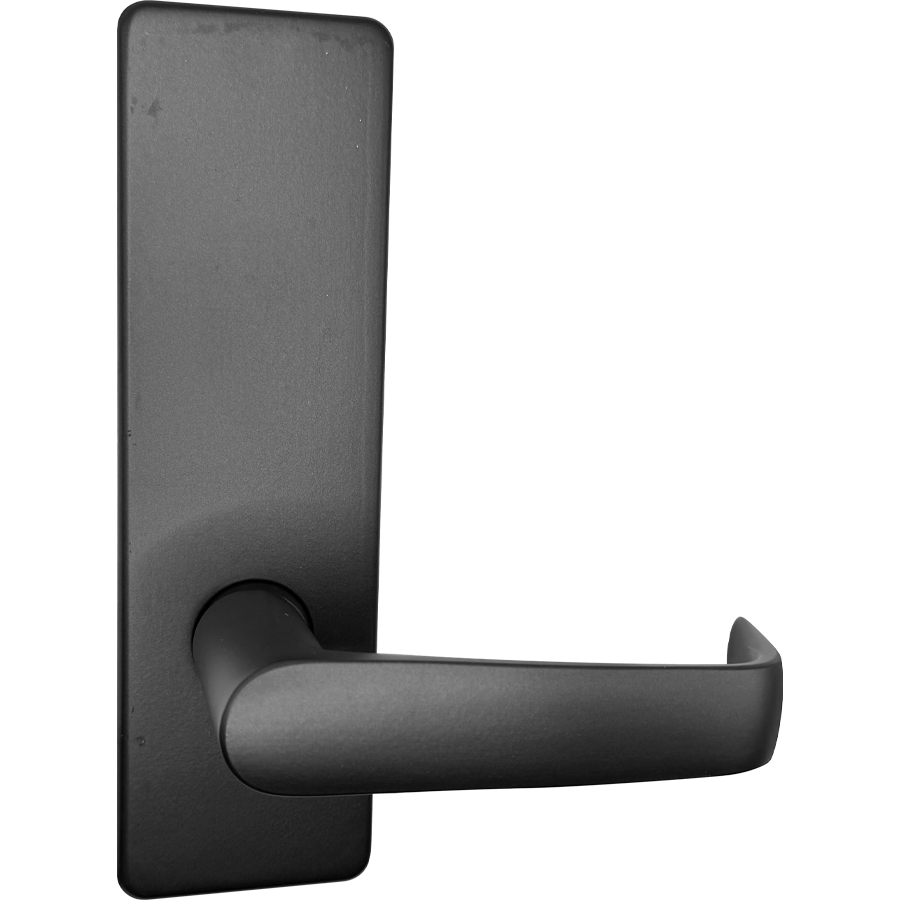

Corbin Russwin ML2010 NSM BSP D134 M31 Newport Lever with M Escutcheon, ML2010 Trim, Reversible, Black Suede Coat

Corbin Russwin ML2010 NSM BSP D134 M31 Newport Lever with M Escutcheon offers a robust solution for high-traffic environments where security and reliability are paramount. Designed as part of the ANSI/BHMA Grade 1 ML2000 Series, this mortise lock is crafted from heavy-gauge steel, ensuring durability against the rigors of daily use. The field-reversible handing allows for quick adjustments without the need to disassemble the lock, providing flexibility for various installation requirements. Featuring a striking black suede powder coat finish (BSP), the Newport lever combines aesthetic appeal with functional excellence. The direct drive performance guarantees consistent torque and force during lever operation, while the crisp lever return eliminates sagging, enhancing usability. With a variety of mechanical and electrified functions available, including passage, this lock integrates seamlessly with existing Corbin Russwin key systems and access control platforms. Additional benefits include an impressive ten-year warranty and EcoFlex® technology that promotes energy efficiency. Suitable for doors with a thickness ranging from 1 3/8" to 4", the ML2010 ensures compatibility across a range of applications, including bullet-resistant doors. Choose the Corbin Russwin ML2010 for a secure, stylish, and sustainable locking solution tailored to meet demanding security needs.

Newport Lever with M Escutcheon for ML2010 Working Trim Only, Handing is Field Reversible, 622/US19/BSP Black Suede Powder Coat

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
