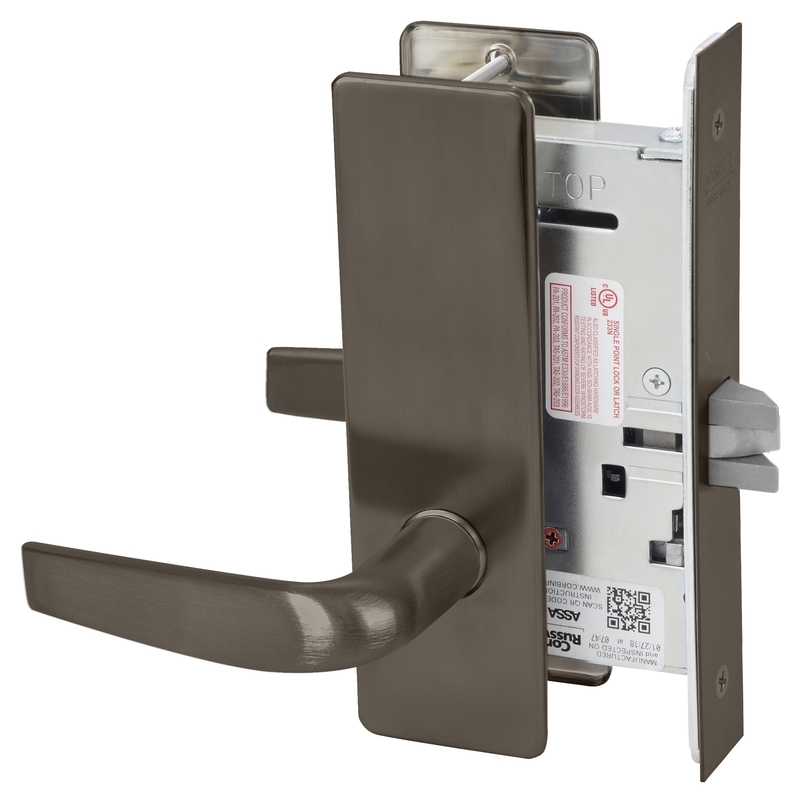

Corbin Russwin ML2010CSM613 Passage Mortise Lock with Citation Lever and M Escutcheon features a striking oil-rubbed bronze finish that combines durability with an elegant design, making it an excellent choice for both commercial and residential applications. This mechanical lockset is part of the ML2000 Series, renowned for its reliability and secure functionality. Designed to accommodate doors with a thickness of 1-3/4", the ML2010CSM613 comes with a 2-3/4" backset and a robust ANSI straight lip strike measuring 1-1/4" x 4-7/8". The lockset is equipped with a 4-3/8" Citation lever that has a comfortable grip and a 2-5/8" projection, enhancing ease of use without sacrificing style. The M escutcheon adds a sophisticated touch, with dimensions of 2-1/4" x 7-1/2". With a limited 10-year warranty, this passage lock ensures long-lasting performance and peace of mind. Additionally, it is UL and cUL listed for positive pressure, confirming its safety and reliability in various building environments. Whether you require a secure entrance to an office or a stylish addition to a home, the Corbin Russwin ML2010CSM613 is designed to meet your needs.
Passage Mortise Lock with Citation Lever and M Escutcheon Oil Rubbed Bronze Finish
Ansi Function: F01 - Passage
Baa Qualified: Yes
Backset: 2 3/4" Backset
Bolt Protection: 3/4" Latchbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Design: Citation Lever
Dimension: 4-3/8" Lever with 2-5/8" Projection and 2-1/4" x 7-1/2" Escutcheon
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 3 Hours {A}
Function: 10-Passage or Closet
Grade: Grade 1
Hand: Field Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: CS - Citation
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: M - Escutcheon
Screws: Combination
Series: ML2000 Series
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL - UL10C Positive Pressure
