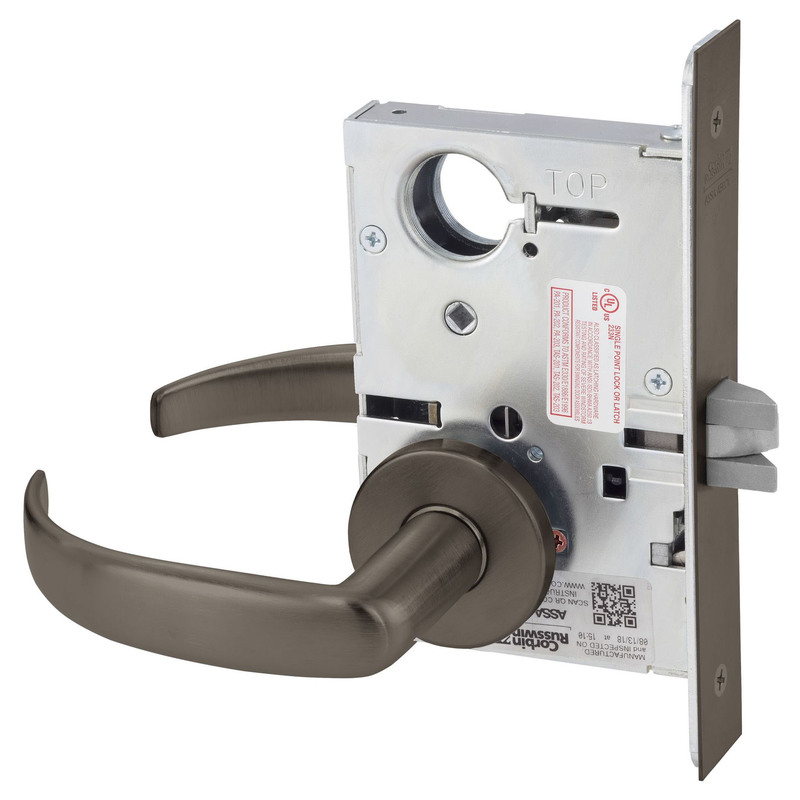

Corbin Russwin ML2010PSA613 Passage Mortise Lock with Princeton Lever and A Rose in an Oil Rubbed Bronze Finish combines style and functionality for commercial applications. Designed for doors with a thickness of 1-3/4", this lockset features a 2-3/4" backset, ensuring a secure fit that meets the demands of high-traffic environments. The elegant Princeton lever design pairs beautifully with the 2-1/4" rose, offering a sophisticated touch while maintaining durability. With a 5-1/4" lever length and a projection of 2-1/2", it provides ease of use without sacrificing aesthetics. The lockset operates as a passage function, allowing for seamless entry without the need for a key, making it ideal for interior doors. Constructed to last, the ML2010PSA613 is backed by a limited 10-year warranty, assuring you of its reliability. This mortise lockset also features an ANSI straight lip strike with dimensions of 1-1/4" x 4-7/8", ensuring a secure latch engagement. Additionally, it is UL and cUL listed for positive pressure, further enhancing its safety profile. Upgrade your door hardware with the Corbin Russwin ML2010PSA613, where quality meets elegant design for superior performance.
Passage Mortise Lock with Princeton Lever and A Rose Oil Rubbed Bronze Finish
Ansi Function: F01 - Passage
Baa Qualified: Yes
Backset: 2 3/4" Backset
Bolt Protection: 3/4" Latchbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Design: Princeton Lever
Dimension: 5-1/4" Lever with 2-1/2" Projection and 2-1/4" Rose
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 3 Hours {A}
Function: 10-Passage or Closet
Grade: Grade 1
Hand: Field Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: PS - Princeton
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: A - Rose
Screws: Combination
Series: ML2000 Series
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL - UL10C Positive Pressure
