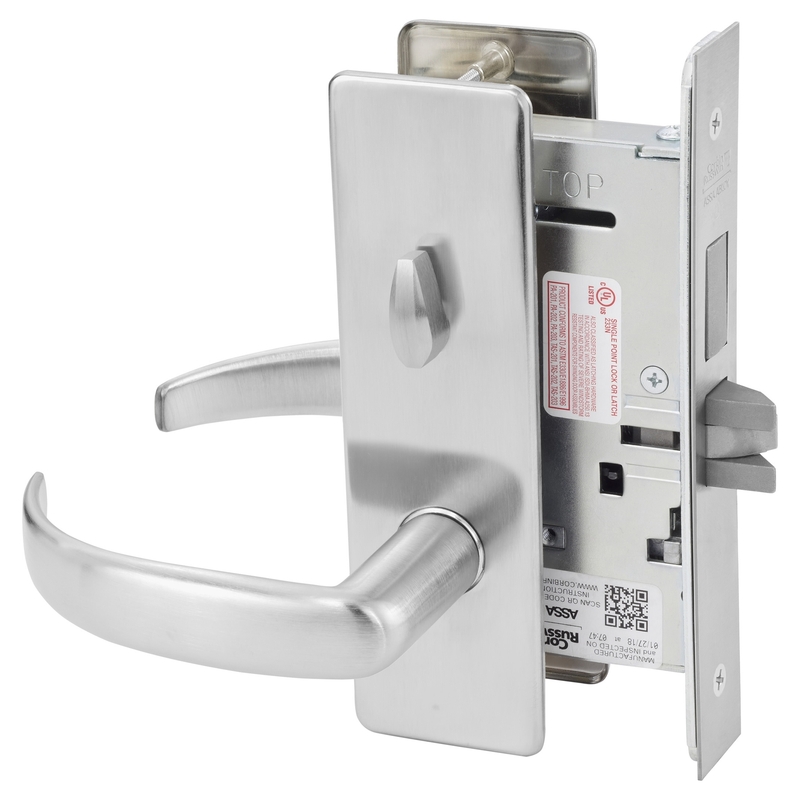

Corbin Russwin ML2020 PSM 626 Privacy Mortise Lock

Corbin Russwin ML2020 PSM 626 Privacy Mortise Lock offers robust security and functionality, making it an ideal choice for high-traffic environments such as offices, schools, and hospitals. This Grade 1 mortise lock is crafted from heavy-gauge steel, ensuring durability under demanding conditions. The lock features a unique quick reversible latchbolt, allowing for easy re-handing without disassembly, which simplifies installation and maintenance. Designed to accommodate standard door thickness of 1-3/4" (44mm) with an optional wider profile, the ML2020 provides a secure 1" stainless steel deadbolt and a 5/8" x 1" latchbolt for enhanced protection. Its heavy-duty lockcase measures 5-7/8" x 4" x 15/16", and the armored front is available in brass, bronze, or stainless steel for added security. Not only does the ML2020 comply with ADA and federal standards, but it also comes with a 10-year limited warranty, highlighting its reliability. The satin chrome finish (626/US26D) adds a modern touch, while the PS lever design ensures ease of use. With a fire rating of 3 hours, this lock combines safety with style, making it a trusted solution for privacy in bedrooms and bathrooms. Choose the Corbin Russwin ML2020 for peace of mind and exceptional performance.

Privacy Mortise Lock

Privacy, Bedroom or Bathroom Mortise Lock, PS Lever, M Escutcheon, Satin Chrome

The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.

The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.

The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.

• Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
• Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available.
• Backset: 2-3/4" (70mm).
• Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance.
• Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
• Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
• Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
• Keys: Two nickel silver standard.
• Federal: Meets FF-H-106C.
• Environmental Product Declaration: (EPD) certified
