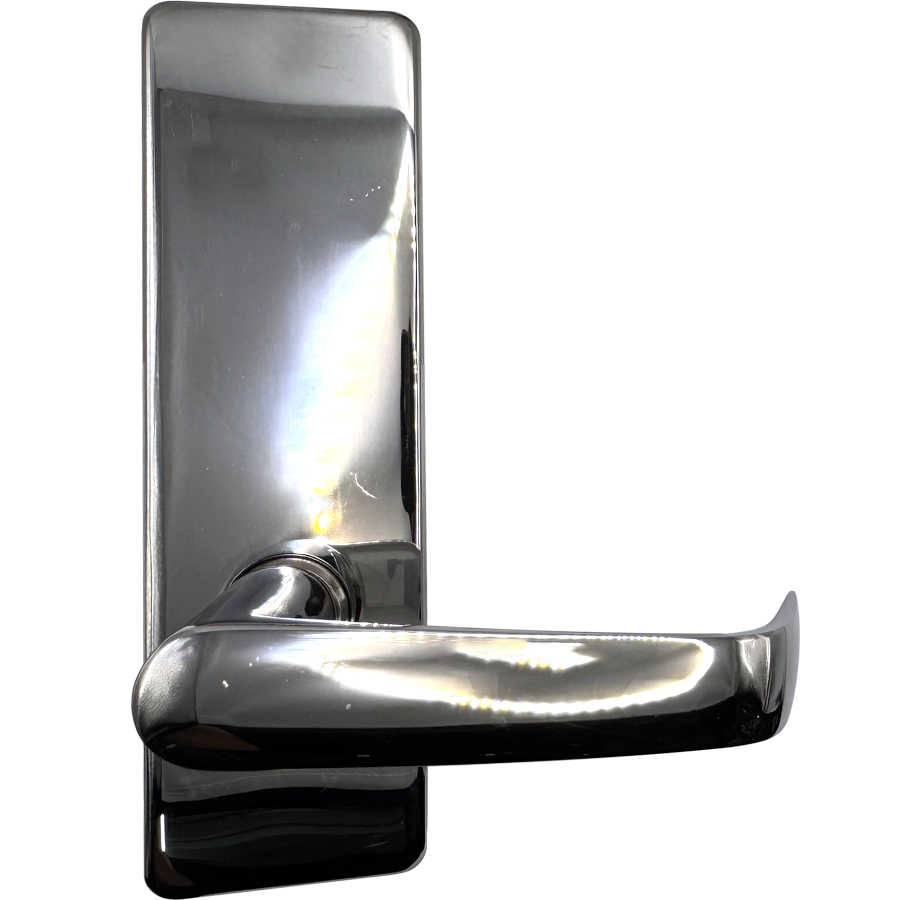

Corbin Russwin ML2030 NSM 625 D134 M31 Newport Lever with M Escutcheon for ML2030, Field Reversible, Bright Chrome

Corbin Russwin ML2030 NSM 625 D134 M31 Newport Lever offers a robust solution for high-traffic environments, featuring ANSI/BHMA Grade 1 construction. Designed for durability, this mortise lock is built from heavy-gauge steel and incorporates a patented design that ensures reliable performance. The lever return is crisp and firm, effectively eliminating sag, while the direct drive mechanism guarantees consistent torque during operation. The ML2000 Series supports a wide range of applications with its field-reversible handing, allowing for easy reconfiguration without disassembly. It is compatible with numerous trim options and offers up to 63 mechanical and electrified functions, making it versatile for various settings. The lock's status indicators provide clear visibility of locked/unlocked status, enhancing user awareness. This model is available in a striking Bright Chrome finish, adding an aesthetic appeal to any door. With a standard backset of 2 3/4" and suitable for doors ranging from 1 3/8" to 4" thick, it caters to diverse door applications, including wood and hollow metal. Additionally, the ML2030 comes with a ten-year warranty, ensuring peace of mind for building professionals and homeowners alike. Experience the blend of security, functionality, and design with the Corbin Russwin ML2030 Newport Lever.

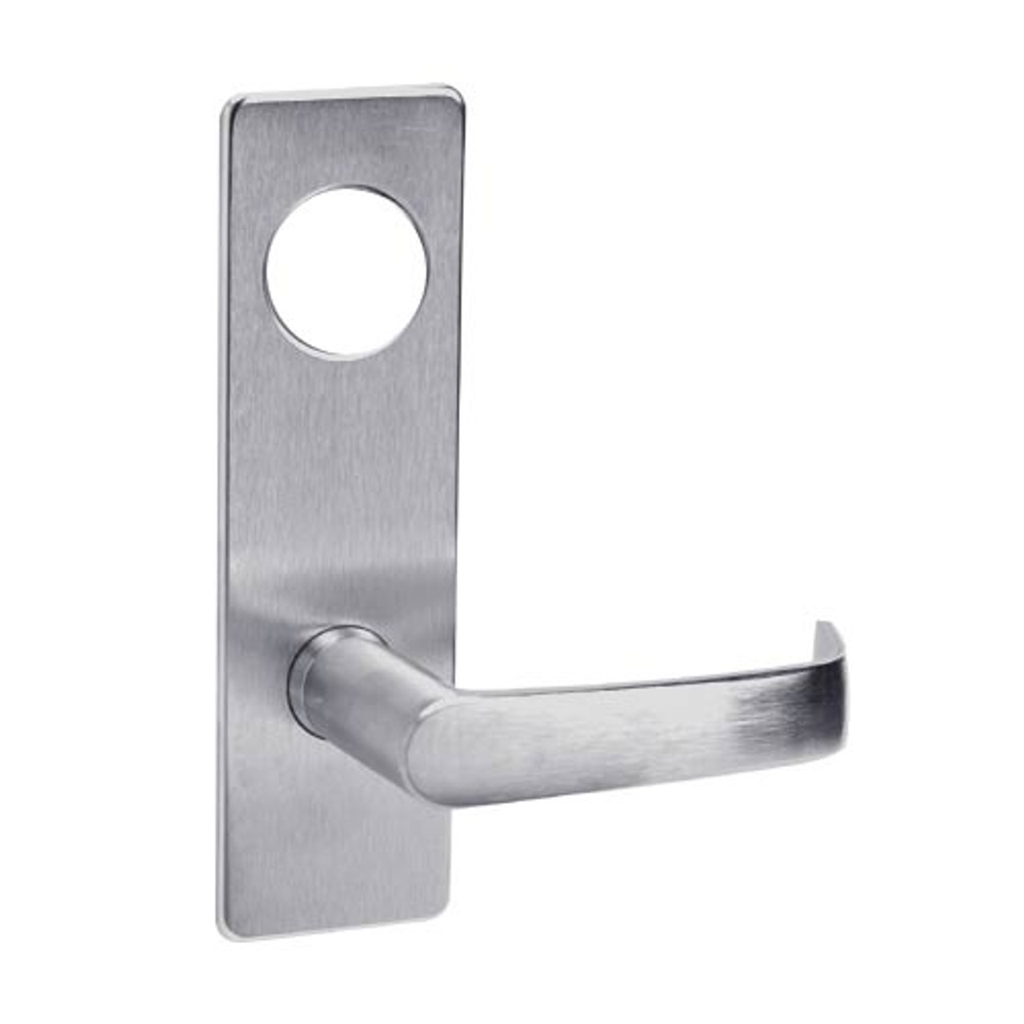

Newport Lever with M Escutcheon for ML2030 Working Trim Only, Handing is Field Reversible, 625/US26 Bright Chrome

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
