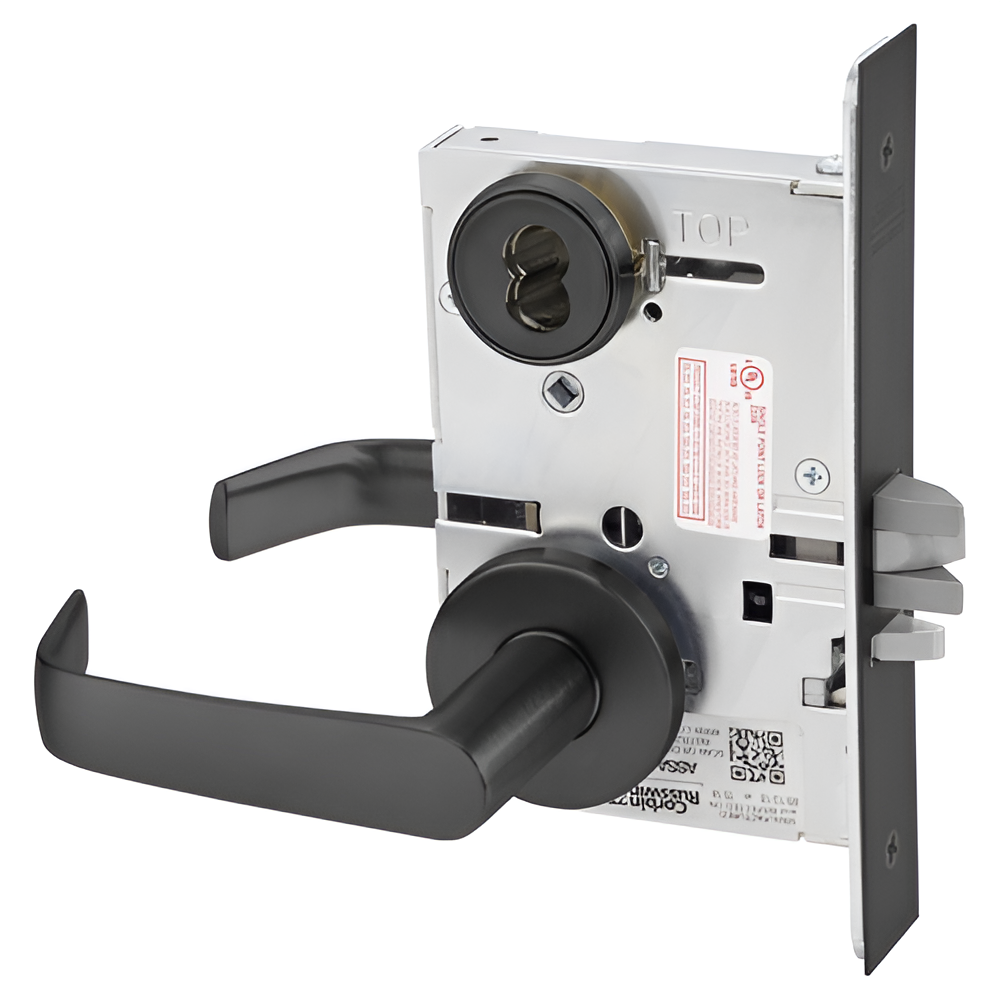

Corbin Russwin ML2032 NSA BSP CL6 KIT is a robust institution mortise lock designed for high-traffic environments. This lock features the elegant Newport lever with an A Rose trim, ensuring both functionality and style. Constructed from heavy-gauge steel, the ML2000 Series meets ANSI/BHMA Grade 1 standards, making it a reliable choice for demanding applications. Equipped with a field-reversible handing mechanism, this lock allows for easy installation and adaptability without the need for disassembly. The direct drive performance guarantees consistent torque during lever rotation, while the crisp lever return eliminates sag, ensuring a smooth user experience. The lock's compatibility with a range of trim options and functions, including integration with existing Corbin Russwin key systems, enhances its versatility. The ML2032 also features an ANSI strike SS118 and is finished in a durable black suede powder coat (BSP), providing both aesthetics and protection. With a latchbolt throw of ¾ inch and the ability to accommodate door thicknesses from 1 3/8 inches to 4 inches, this lock is suitable for various door types, including wood and hollow metal. Backed by a ten-year warranty, the Corbin Russwin ML2032 stands as a secure and sustainable choice for any institution.

KIT - Institution Mortise Lock, Newport Lever with A Rose Trim, 2 Each LFIC 6-Pin Large Format Interchangeable Core Mortise Housing, A01 Clover Cam, Less IC Cores, Handing is Field Reversible, ANSI Strike SS118, 622/US19/BSP Black Suede Powder Coat

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
