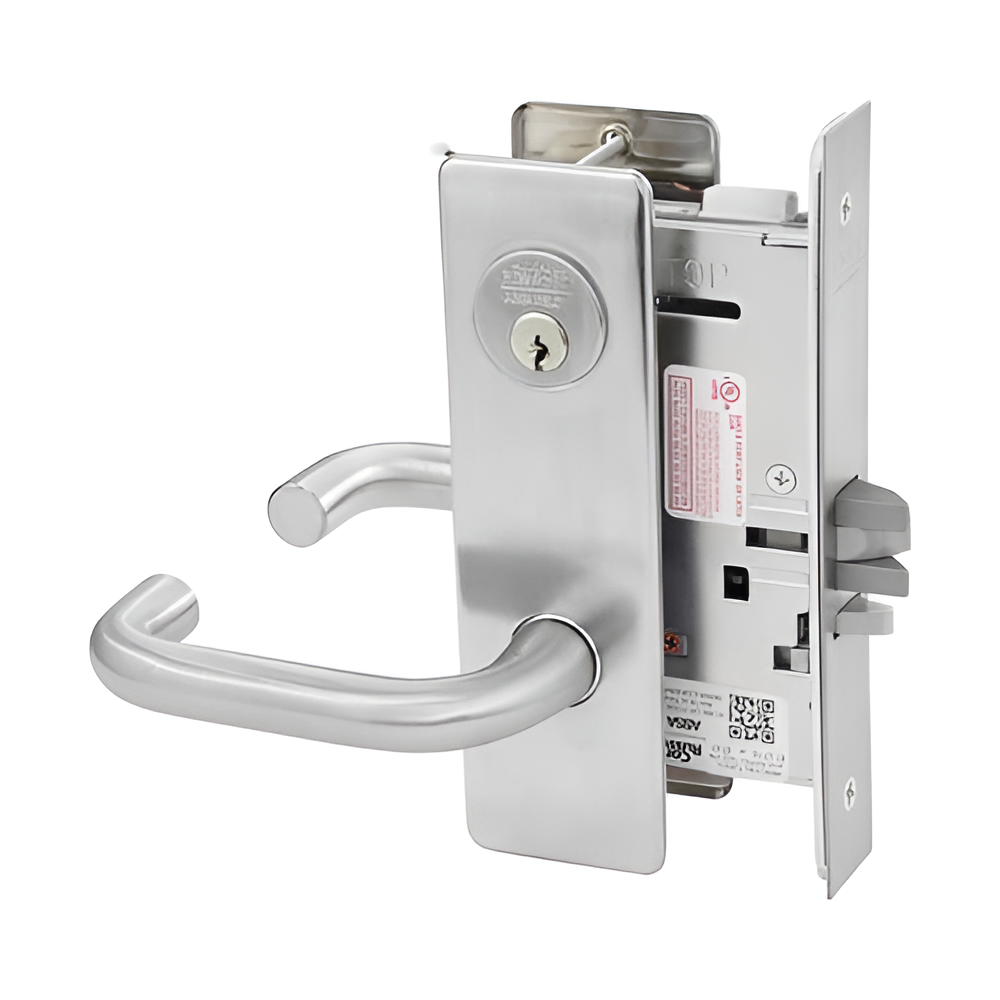

Corbin Russwin ML2042 LWM 626 L4 KIT is an entrance or public restroom mortise lock designed for both durability and security in high-traffic environments. This ANSI/BHMA Grade 1 lock features the Lustra lever paired with M Escutcheon trim, ensuring a sophisticated appearance while maintaining functionality. The kit includes two standard 1-1/8" mortise cylinders, with an A01 Clover cam for the outside and an A02 standard Yale style cam for the inside, both utilizing the L4 keyway. Engineered with heavy-gauge steel, the ML2000 Series lock is built to withstand intrusion attempts and daily abuse, making it ideal for commercial settings. The direct drive performance ensures consistent torque during operation, while the crisp, firm lever return eliminates sag. With a field-reversible handing, this lock offers flexibility for various door configurations without the need for disassembly. The satin chrome finish (626/US26D) not only enhances its aesthetic appeal but also provides added longevity. It integrates seamlessly with existing Corbin Russwin key systems, ensuring reliable access control. Backed by a ten-year limited warranty, the ML2042 LWM lock is a sound investment for any facility that prioritizes safety and efficiency.

KIT - Entrance or Public Restroom Mortise Lock, Lustra Lever with M Escutcheon Trim, 2 Each Standard 1-1/8 Mortise Cylinders, A01 Clover Cam Outside, A02 Standard Yale Style Cam Inside, L4 Keyway 0-Bit, Handing is Field Reversible, ANSI Strike SS118, 626/US26D Satin Chrome

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
