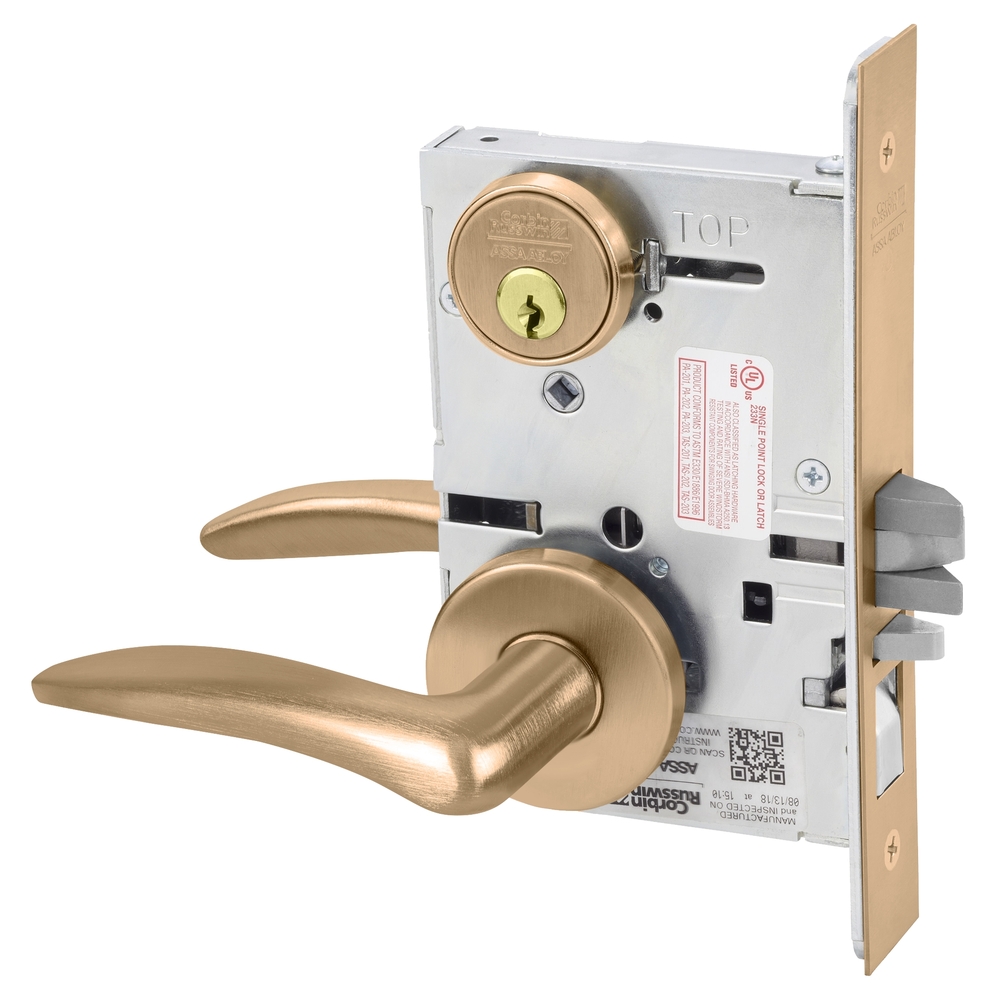

Corbin Russwin ML2051 DSA 612 LH Office Mortise LockCorbin Russwin ML2051 DSA 612 LH Office Mortise Lock offers superior security and functionality, making it an ideal choice for high-traffic environments such as offices, schools, hospitals, and hotels. This Grade 1 mortise lock is constructed from heavy-gauge steel, ensuring durability and longevity, and features a patented Quick Reversible latchbolt along with a robust 1" stainless steel deadbolt for enhanced security. Designed for ease of use, the ML2051 allows for quick re-handing without disassembly, accommodating doors with a standard thickness of 1-3/4". The lock case measures 5-7/8" x 4" x 15/16", and it can be equipped with an optional non-ferrous lock case for additional corrosion resistance. The stylish DS lever design combined with an A rose trim in a satin bronze finish adds an elegant touch to any entrance. This lock meets FF-H-106C federal specifications and is EPD certified, ensuring compliance with environmental standards. Backed by a 10-year limited warranty, the Corbin Russwin ML2051 is not just a secure locking solution; it’s a reliable investment in safety and accessibility. With two nickel silver keys included, this mortise lock is ready to enhance your building's security.
Office Mortise Lock
Entrance or Office Mortise Lock, DS Lever, A Rose, Satin Bronze
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4" (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
- Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F04 - Entry/Office
Application: Complete Lock
Baa Qualified: Yes
Base Material: Bronze
Bolt Projection: 3/4" Latchbolt
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4"
Finish: 612/US10
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office
Grade: Grade 1
Handing: LH
Keying: 0 Bitted
Keys: Blank
Leverknob Design: DS - Dirke Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Of Keys: 2
Origin: USA
Pack Qty: 1
Pins: 6
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Keyway: L4
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
