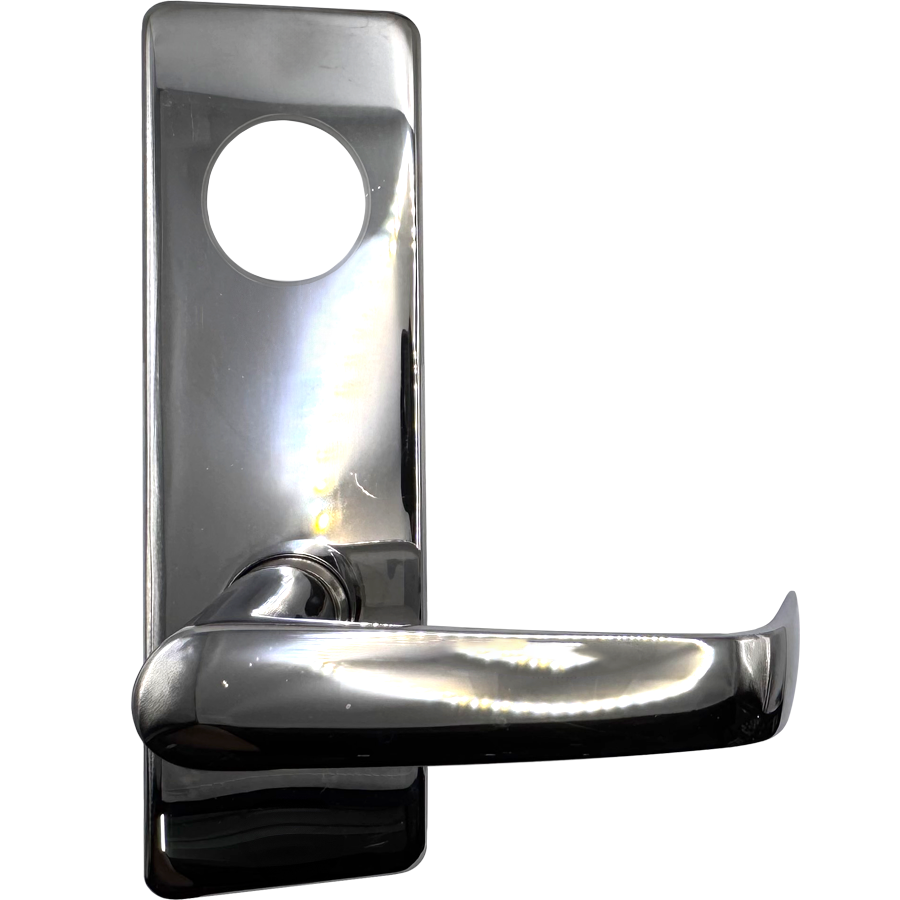

Corbin Russwin ML2051 NSM 625 D134 M31 Newport Lever ML2051 M Escutcheon Trim Only, Field Reversible, Bright Chrome

Corbin Russwin ML2051 NSM 625 D134 M31 Newport Lever is a premier choice for high-traffic environments, engineered with durability in mind. This working trim only lever operates seamlessly in demanding conditions, thanks to its robust construction from heavy-gauge steel. The ML2000 Series mortise lock is ANSI/BHMA Grade 1 rated, ensuring it exceeds rigorous performance standards. One of the standout features of the ML2051 is its innovative direct drive performance, which guarantees consistent torque and force during lever rotation. The crisp return of the lever eliminates any sag, enhancing its usability. Additionally, the lock is field reversible, allowing for easy re-handling without disassembly. Versatility is another key benefit, as this lock integrates effortlessly with a wide array of Corbin Russwin key systems, including high-security options. With 63 mechanical and electrified functions available, it meets diverse security needs while offering eco-friendly benefits through EcoFlex®️ technology. This product is designed for standard door applications, accommodating thicknesses from 1 3/8" to 4" and backsets from 2 3/8" to 2 3/4". Available in a striking Bright Chrome finish, the ML2051 is not only secure but also enhances aesthetic appeal. Backed by a ten-year limited warranty, it's an investment in lasting security and style.

Newport Lever ML2051 with M Escutcheon Working Trim Only, Field Reversible, 625/US26 Bright Chrome

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
