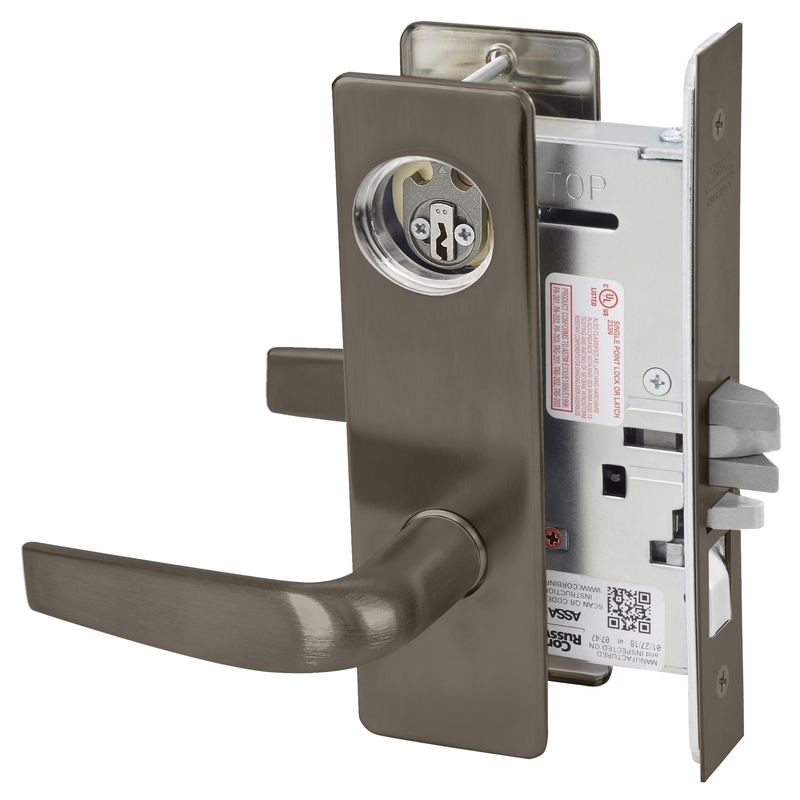

Corbin Russwin ML2051CSM613LC Single Cylinder Office Mortise Lock combines security and style, making it an excellent choice for commercial applications. Featuring a sleek Citation Lever and M Escutcheon design, this lockset is crafted from durable wrought brass and finished in an elegant oil-rubbed bronze (613). Its robust construction ensures long-lasting performance, supported by a limited 10-year warranty. Designed for doors with a thickness of 1-3/4 inches, this mortise lock includes a 2-3/4 inch backset, accommodating various door types. The lockset is easy to operate with a 4-3/8 inch lever that has a 2-5/8 inch projection, ensuring accessibility while maintaining a sophisticated look. The ANSI straight lip strike measures 1-1/4 inches by 4-7/8 inches, providing a secure fit. The Corbin Russwin ML2000 Series is UL and cUL listed, meeting rigorous safety standards for positive pressure applications. This lock is ideal for office environments, where both security and aesthetic appeal are paramount. With its combination of high-quality materials, meticulous design, and reliable functionality, the ML2051CSM613LC is a top-tier choice for discerning professionals looking to enhance their spaces.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F04 - Entry/Office
Application: Complete Lock
Baa Qualified: Yes
Backset: 2 3/4" Backset
Base Material: Bronze
Bolt Projection: 3/4" Latchbolt
Bolt Protection: 3/4" Latchbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Design: Citation Lever and M Escutcheon
Dimension: 4-3/8" Lever with 2-5/8" Projection and 2-1/4" x 7-1/2" Escutcheon
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: CS - Citation
Leverknob Design: CS - Citation
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
Material: Wrought Brass
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Rose Escutcheon Design: M - Escutcheon
Roseescutcheon Design: M - Escutcheon
Screws: Combination
Series: ML2000 Series
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise
Type: Mechanical Commercial Locksets
Ul Listing Type: UL and cUL - UL10C Positive Pressure
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
