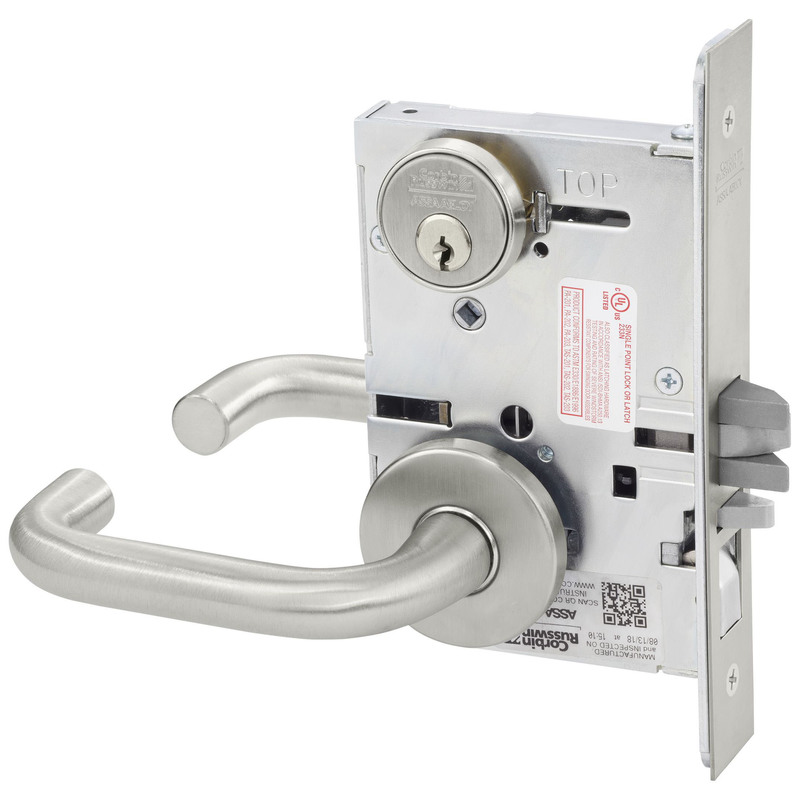

Corbin Russwin ML2051LWA630 Single Cylinder Office Mortise Lock features a robust design tailored for commercial applications. Crafted from durable wrought brass, this lockset ensures longevity and reliable performance. The satin stainless steel finish not only enhances its aesthetic appeal but also provides resistance to wear and corrosion, making it an ideal choice for high-traffic areas. With a backset of 2 3/4 inches, the ML2000 Series lock accommodates doors ranging from 1-3/4 inches thick. Its 5-1/8 inch wrought Lustra lever offers a comfortable grip, while the A Rose escutcheon design adds a touch of elegance. The lock is equipped with a 6-pin L4 keyway, providing enhanced security and key control. The ANSI straight lip strike ensures a secure fit, and the UL and cUL listing guarantees compliance with safety standards for positive pressure environments. Additionally, the lock comes with a limited 10-year warranty, underscoring its quality and reliability. Whether you are upgrading your office hardware or outfitting a new building, the Corbin Russwin ML2051LWA630 is an excellent choice for security and style. With its combination of strength, functionality, and sleek design, it meets the demands of modern commercial spaces.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ML2051-LWA-630, ML2051LWA630
Ansi Function: F04 - Entry/Office
Application: Complete Lock
Baa Qualified: Yes
Backset: 2 3/4" Backset
Base Material: Stainless Steel
Bolt Projection: 3/4" Latchbolt
Bolt Protection: 3/4" Latchbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Conventional Cylinder
Design: Wrought Lustra Lever and A Rose
Dimension: 5-1/8" Lever with 2-1/2" Projection and 2-1/4" Rose
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Satin Stainless Steel
Finish Code: 630
Finish Description: Satin Stainless Steel
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Keying: 0 Bitted
Keys: Blank
Keyway: L4
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: LW - Lustra
Leverknob Design: LW - Lustra Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
Material: Wrought Brass
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Pins: 6
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series
Std Keyway: L4
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL - UL10C Positive Pressure
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
