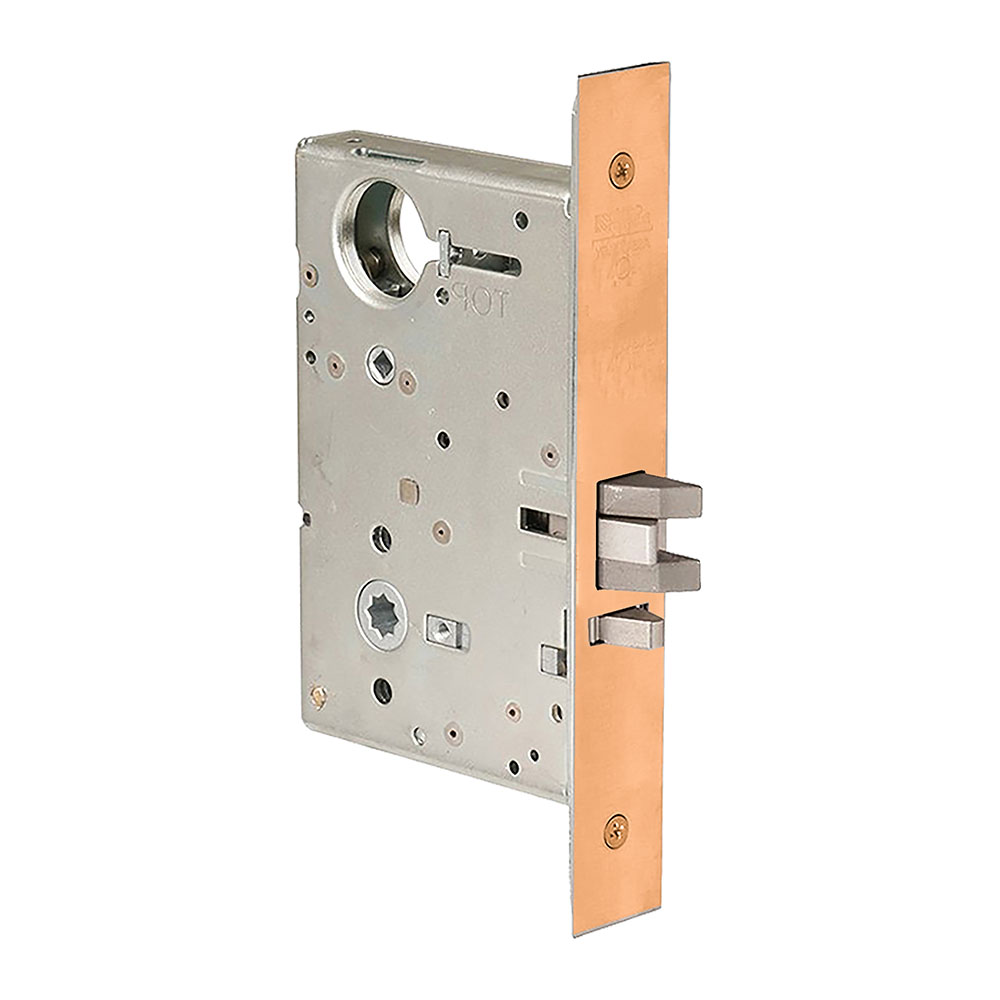

Corbin Russwin ML2053 LL 612 Mortise Lock Body for EntranceCorbin Russwin ML2053 LL 612 Entrance Mortise Lock Body offers a robust solution for high-traffic environments, designed specifically for commercial, institutional, industrial, and government applications. This Grade 1 mortise lock is constructed from heavy-gauge steel, ensuring durability and longevity even under the most demanding conditions. The ML2000 series features a patented quick reversible latchbolt along with a 1" stainless steel deadbolt, providing enhanced security and ease of use. The lock's versatility is further highlighted by its compatibility with a wide range of trim designs and functions, making it suitable for offices, schools, hospitals, and hotels. With a 10-year limited warranty, you can trust in its reliability. Designed for standard door thicknesses of 1-3/4" and a backset of 2-3/4", the lock body measures 5-7/8" x 4" x 15/16". The heavy-gauge steel lockcase and optional non-ferrous construction offer corrosion resistance, while the armored front and security Torx® screws enhance its integrity. Rated for 3 hours of fire resistance and compliant with FF-H-106C federal standards, the ML2053 LL ensures safety without compromising style. Choose Corbin Russwin for a dependable locking solution tailored to meet the needs of today’s demanding environments.
Entrance Mortise Lock Body
Entrance or Office Mortise Lockbody Only, Satin Bronze
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4" (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
- Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Application: Lockbody Only
Baa Qualified: Yes
Base Material: Bronze
Bolt Projection: 3/4" Latchbolt
Country of origin: USA
Door Thickness: 1-3/4"
Finish: 612/US10
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 53-Entrance or Office
Grade: Grade 1
Handing: Field Reversible
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Origin: USA
Pack Qty: 1
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
