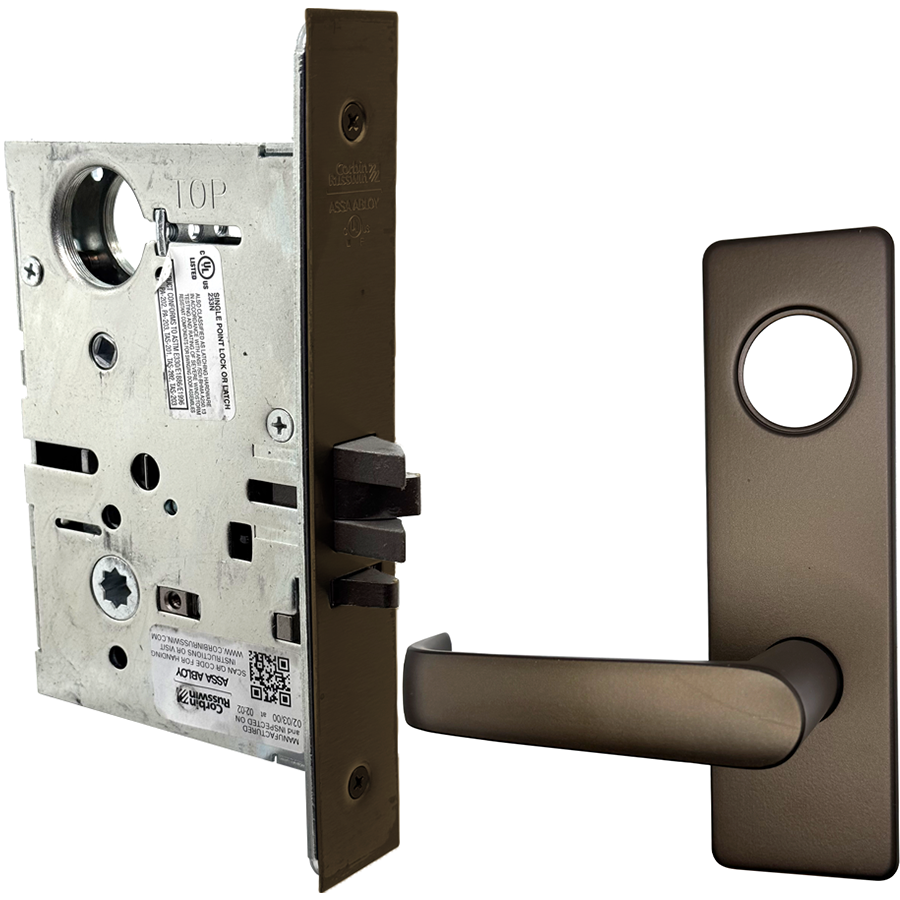

The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1 stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
Attributes
Alternate Codes: ML2055 NSM 613E LC, ML2055NSM613ELC
Ansi Function: F05 - Classroom
Application: Complete Lock
Bolt Projection: 3/4" Latchbolt
Bolt Protection: 3/4" Latchbolt
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Less Cylinder
Door Application: Mortise Locks
Door Thickness: 1-3/4 In.
Finish: 613/US10B
Finish Code: 613E
Finish Color: Dark Oxidized Satin Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 55-Classroom
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Lever Design: Newport
Lever Knob Design: NS - Newport
Leverknob Design: NS - Newport
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Material: Cast
Origin: USA
Pack Qty: 1
Rose Escutcheon Design: M - Escutcheon
Rose/ Escutcheon: M Escutcheon
Roseescutcheon Design: M - Escutcheon
Screws: Combination
Series: ML2000
Std Strike Height: 4-7/8 In.
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Strike Height: 4-7/8 In.
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
