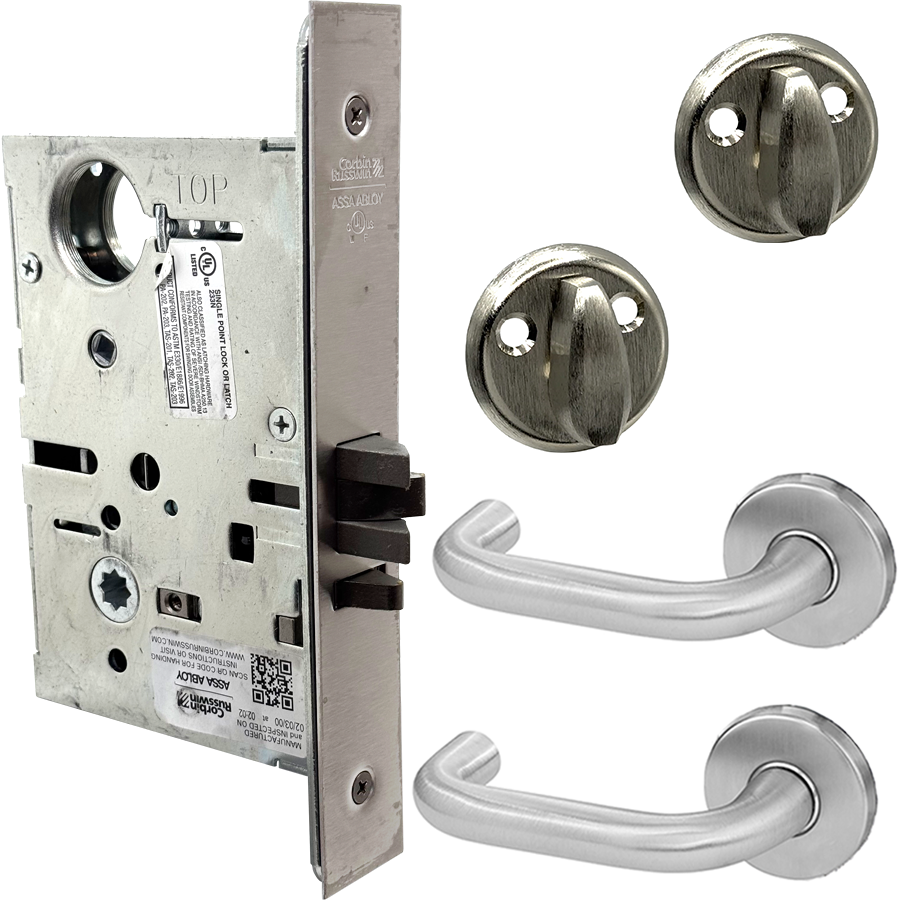

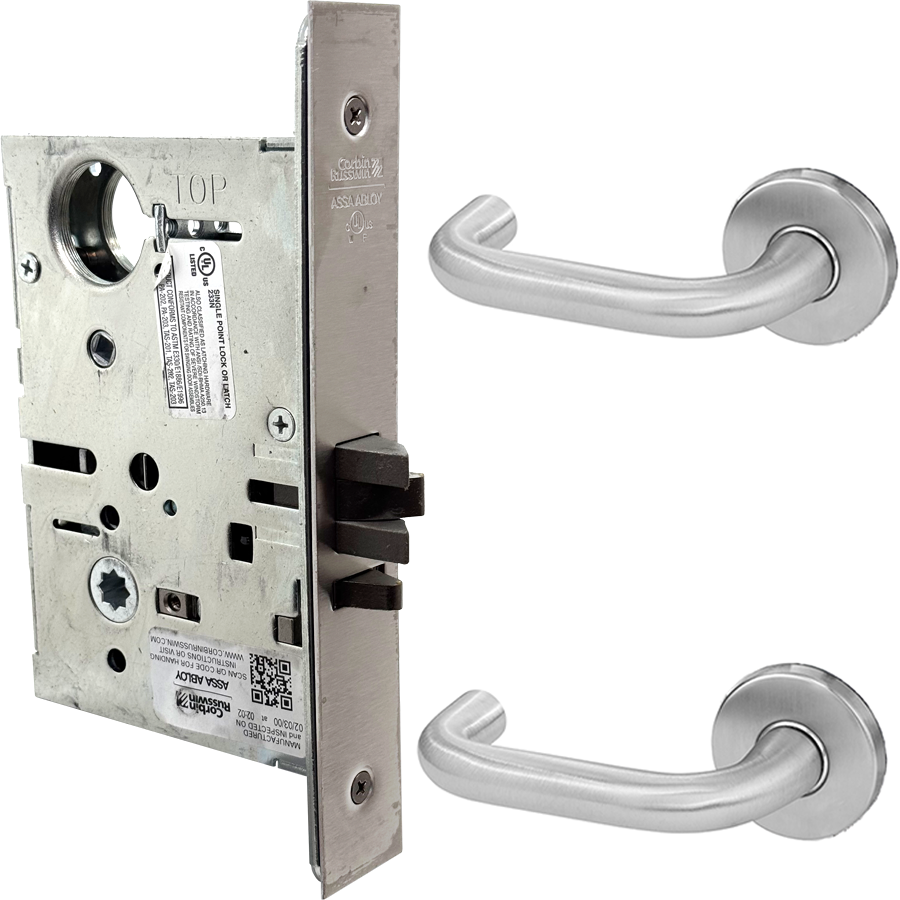

Corbin Russwin ML2055LWA630LC Single Cylinder Classroom Mortise Lock combines durability and innovative design, making it an ideal choice for commercial and institutional applications. This lock features a robust satin stainless steel finish that not only enhances its aesthetic appeal but also provides exceptional resistance to wear and tear. Engineered for direct drive performance, the ML2055LWA630LC offers consistent torque and force during lever rotation, ensuring reliable operation over time. The lever return is crisp and firm, eliminating any concerns regarding lever sag, which enhances user experience. With a variety of options available, this lock supports 63 mechanical and electrified functions, including two vandal-resistant and four behavioral health choices, accommodating diverse security needs. Designed to integrate seamlessly with existing Corbin Russwin key systems, including patented Access 3® and Pyramid systems, this lock also offers compatibility with various access control platforms. The 5-1/8" lever and 2-1/4" rose design ensure a sophisticated look while maintaining functionality. The ML2055LWA630LC is UL and cUL listed, ensuring compliance with safety standards. With a limited 10-year warranty, you can trust in the quality and reliability of Corbin Russwin’s craftsmanship.
Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ML2055 LWA 630 LC, ML2055LWA630LC
Ansi Function: F05 - Classroom
Application: Complete Lock
Baa Qualified: Yes
Backset: 2 3/4" Backset
Base Material: Stainless Steel
Bolt Projection: 3/4" Latchbolt
Bolt Protection: 3/4" Latchbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Less Cylinder
Design: Wrought Lustra Lever and A Rose
Dimension: 5-1/8" Lever with 2-1/2" Projection and 2-1/4" Rose
Door Application: Mortise Locks
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Satin Stainless Steel
Finish Code: 630
Finish Color: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 55-Classroom
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Design: Lustra
Lever Knob Design: LW - Lustra
Leverknob Design: LW - Lustra Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
Material: Stainless Steel
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Rose Escutcheon Design: A - Rose
Rose/ Escutcheon: A Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise
Type: Mechanical Commercial Locksets
Ul Listing Type: UL and cUL - UL10C Positive Pressure
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
