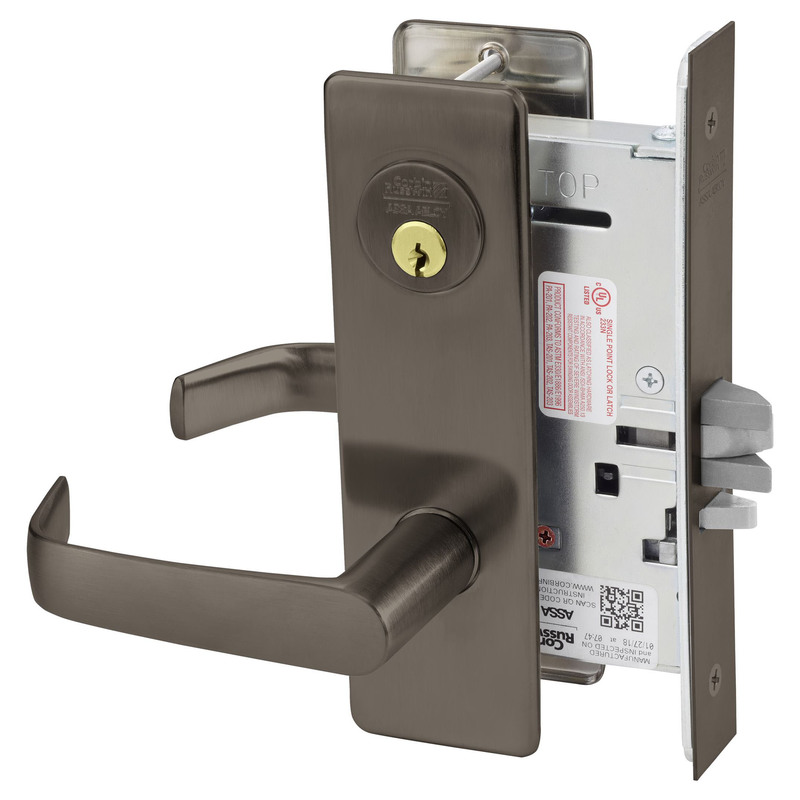

Corbin Russwin ML2055NSM613 Single Cylinder Classroom Mortise Lock with Newport Lever and M Escutcheon combines security and sophistication for a range of commercial applications. Crafted with an oil-rubbed bronze finish, this lockset not only provides a robust solution for classroom doors but also enhances the aesthetic appeal of any entryway. Designed for a 2-3/4" backset and suitable for doors up to 1-3/4" thick, the ML2055NSM613 features a 4-13/16" lever with a 2-5/8" projection, ensuring ease of use while maintaining a sleek profile. The lock includes a 6-pin L4 keyway and is equipped with a durable ANSI straight lip strike, enhancing its security capabilities. Additionally, the M escutcheon adds an elegant touch to the overall design. With a limited 10-year warranty and UL and cUL certification for positive pressure, you can trust the reliability of this lockset. Its 1-1/4" x 8" latch faceplate and 1-1/4" x 4-7/8" strike dimension provide standard compatibility, making installation straightforward. Whether for new construction or retrofitting existing doors, the Corbin Russwin ML2055NSM613 is the ideal choice for those seeking quality, security, and style in their architectural hardware solutions.
Single Cylinder Classroom Mortise Lock with Newport Lever and M Escutcheon L4 Keyway Oil Rubbed Bronze Finish
Ansi Function: F05 - Classroom
Baa Qualified: Yes
Backset: 2 3/4" Backset
Bolt Protection: 3/4" Latchbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Cylinder Type: Conventional Cylinder
Design: Newport Lever
Dimension: 4-13/16" Lever with 2-5/8" Projection and 2-1/4" x 7-1/2" Escutcheon
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 3 Hours {A}
Function: 55-Classroom
Grade: Grade 1
Hand: Field Reversible
Hazardous Material: NO
Keying: 0 Bitted
Keys: Blank
Keyway: L4
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: NS - Newport
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: M - Escutcheon
Screws: Combination
Series: ML2000 Series
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL - UL10C Positive Pressure
