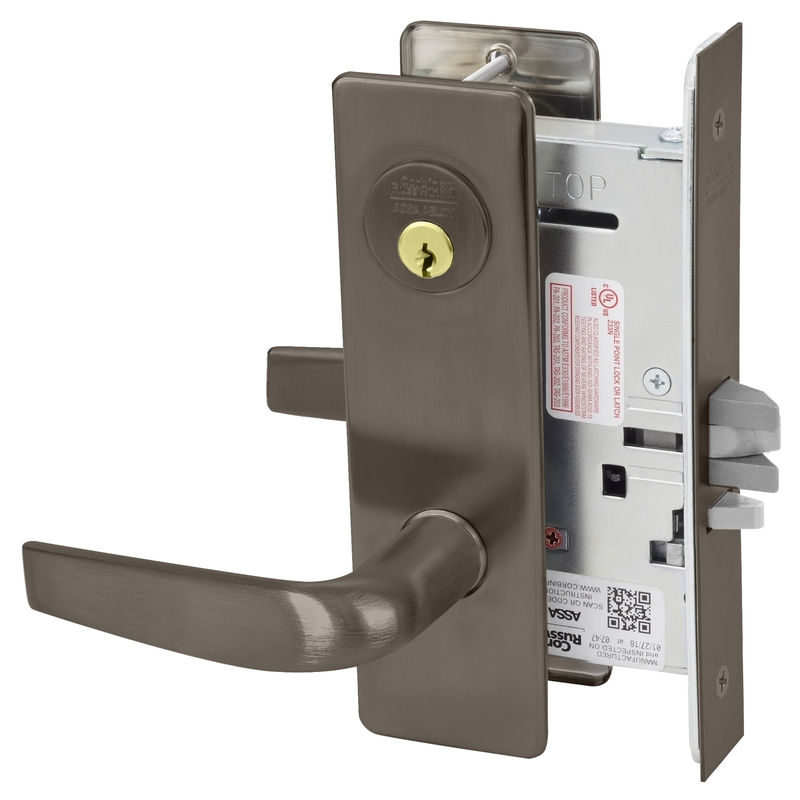

Corbin Russwin ML2057CSM613 Storeroom Mortise Lock with Citation Lever and M Escutcheon offers robust security and elegant design, making it an ideal choice for commercial applications. This single cylinder storeroom lock is built to accommodate doors with a thickness of 1-3/4", ensuring a precise fit and reliable performance. The lock features a 2-3/4" backset and is equipped with a 6-pin L4 keyway for enhanced security. The Citation Lever design provides both functionality and style, complemented by the sophisticated oil rubbed bronze finish (613) that adds a touch of class to any entryway. With dimensions of 4-3/8" for the lever and a projection of 2-5/8", it is designed for ease of use while maintaining a sleek profile. The M Escutcheon enhances the overall aesthetic, measuring 2-1/4" x 7-1/2". Durable and reliable, the lock features an ANSI straight lip strike with dimensions of 1-1/4" x 4-7/8", ensuring a secure closure. The UL and cUL listing certifies its performance under positive pressure, providing peace of mind in fire safety. Backed by a limited 10-year warranty, the Corbin Russwin ML2057CSM613 is an investment in quality and security for any storeroom or restricted access area.
Storeroom Mortise Lock with Citation Lever and M Escutcheon L4 Keyway Oil Rubbed Bronze Finish
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Backset: 2 3/4" Backset
Bolt Protection: 3/4" Latchbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Cylinder Type: Conventional Cylinder
Design: Citation Lever
Dimension: 4-3/8" Lever with 2-5/8" Projection and 2-1/4" x 7-1/2" Escutcheon
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 3 Hours {A}
Function: 57-Storeroom or Closet
Grade: Grade 1
Hand: Field Reversible
Hazardous Material: NO
Keying: 0 Bitted
Keys: Blank
Keyway: L4
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: CS - Citation
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: M - Escutcheon
Screws: Combination
Series: ML2000 Series
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL - UL10C Positive Pressure
