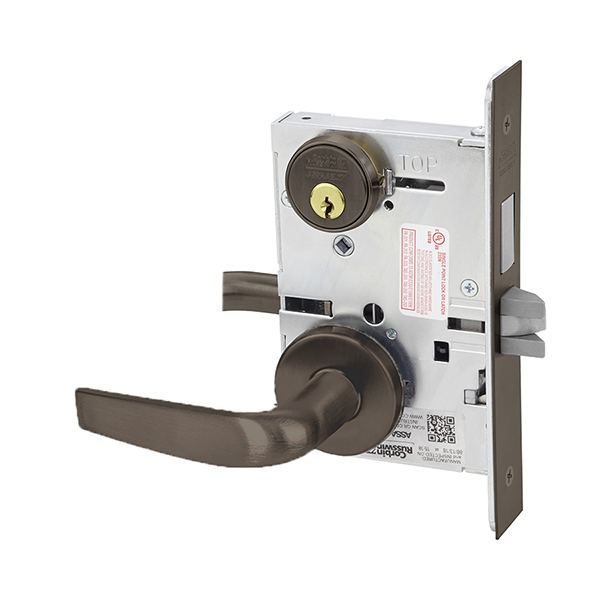

Corbin Russwin ML2065 CSA 613E L4 V20 V01 Dormitory Mortise Lock Kit with Deadbolt Citation Lever, Oil Rubbed BronzeCorbin Russwin ML2065 CSA 613E L4 V20 V01 KIT is a robust dormitory mortise lock designed for the demands of high-traffic environments. This Grade 1 lock features a deadbolt mechanism and a Citation lever with A Rose trim, ensuring both security and style. The lock includes a standard 1-1/8" mortise cylinder and an A01 Clover cam, providing flexibility for various applications. One of the standout features of this lock is its dual visual indicators. The V20 outside indicator displays vacant or occupied statuses with vibrant green and red signals, while the V01 inside indicator clearly shows locked or unlocked states. This enhances usability and safety in communal living situations. Constructed from heavy-gauge steel, the ML2000 series provides exceptional durability. With a field-reversible latchbolt, installation is straightforward, and it accommodates door thicknesses from 1-3/8" to 4". The lock utilizes EcoFlex®️ technology for electromechanical functions, promoting energy efficiency with up to 89% savings. With ANSI/BHMA certification, a ten-year limited warranty, and compatibility with various access control systems, the Corbin Russwin ML2065 is a secure, reliable choice for institutional use. Its oil-rubbed bronze finish not only adds an elegant touch but also stands up to wear and tear, ensuring long-lasting performance.

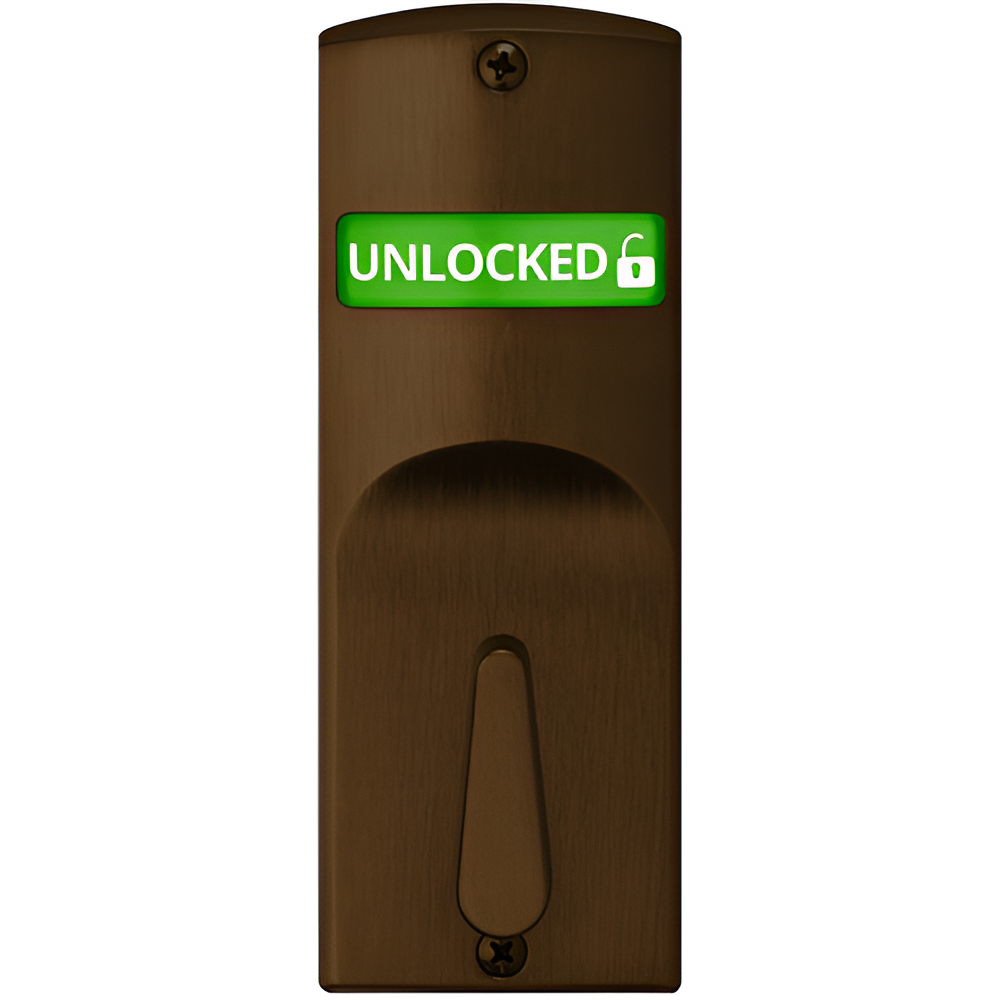

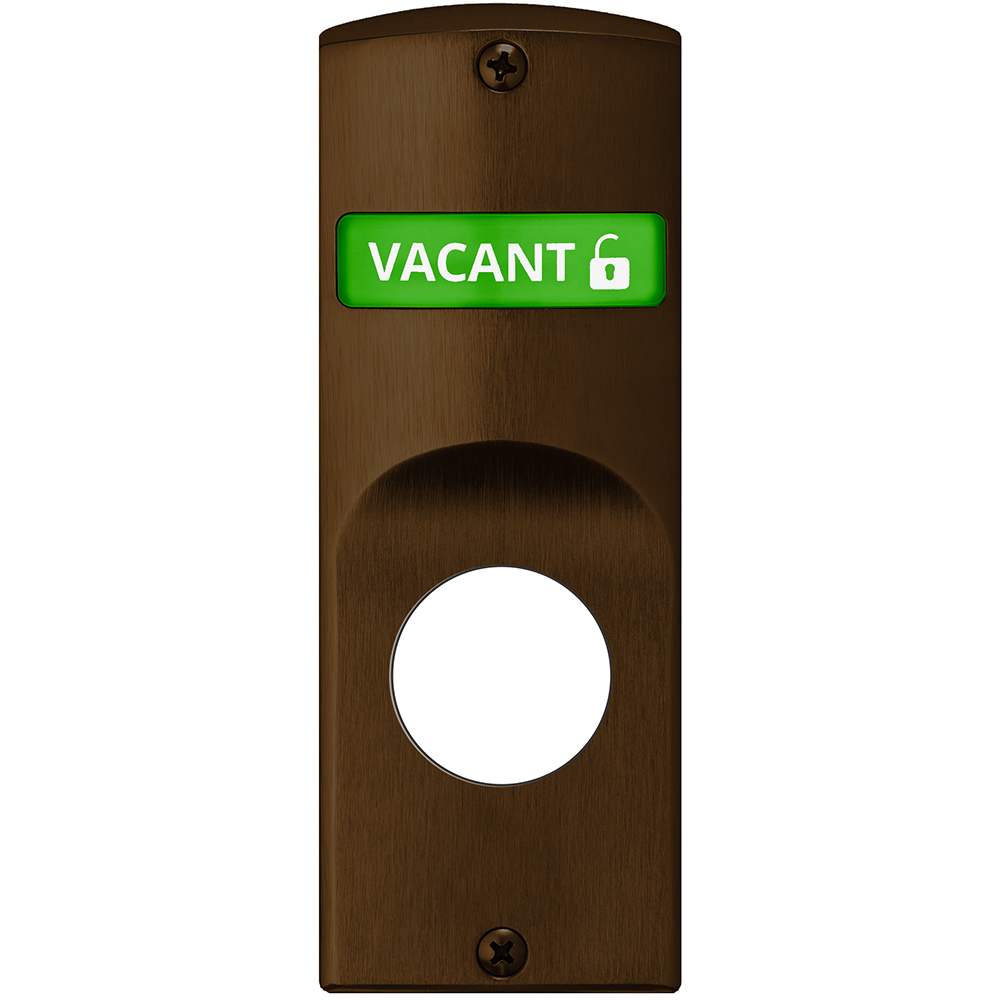

KIT - Dormitory Mortise Lock with Deadbolt, Citation Lever with A Rose Trim, Standard 1-1/8 Mortise Cylinder, A01 Clover Cam, L4 Keyway 0-Bit, V20 Outside Indicator (Vacant/Occupied, Green/Red), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML2065 CSA 613E L4 V20 V01, ML2065CSA613EL4V20V01
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Door Application: Mortise Locks
Door Indicators: Double Visual Indicator, Exterior Indicator - Green/Red, Exterior Indicator - Vacant/Occupied, Interior Indicator - Green/Red, Interior Indicator - Locked/Unlocked
Finish Code: 613E
Finish Color: Dark Oxidized Satin Bronze
Function: Dormitory
Keyway: Corbin L4
Lever Design: Citation
Material: Cast
Rose/ Escutcheon: A Rose
Series: ML2000
