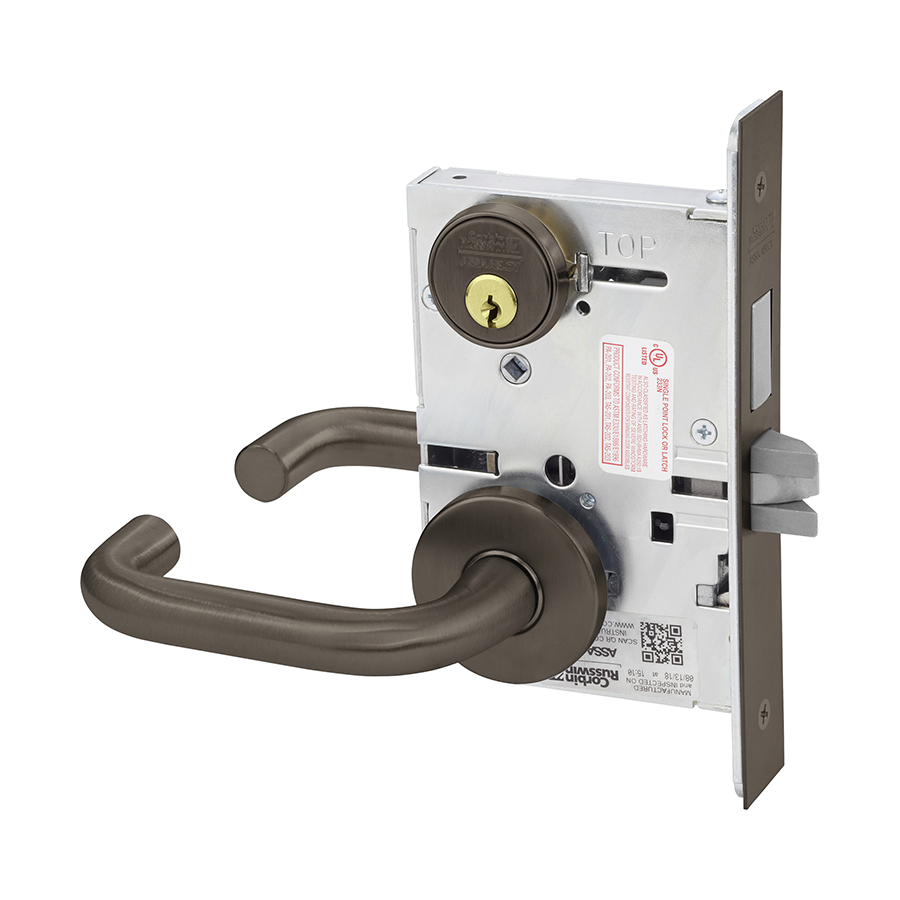

Corbin Russwin ML2065 LWA 613E L4 V20 V01 KIT is a premium dormitory mortise lock designed to withstand the demands of high-traffic environments. Constructed from heavy-gauge steel, this ANSI/BHMA Grade 1 mortise lock features a robust deadbolt mechanism paired with the sleek Lustra lever and A Rose trim, combining aesthetics with superior security. The ML2000 Series incorporates innovative performance features, including direct drive technology that ensures consistent torque and a crisp lever return, eliminating sag. This lock is equipped with double visual indicators, providing clear status notifications for both the exterior and interior, enhancing safety in dormitory applications. The standard 1-1/8 mortise cylinder and A01 Clover cam facilitate seamless integration with existing Corbin Russwin key systems and access control platforms. Built for versatility, the lock accommodates various door types and thicknesses, with a field-reversible latchbolt for easy adjustments. It also meets stringent security standards, ensuring durability and longevity. With a ten-year limited warranty, the Corbin Russwin ML2065 offers peace of mind alongside its advanced security features. Available in a sophisticated Dark Oxidized Satin Bronze finish (613E), this lock not only serves a functional purpose but also enhances the aesthetic appeal of any door it adorns.

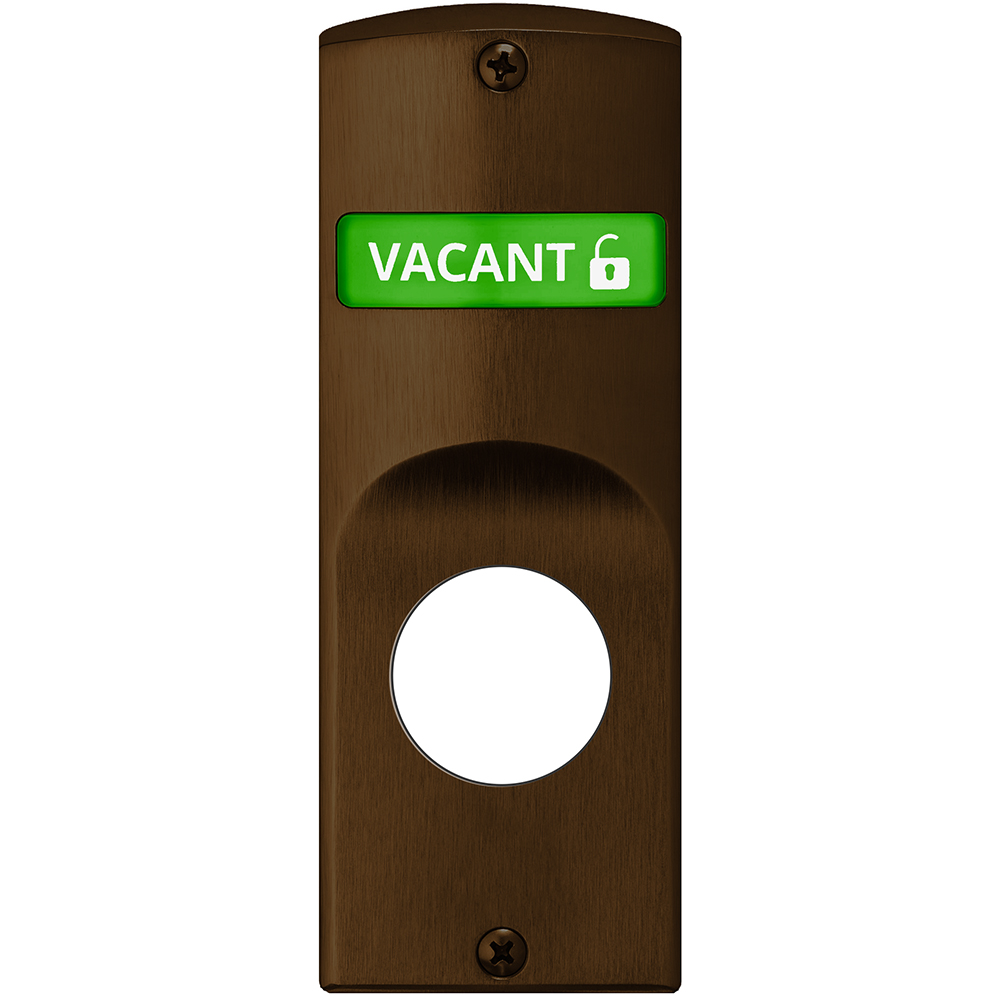

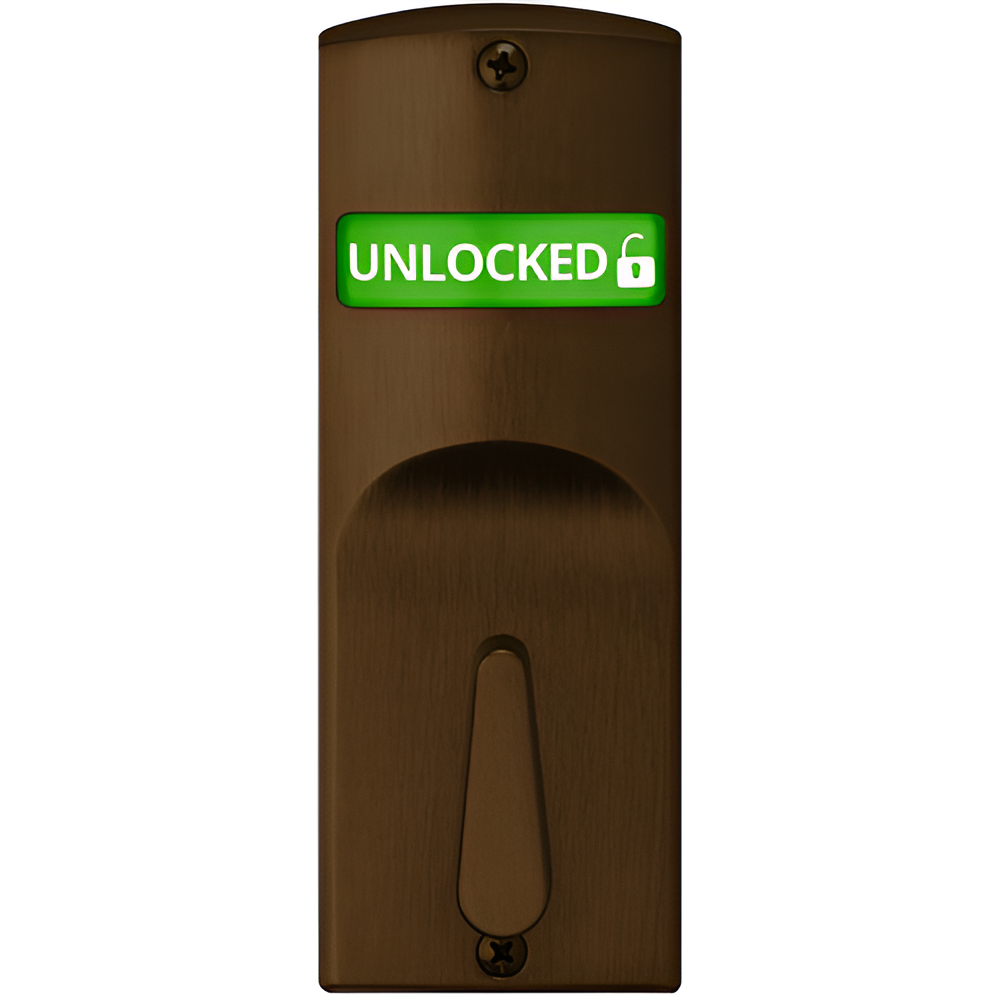

KIT - Dormitory Mortise Lock with Deadbolt, Lustra Lever with A Rose Trim, Standard 1-1/8 Mortise Cylinder, A01 Clover Cam, L4 Keyway 0-Bit, V20 Outside Indicator (Vacant/Occupied, Green/Red), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
