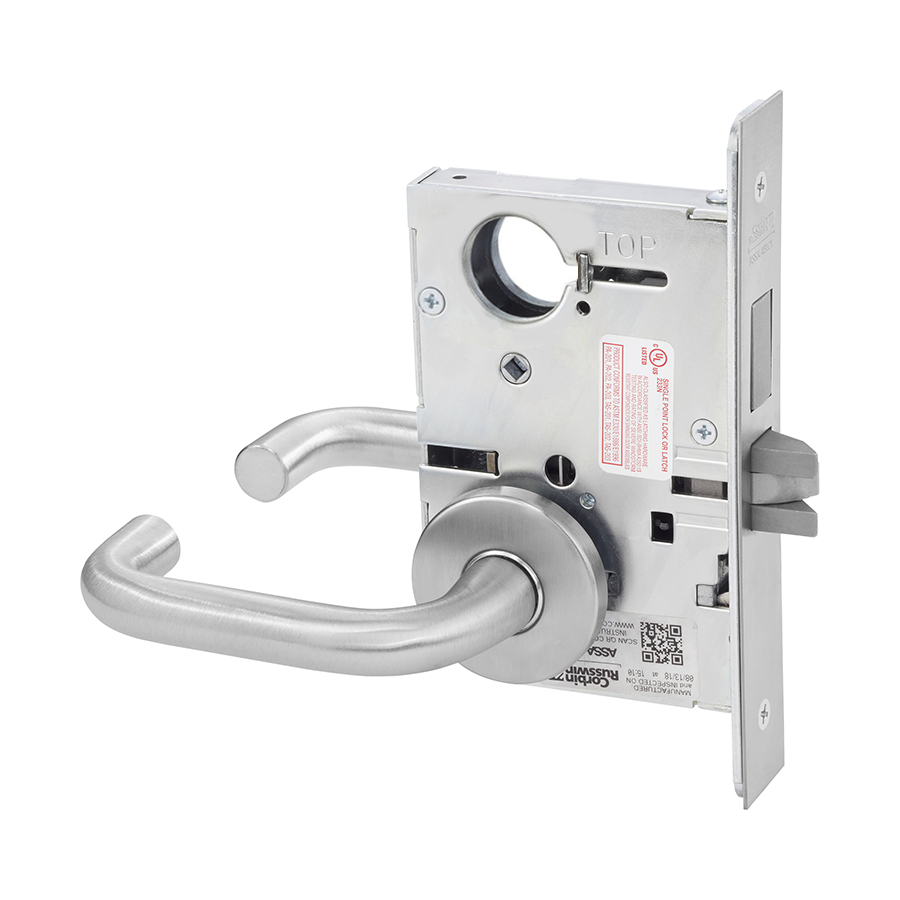

Corbin Russwin ML2065LWA630LC Single Cylinder Dormitory Mortise Lock combines durability and sophistication in a satin stainless steel finish. Designed for commercial and institutional applications, this lock features a Wrought Lustra Lever and A Rose, ensuring both aesthetic appeal and functionality. The ML2065L offers direct drive performance, providing consistent torque and force during lever rotation, while the crisp lever return eliminates sag, maintaining a professional appearance. With a backset of 2 3/4" and compatibility with 1-3/4" door thickness, this lock fits standard door ranges seamlessly. It supports an impressive array of functions-63 mechanical and electrified options-making it versatile for various environments, including vandal-resistant and behavioral health applications. Integration is effortless with existing Corbin Russwin key systems, including the patented Access 3® and Pyramid systems, as well as access control platforms. Built with stainless steel for enhanced durability, this mortise lock is backed by a limited 10-year warranty, underscoring its reliability. The ANSI straight lip strike and UL/cUL certification for positive pressure ensure compliance with safety standards. Whether for dormitories or other commercial settings, the Corbin Russwin ML2065LWA630LC is a robust and stylish choice for your locking needs.
Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ML2065 LWA 630 LC, ML2065LWA630LC
Ansi Function: F13 - Dormitory
Application: Complete Lock
Baa Qualified: Yes
Backset: 2 3/4" Backset
Base Material: Stainless Steel
Bolt Projection: 3/4" Latchbolt, 1" Deadbolt
Bolt Protection: 3/4" Latchbolt, 1" Deadbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Less Cylinder
Design: Wrought Lustra Lever and A Rose
Dimension: 5-1/8" Lever with 2-1/2" Projection and 2-1/4" Rose
Door Application: Mortise Locks
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Satin Stainless Steel
Finish Code: 630
Finish Color: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 65-Dormitory or Entrance
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Design: Lustra
Lever Knob Design: LW - Lustra
Leverknob Design: LW - Lustra Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
Material: Stainless Steel
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Rose Escutcheon Design: A - Rose
Rose/ Escutcheon: A Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise
Type: Mechanical Commercial Locksets
Ul Listing Type: UL and cUL - UL10C Positive Pressure
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
