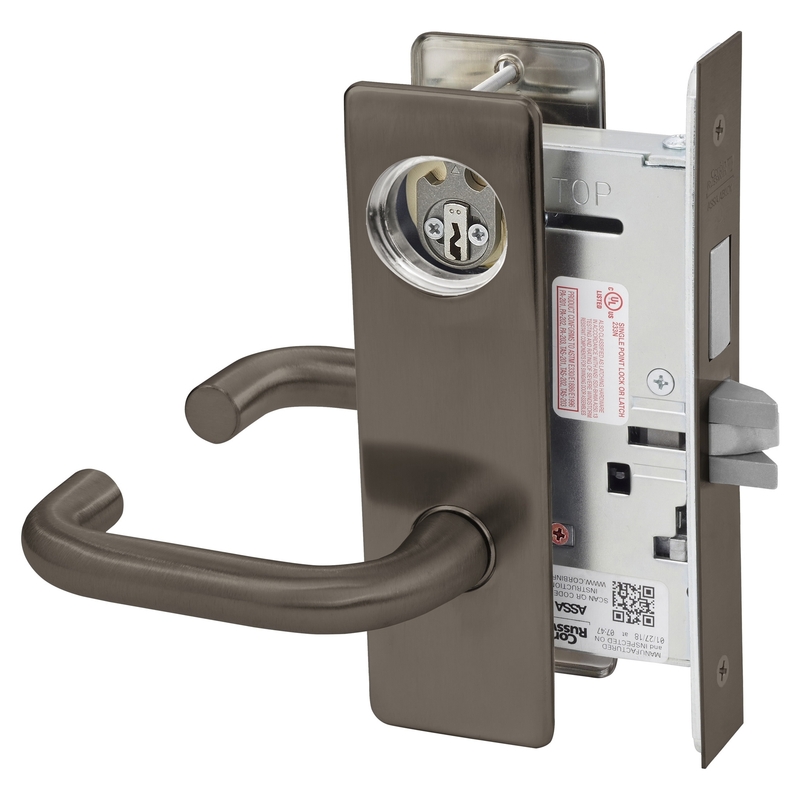

Corbin Russwin ML2065LWM613LC Single Cylinder Dormitory Mortise Lock with Wrought Lustra Lever and M Escutcheon offers robust security and elegant design for commercial applications. This lockset features a durable oil rubbed bronze finish that not only enhances its aesthetic appeal but also provides resistance to wear and tear, ensuring longevity in high-traffic environments. Designed for a 2-3/4" backset, the ML2065 is suitable for doors measuring 1-3/4" thick, making it ideal for dormitory settings where reliable access control is essential. The 5-1/8" lever with a 2-1/2" projection is complemented by the M Escutcheon design, delivering a modern touch without compromising functionality. The ANSI straight lip strike, measuring 1-1/4" x 4-7/8", adds to the lock's security features. This mortise lockset falls under the ML2000 Series and is backed by a limited 10-year warranty, reflecting Corbin Russwin's commitment to quality. Notably, it is UL and cUL listed for positive pressure, ensuring compliance with safety standards. With a single cylinder function and a latch faceplate dimension of 1-1/4" x 8", this lockset is the perfect choice for building professionals seeking reliability and style in their door hardware solutions.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F13 - Dormitory
Application: Complete Lock
Baa Qualified: Yes
Backset: 2 3/4" Backset
Base Material: Bronze
Bolt Projection: 3/4" Latchbolt, 1" Deadbolt
Bolt Protection: 3/4" Latchbolt, 1" Deadbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Design: Wrought Lustra Lever
Dimension: 5-1/8" Lever with 2-1/2" Projection and 2-1/4" x 7-1/2" Escutcheon
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 65-Dormitory or Entrance
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: LW - Lustra
Leverknob Design: LW - Lustra
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Rose Escutcheon Design: M - Escutcheon
Roseescutcheon Design: M - Escutcheon
Screws: Combination
Series: ML2000 Series
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL - UL10C Positive Pressure
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
