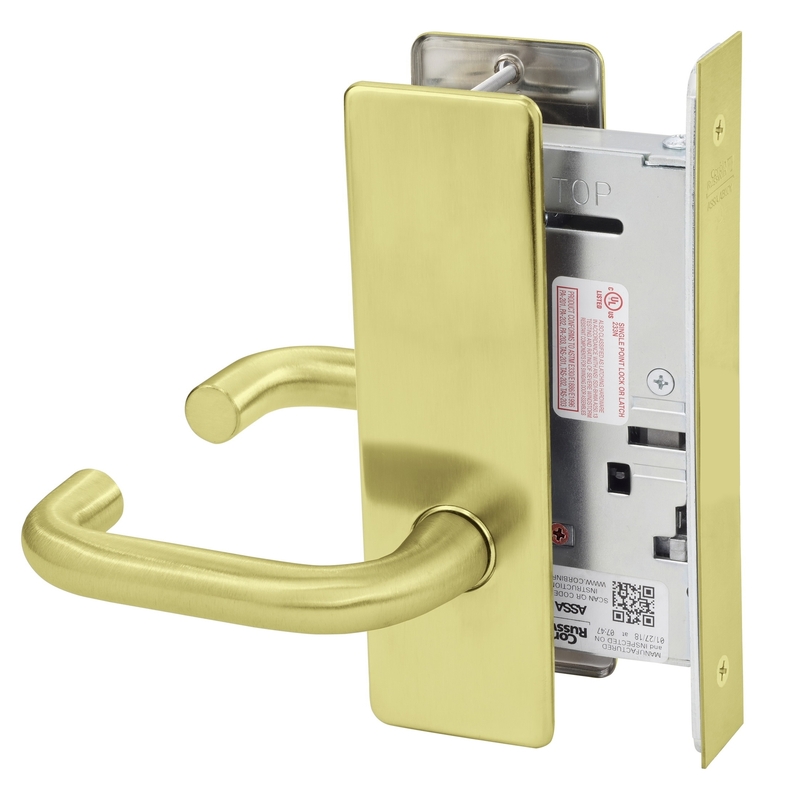

Corbin Russwin ML2070 LWM 606 Dummy Mortise LockCorbin Russwin ML2070 LWM 606 Full Dummy Mortise Lock offers a robust solution tailored for high-traffic environments, including commercial, institutional, and government settings. This Grade 1 mortise lock is built from heavy-gauge steel, ensuring durability and long-lasting performance. The innovative quick reversible latchbolt allows for easy re-handing without disassembling the lock case, making it a practical choice for various applications. Designed with versatility in mind, the ML2000 Series features a sleek LW lever and M escutcheon in a sophisticated satin brass finish. This full dummy trim is ideal for doors that require a non-functional handle, enhancing aesthetic appeal while maintaining security. The lock accommodates standard door thicknesses of 1-3/4 inches and has a backset of 2-3/4 inches, ensuring compatibility with a wide range of installations. With a 10-year limited warranty, the ML2070 provides peace of mind, affirming its reliability for high-use settings such as offices, schools, and hospitals. Additionally, it meets ADA compliance and federal specifications (FF-H-106C), making it a smart choice for those prioritizing accessibility and safety. Choose the Corbin Russwin ML2070 for an elegant yet sturdy solution to your locking needs.
Full Dummy Mortise Lock
Full Dummy Trim Mortise Trim, LW Lever, M Escutcheon, Satin Brass
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4" (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
- Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Application: Trim Pack Only
Baa Qualified: Yes
Base Material: Brass
Country of origin: USA
Door Thickness: 1-3/4"
Finish: 606/US4
Function: 70-Full Dummy Trim
Grade: Grade 1
Handing: Field Reversible
Leverknob Design: LW - Lustra
Limited Warranty: 10 Years
Origin: USA
Pack Qty: 1
Roseescutcheon Design: M - Escutcheon
Series: ML2000 Series Mortise Locks
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
