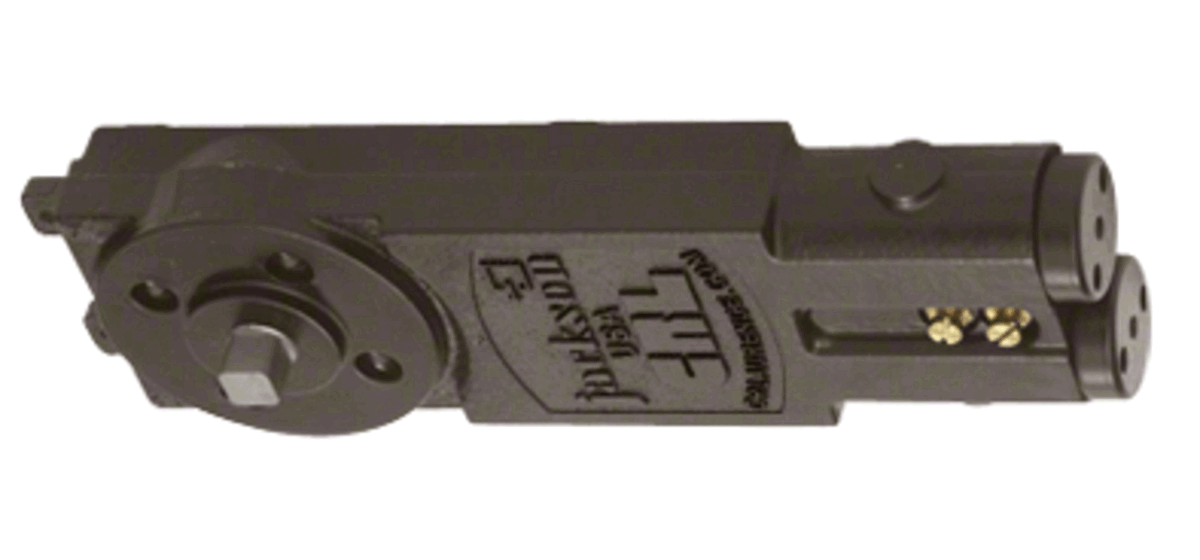

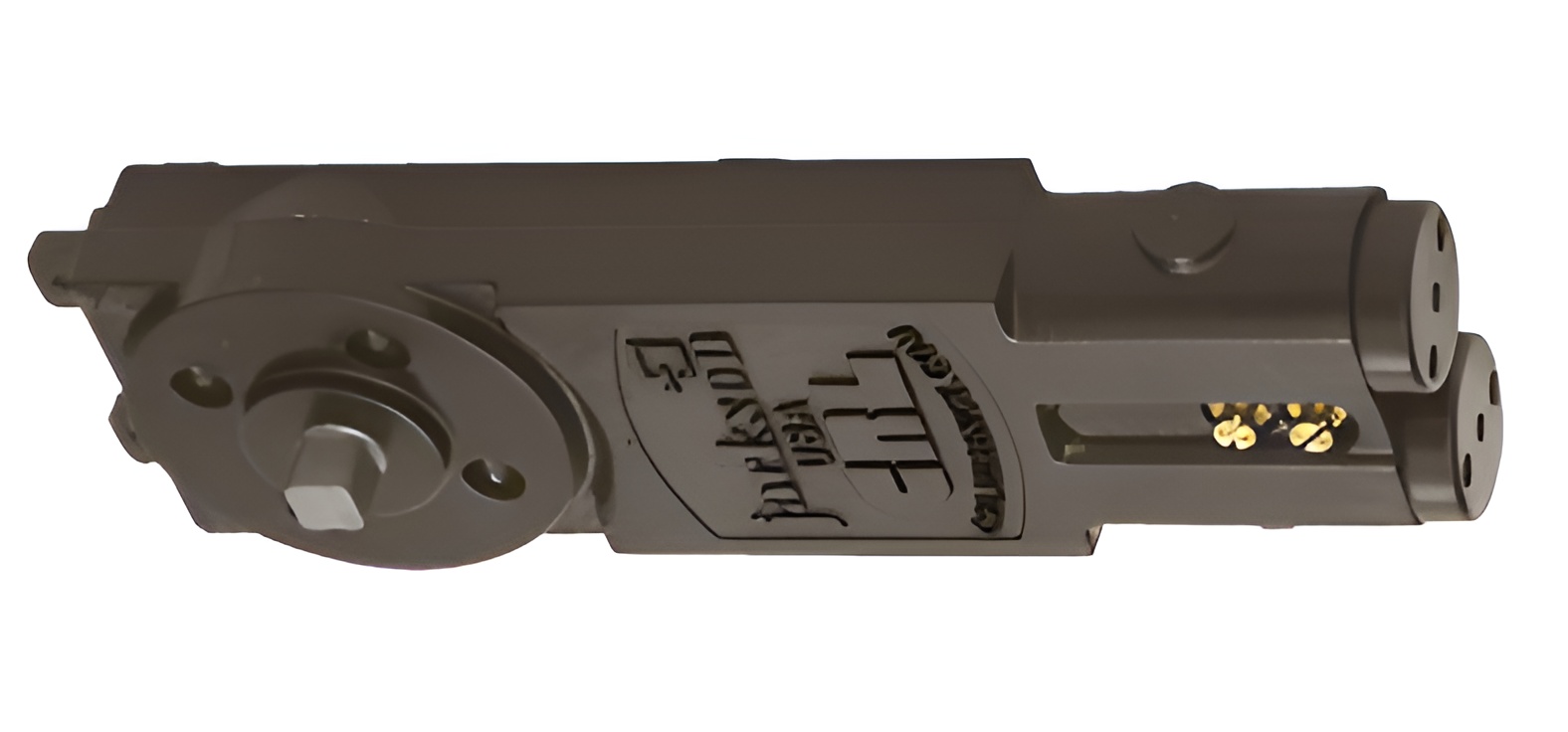

CRL 20101M01 Jackson Medium Duty 105 No Hold Open Overhead Concealed Closer Body is an exceptional choice for both durability and functionality. Designed with dual valves, this closer allows for precise control over closing and latching speeds, ensuring smooth door operation. The fixed medium-duty spring size suits various commercial needs, while the 105º hold open feature provides reliable performance without holding the door open indefinitely. This closer body fits seamlessly into standard 1-3/4" x 4" (45 x 102 mm) header extrusions, making it a versatile option for retrofitting existing Jackson® body style closers. With a maximum door weight capacity of 250 lbs. (113.4 kg) and accommodating door widths of up to 42 in. (1066.8 mm) for exteriors and 36 in. (914.4 mm) for interiors, it meets the demands of busy environments. Notably, this model features a standard 1/2" spindle length and is UL Listed for safety compliance. It's important to note that mounting clips are not included and must be purchased separately, ensuring that you can select the appropriate options for your installation. Backed by a 5-year limited warranty, the CRL 20101M01 is a reliable investment for any architectural project.
Jackson Medium Duty 105 No Hold Open Overhead Concealed Closer Body
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 42 in. (1066.8 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
No Hold Open: 105°
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2 in. (12.7 mm)
Spring Size: Medium Duty
UL Listed: Yes
