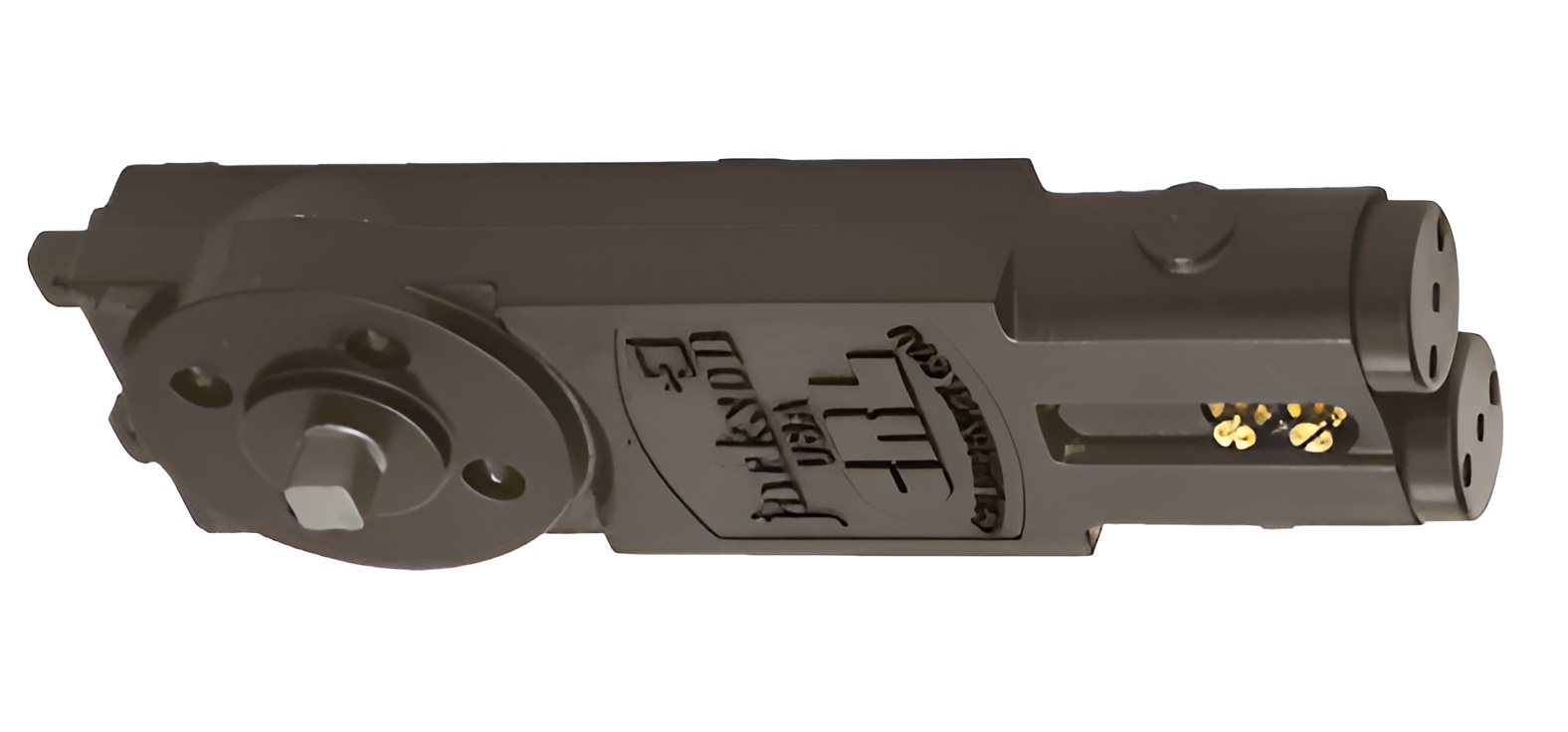

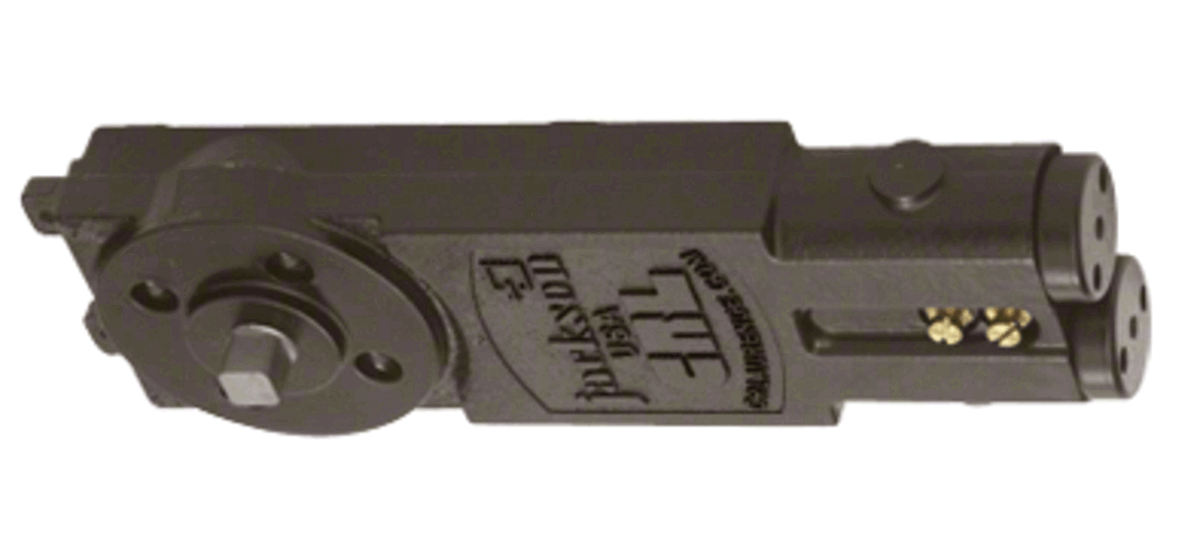

CRL 20101M03 Jackson Medium Duty 90 Concealed Closer Body

CRL 20101M03 Jackson Medium Duty 90 No Hold Open Overhead Concealed Closer Body is expertly engineered for optimal performance in both commercial and residential applications. This overhead concealed door closer features a fixed medium duty spring size, ensuring reliable operation for doors weighing up to 250 lbs. (113.4 kg) and a maximum width of 42 inches for exterior doors and 36 inches for interior doors. Designed with dual valves, it allows for precise control over closing and latching speeds, enhancing user experience while maintaining safety. The 90º No Hold Open functionality provides smooth operation without the risk of obstruction. Compatibility is key; this closer body fits standard header extrusions of 1-3/4" x 4" (45 x 102 mm) or larger, and it retrofits existing Jackson® body style closers for hassle-free updates to your door hardware. For installation, please note that mounting clips are not included. You can either reuse existing clips or purchase the appropriate clip package from Jackson® Technical Sales Department for your specific application. Backed by a five-year limited warranty, this closer body is UL Listed and designed to meet the demands of modern commercial spaces while ensuring a sleek, unobtrusive aesthetic.

Jackson Medium Duty 90 No Hold Open Overhead Concealed Closer Body

• Fixed Regular Spring Size
• Standard and Extended Spindle Models
• 5 Year Limited Warranty

CRL Jackson® Overhead Concealed Door Closer Bodies feature dual valves to control closing and latching speeds. 90º No Hold Open with fixed medium duty spring size. Closer Bodies fit into standard 1-3/4" x 4" (45 x 102 mm), or larger, header extrusions. These Closer Bodies will retrofit existing Jackson® body style closers.

Resources

• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
• OHC Installation Instructions 11M0193 OHC Door Closer.pdf
• OHC Installation Template 10-137.pdf
