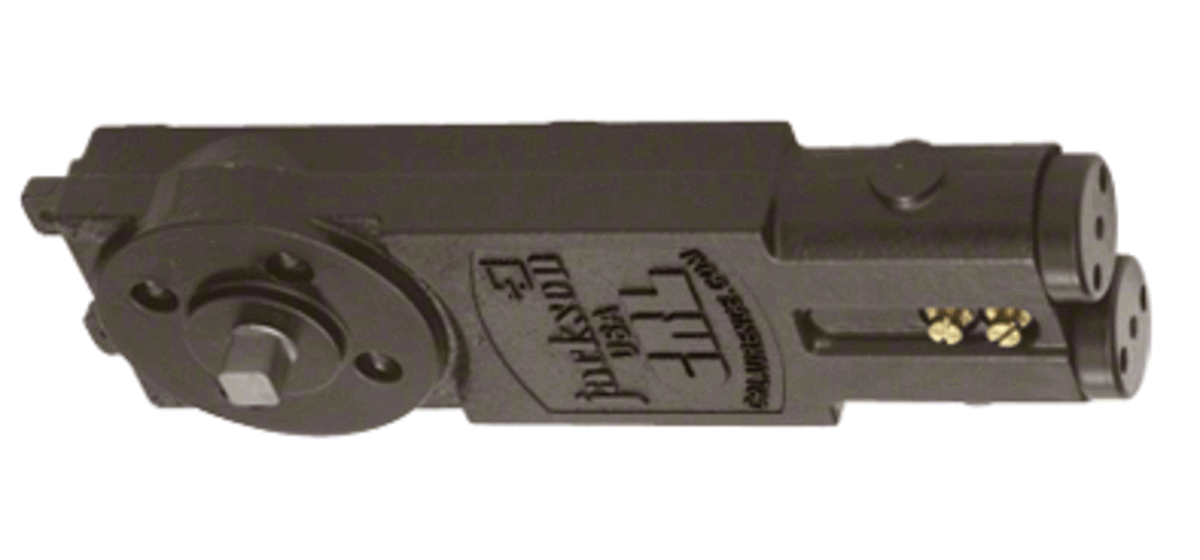

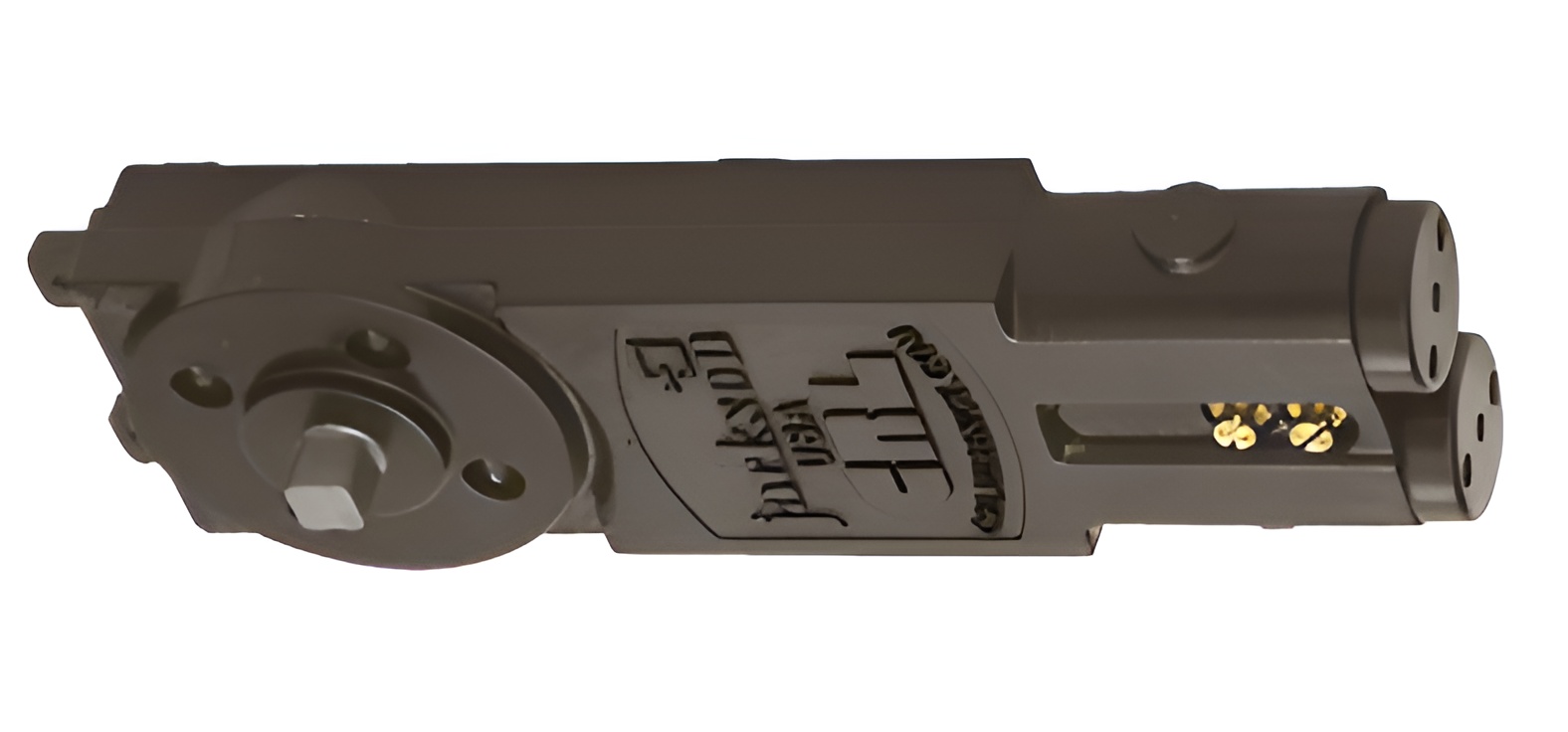

CRL 20101M04 Jackson Medium Duty 90 Hold Open Overhead Concealed Closer Body is designed for durability and reliability in high-traffic environments. This medium-duty closer features dual valves that allow precise control over both closing and latching speeds, ensuring smooth operation every time. With a fixed regular spring size, it provides robust performance for doors up to 250 lbs. (113.4 kg), making it suitable for a variety of applications. The closer body accommodates standard header extrusions of 1-3/4" x 4" (45 x 102 mm) or larger, and is designed to retrofit existing Jackson® body style closers, simplifying installation. It offers a 90° hold open feature, perfect for situations where keeping the door ajar is essential for convenience or accessibility. Please note, mounting clips are not included with this closer body; be sure to use existing clips or acquire the appropriate clip package for your installation needs. C.R. Laurence backs this product with a 5-year limited warranty, underscoring its quality and reliability. Whether you're working with aluminum or hollow metal doors, this closer is a smart choice for those seeking dependable door hardware solutions.
Jackson Medium Duty 90 Hold Open Overhead Concealed Closer Body
CRL Jackson® Overhead Concealed Door Closer Bodies feature dual valves to control closing and latching speeds. 90º Hold Open with fixed medium duty spring size. Closer Bodies fit into standard 1-3/4" x 4" (45 x 102 mm), or larger, header extrusions. These Closer Bodies will retrofit existing Jackson® body style closers.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Hold Open: 90°
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 42 in. (1066.8 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2 in. (12.7 mm)
Spring Size: Medium Duty
UL Listed: Yes
