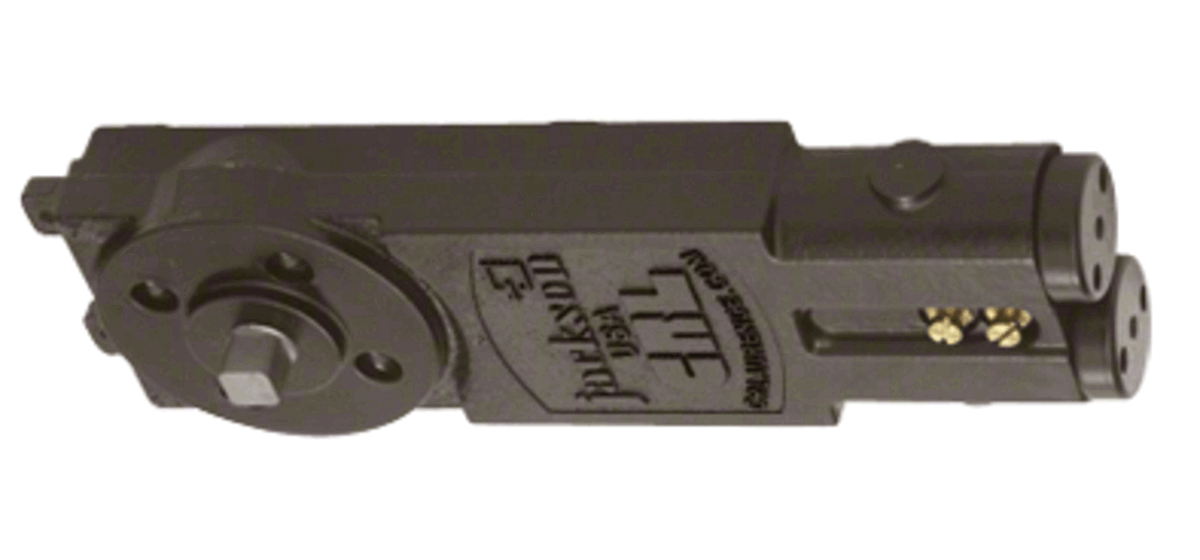

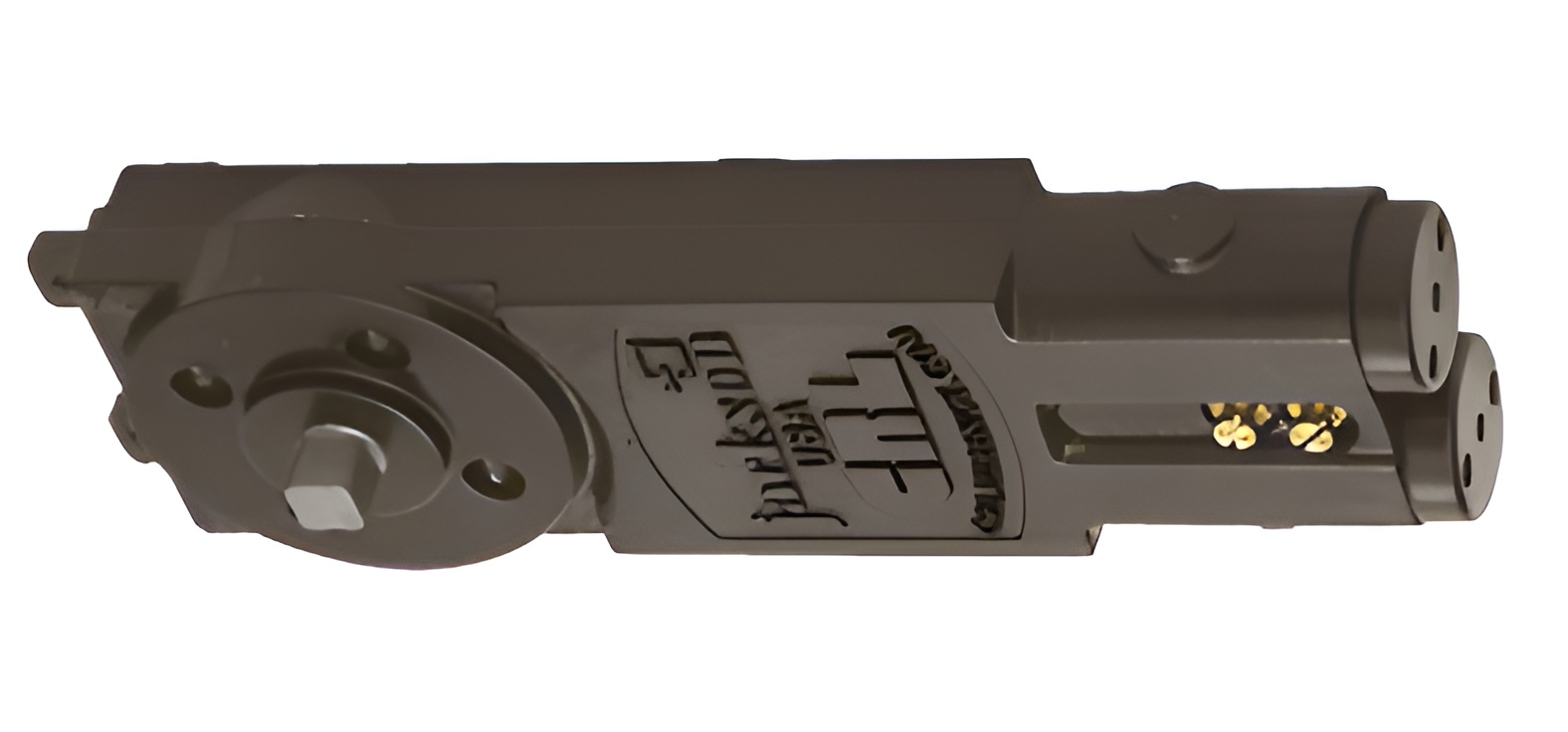

CRL 20101M09 Jackson Heavy-Duty 105º No Hold Open Overhead Concealed Closer Body is designed to meet the demands of high-traffic environments while maintaining aesthetic appeal. This robust closer accommodates doors ranging from 36" to 48" wide (914 to 1219 mm) and supports a maximum door weight of 250 lbs. (113.4 kg), making it ideal for aluminum and hollow metal doors. Equipped with dual action valves, this closer allows for precise control over both closing and latching speeds, ensuring smooth operation. The 105º no hold open feature provides flexibility without compromising safety or functionality. Measuring 1-11/16" in height, 11-5/8" in length, and 3-11/16" in width, this overhead concealed closer fits seamlessly into standard header extrusions of 1-3/4" x 4" (45 x 102 mm) or larger. U.L. Listed and backed by a five-year limited warranty, the CRL Jackson closer guarantees reliability and compliance with industry standards. Please note that mounting clips are not included and must be purchased separately. This closer is a perfect choice for professionals seeking a durable, efficient solution for their door hardware needs.
Jackson Heavy-Duty 105 No Hold Open Overhead Concealed Closer Body
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 42 in. (1066.8 mm)
No Hold Open: 105º
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2 in. (12.7 mm)
Spring Size: Heavy Duty
UL Listed: Yes
