C.R. Laurence Jackson Heavy-Duty 90 No Hold Open Overhead Concealed Closer Body delivers exceptional performance for commercial and industrial applications. Designed to accommodate doors ranging from 36" to 48" wide, this heavy-duty closer features dual action valves that expertly regulate both closing and latching speeds, ensuring smooth operation with every use. With a robust spring size, it is built to handle doors weighing up to 250 lbs, making it an ideal choice for high-traffic environments. This closer fits seamlessly into standard 1-3/4" x 4" or larger header extrusions and is interchangeable with all Jackson® and similar brands of overhead concealed closers, offering flexibility and compatibility for various installations. UL listed and backed by a five-year limited warranty, it ensures reliability and peace of mind for building professionals. Please note that mounting clips are not included; you may need to purchase the appropriate clip package to complete your installation. Recommended for aluminum and hollow metal doors, the C.R. Laurence Jackson Heavy-Duty Closer is engineered to meet the demands of any project while maintaining a sleek, concealed appearance. Invest in a solution that combines durability and functionality for your next architectural endeavor.

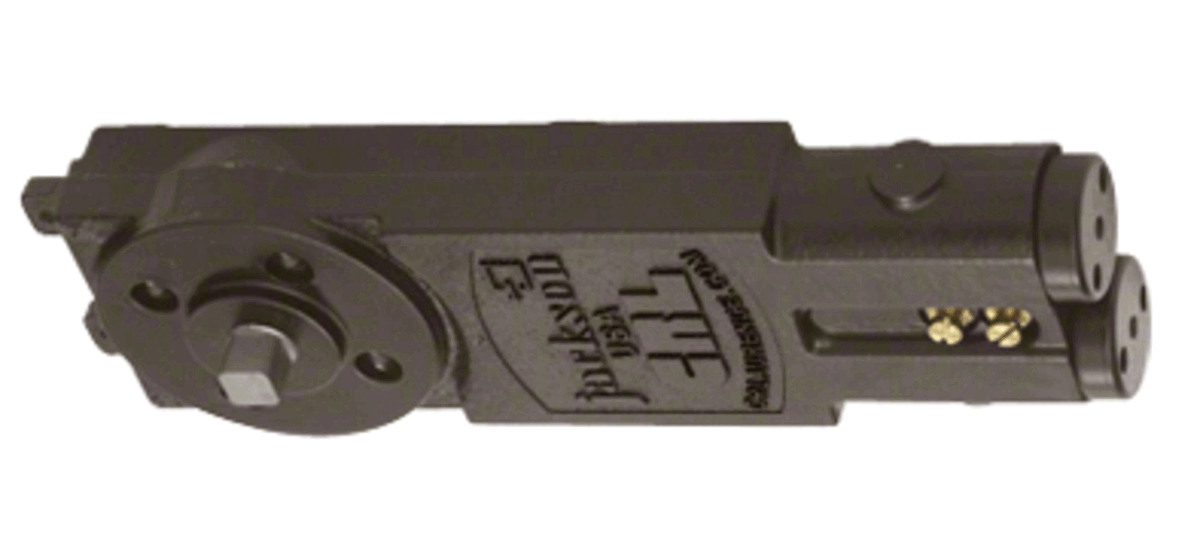

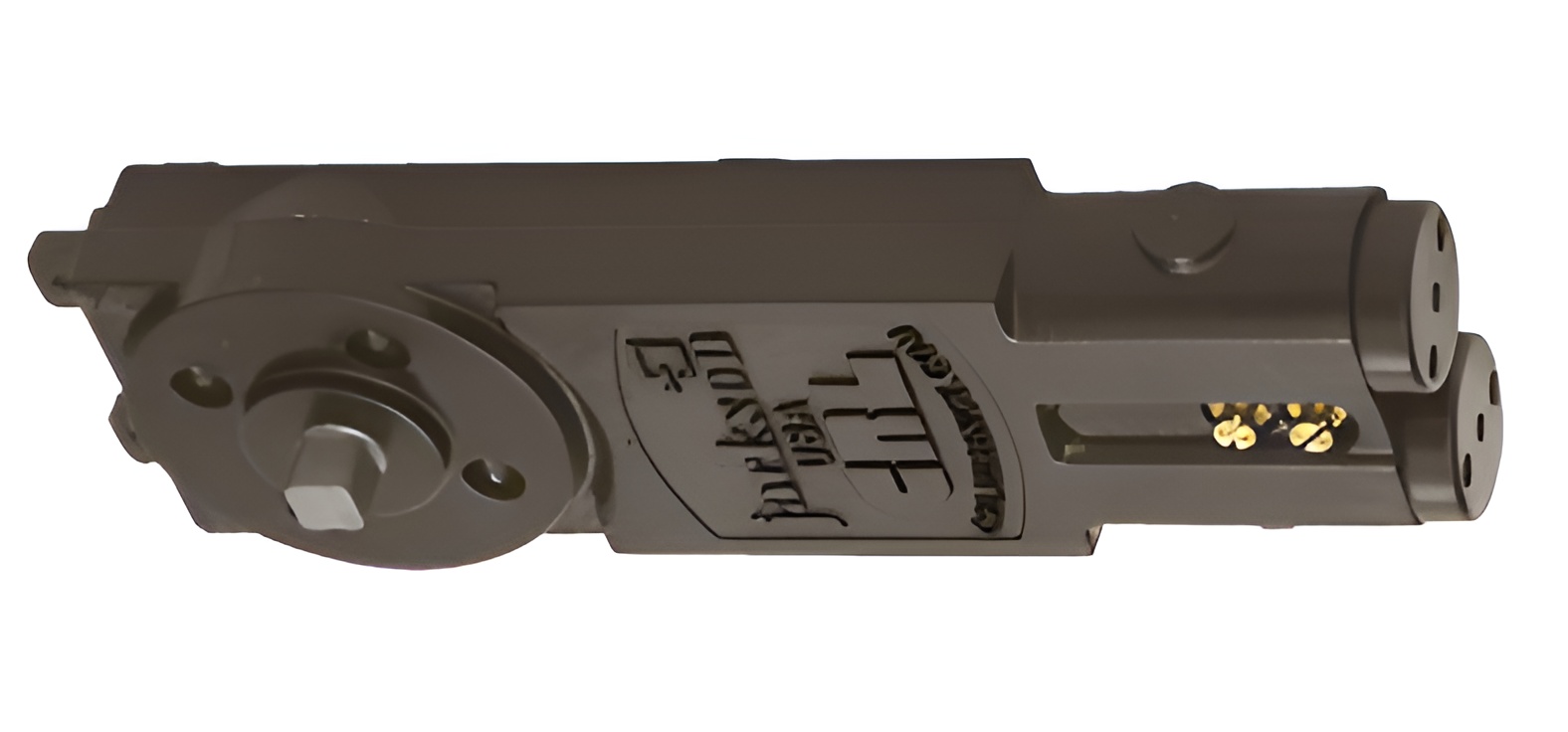

Jackson Heavy-Duty 90 No Hold Open Overhead Concealed Closer Body
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 42 in. (1066.8 mm)
No Hold Open: 90°
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2 in. (12.7 mm)
Spring Size: Heavy Duty
UL Listed: Yes
