CRL 20101M12 Jackson Heavy-Duty 90 Hold Open Overhead Concealed Closer Body is engineered for exceptional performance in high-traffic environments. This overhead closer is suitable for doors ranging from 36" to 48" wide, accommodating a broad spectrum of applications. With a robust design that supports a maximum door weight of 250 lbs, it ensures reliability without compromising on aesthetics. Featuring dual action valves, this closer allows for precise control over both closing and latching speeds, enhancing user experience and safety. Its 90º hold-open capability provides added convenience, making it ideal for situations where hands-free operation is beneficial. Designed to fit standard 1-3/4" x 4" or larger header extrusions, it is interchangeable with other Jackson® and similar brands, offering versatility in installation. This product is UL listed and backed by a five-year limited warranty, reflecting its quality and durability. Please note that mounting clips are not included; you will need to acquire the appropriate clip package separately to complete your installation. For expert guidance, the Jackson® Technical Sales Department is readily available to assist in selecting the correct mounting clip package. Elevate your door hardware solutions with the CRL 20101M12, a perfect blend of strength and functionality for modern architectural needs.

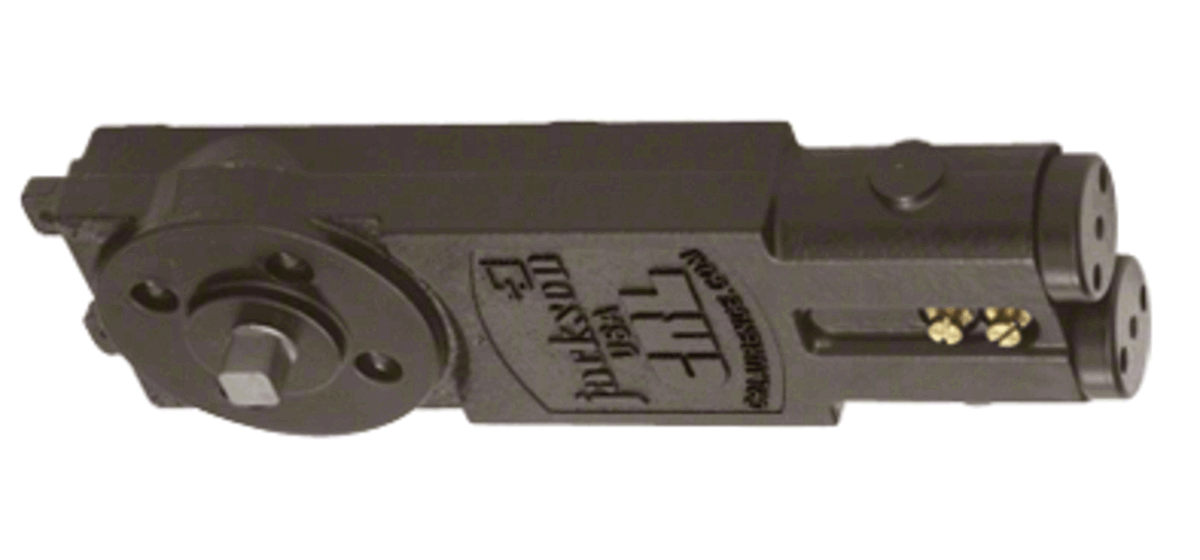

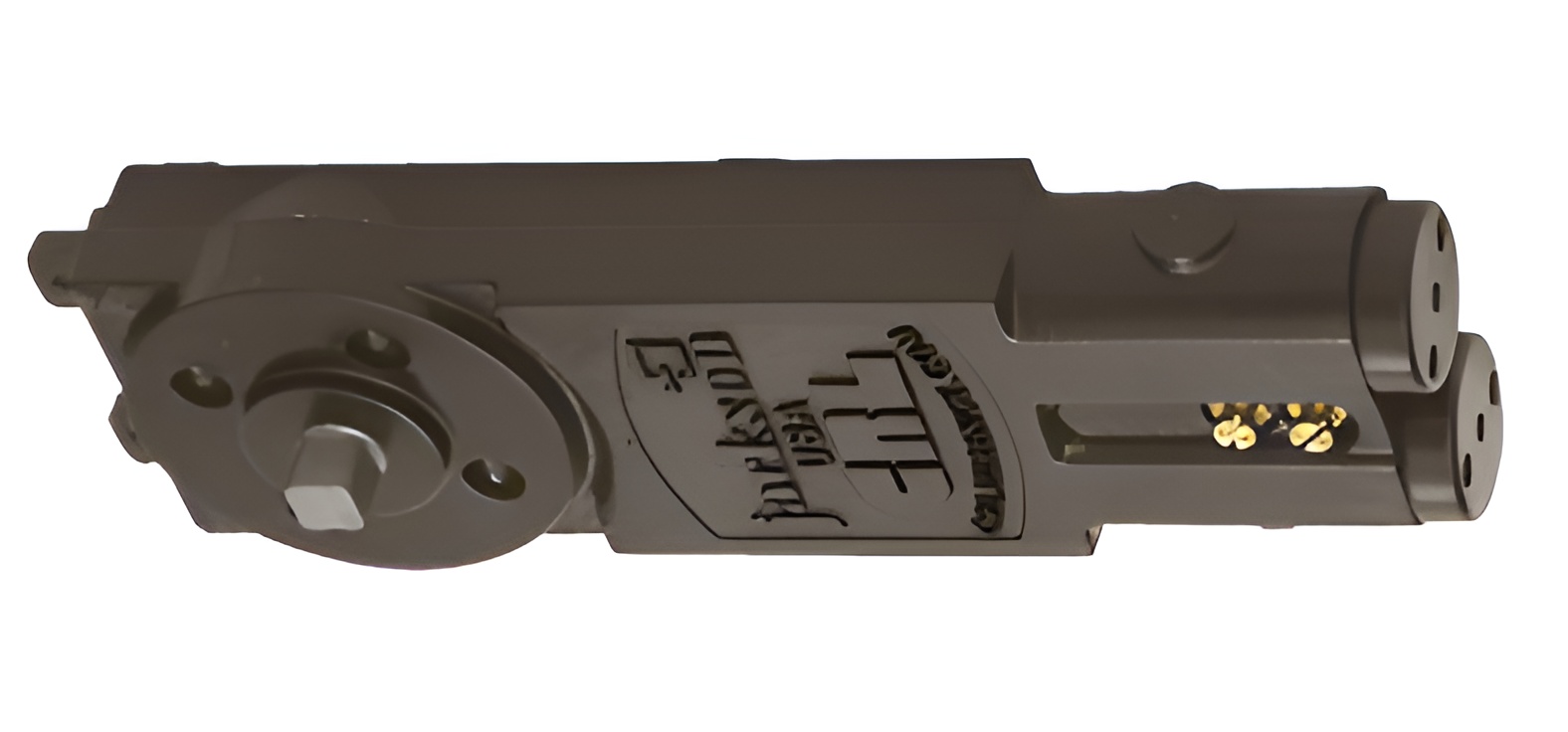

Jackson Heavy-Duty 90 Hold Open Overhead Concealed Closer Body
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Hold Open: 90°
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 42 in. (1066.8 mm)
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2 in. (12.7 mm)
Spring Size: Heavy Duty
UL Listed: Yes
