CRL 20101M17 Jackson Adjustable Spring Power Multi Size 105 No Hold Open Overhead Concealed Closer Body is designed to enhance the functionality of your doors with versatility and precision. This closer accommodates door widths ranging from 30" to 42" (762 mm to 1.07 m) and features an adjustable spring power system, allowing it to adapt from Size 1 (Barrier-Free) to Size 4 (Regular) based on your specific needs. Engineered for seamless integration, the closer can retrofit existing fixed spring closers and fits neatly into standard 1-3/4" x 4" (45 x 102 mm) header extrusions. The dual action valves ensure reliable closing and latching speeds, while the 105° no hold open feature provides added security and convenience. With standard and extended spindle models available, you can choose the perfect fit for your application. This overhead concealed closer is UL Listed and includes a 5-year limited warranty, ensuring both quality and peace of mind. Designed for double acting doors and capable of supporting up to 250 lbs. (113.4 kg), it is suitable for aluminum and hollow metal door types. Ensure compliance with A.D.A. requirements while enjoying the benefits of a robust and adjustable door closer solution.

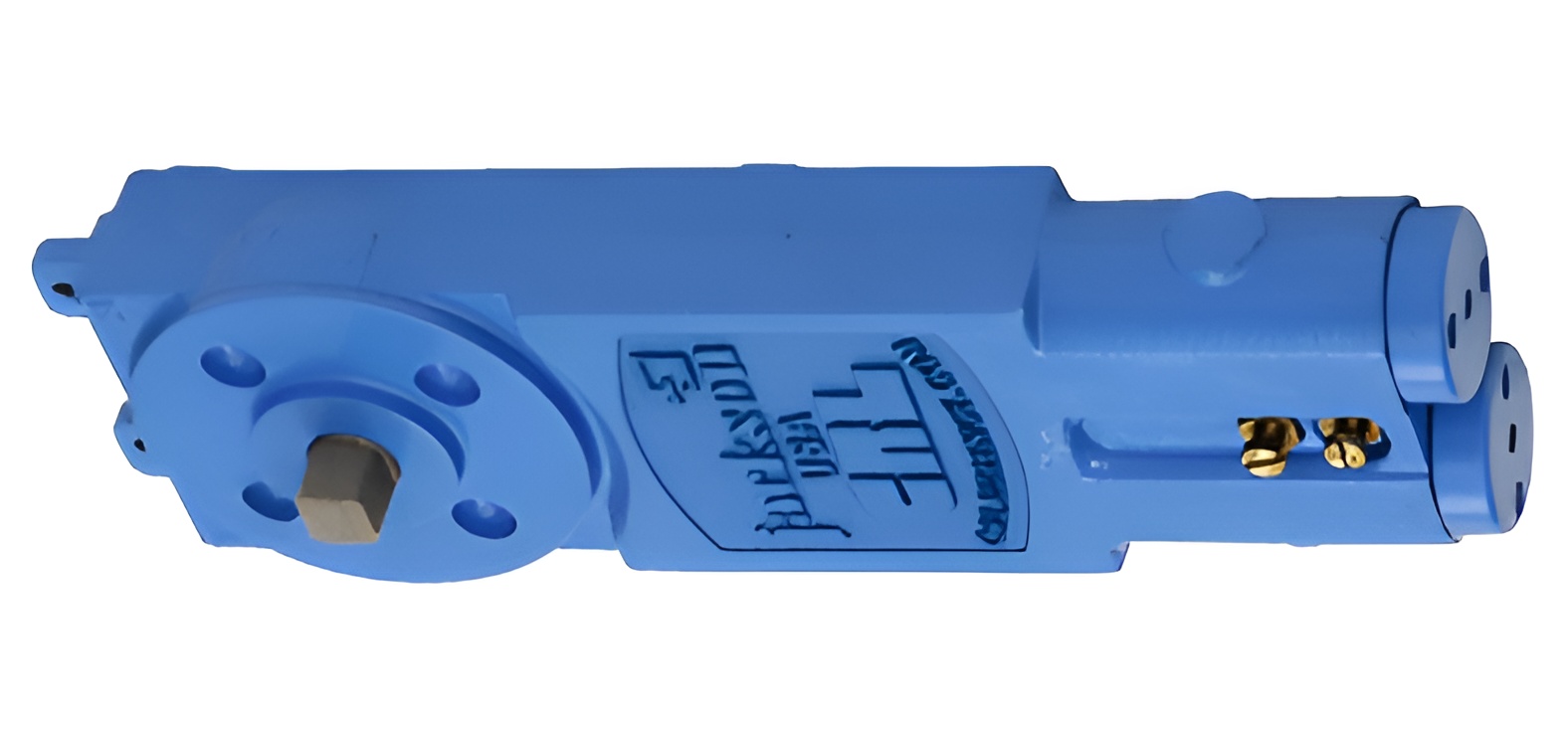

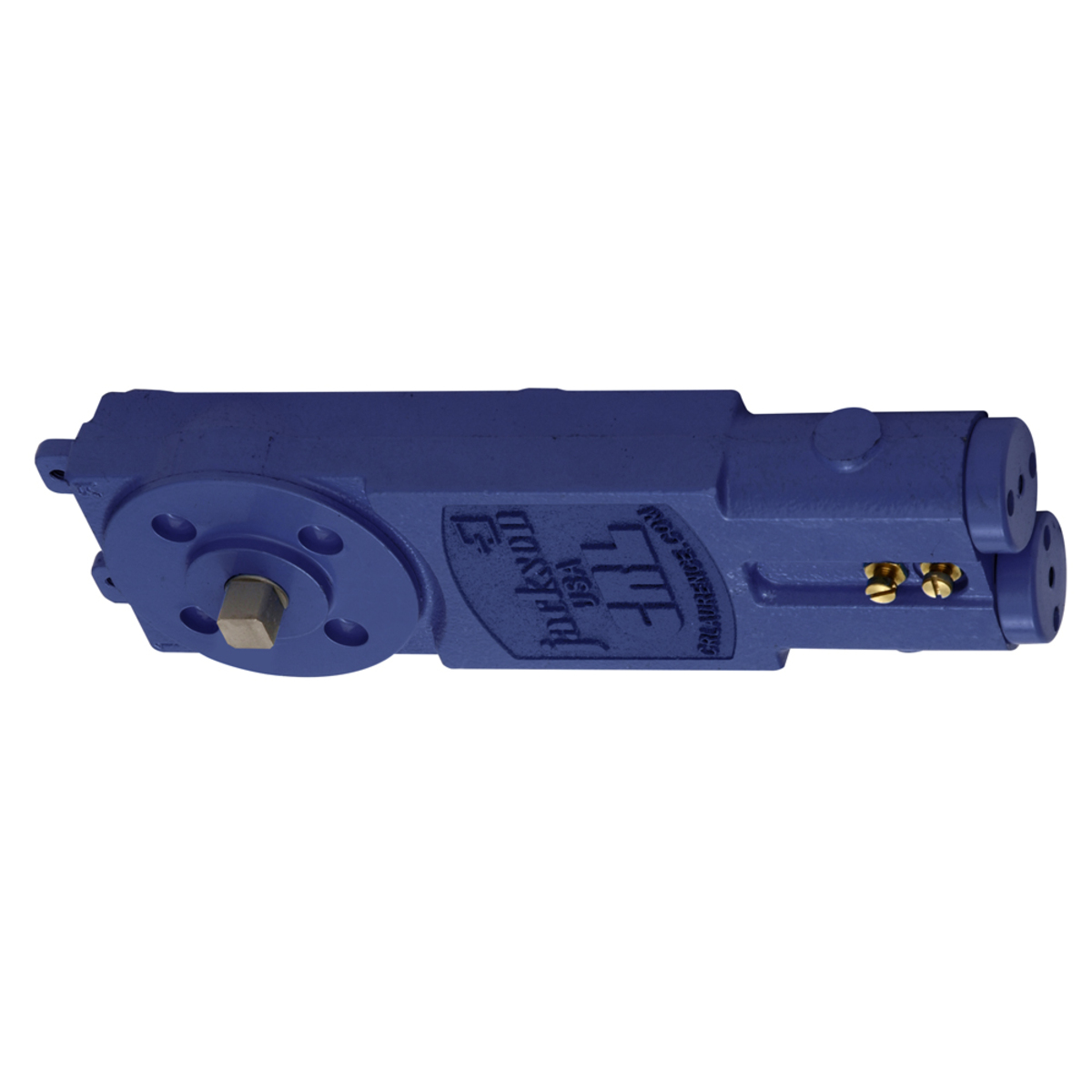

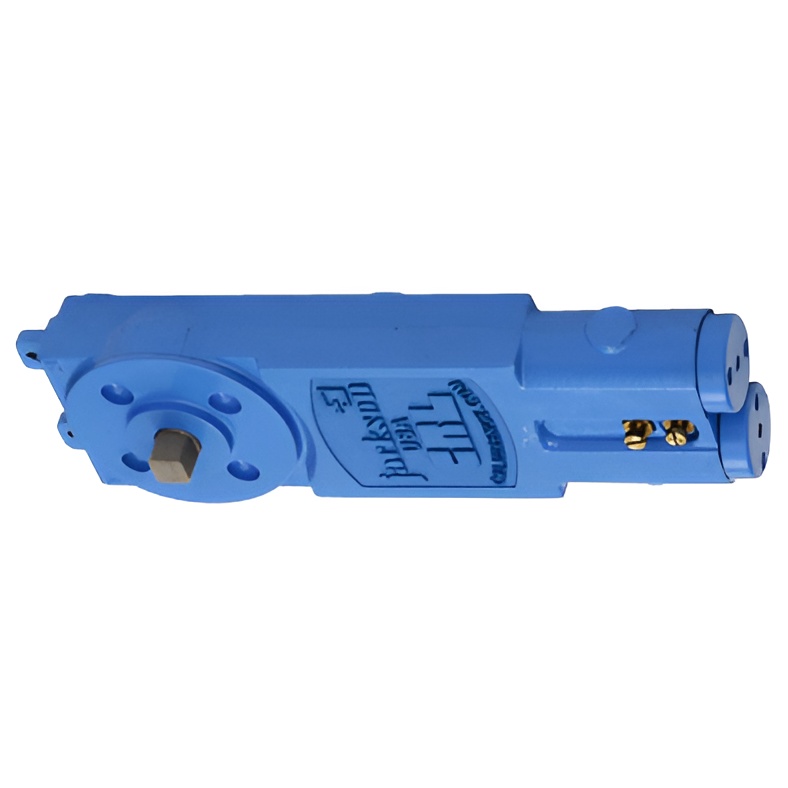

Jackson Adjustable Spring Power Multi Size 105 No Hold Open Overhead Concealed Closer Body
This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The closer features dual action valves for closing and latching speeds. 105° No Hold Open with fixed Adjustable Spring Power Multi Size. Door Closers fit into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with all Jackson® and similar style of Overhead Concealed Closers.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Americans with Disabilities Act: Yes
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 42 in. (1066.8 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
No Hold Open: 105°
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2 in. (12.7 mm)
Spring Size: Adjustable
UL Listed: Yes
