CRL 20101M19 Jackson Adjustable Concealed Overhead Closer Body, No Hold Open, Multi SizeCRL 20101M19 Jackson Adjustable Spring Power Multi Size 90 No Hold Open Overhead Concealed Closer Body is expertly designed for a variety of door applications, accommodating widths from 30" to 42" (762 mm to 1.07 m). This versatile closer features adjustable spring power, ranging from Size 1 (Barrier-Free) to Size 4 (Regular), making it suitable for different site conditions. The dual action valves enable precise control over the closing and latching speeds, ensuring a smooth, reliable operation. Ideal for use in standard 1-3/4" x 4" (45 x 102 mm) header extrusions, this closer is compatible with existing Jackson® and similar overhead concealed closers, facilitating easy retrofitting. With a maximum door weight capacity of 250 lbs. (113.4 kg) and a 90º no hold open function, it is perfect for double-acting doors, particularly those made from aluminum or hollow metal. The CRL 20101M19 is UL Listed and comes with a 5-year limited warranty, reflecting C.R. Laurence's commitment to quality and reliability. While it supports A.D.A. compliance, users should note potential limitations in closing force based on specific site conditions. For installation, please ensure you have the appropriate mounting clips, as they are not included.

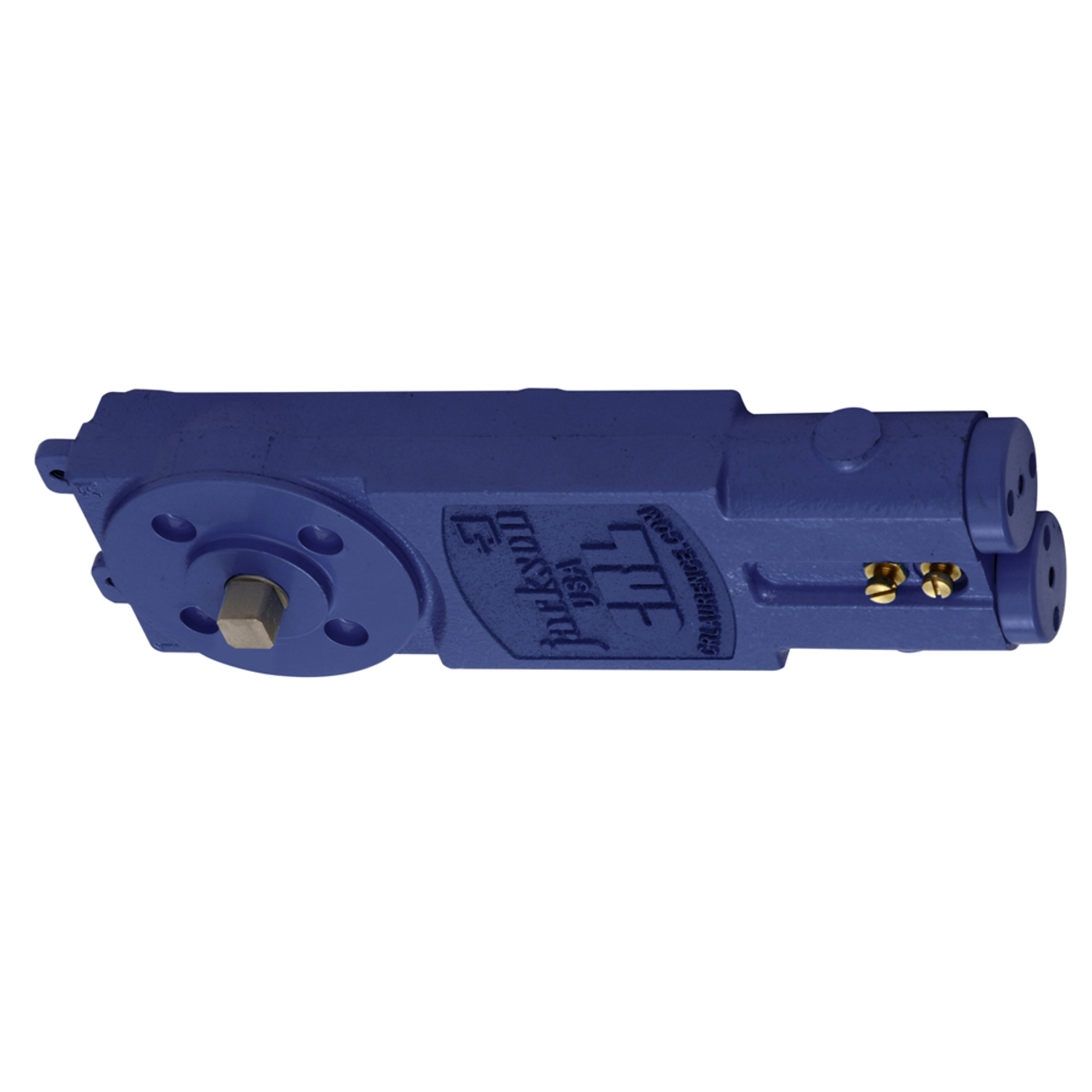

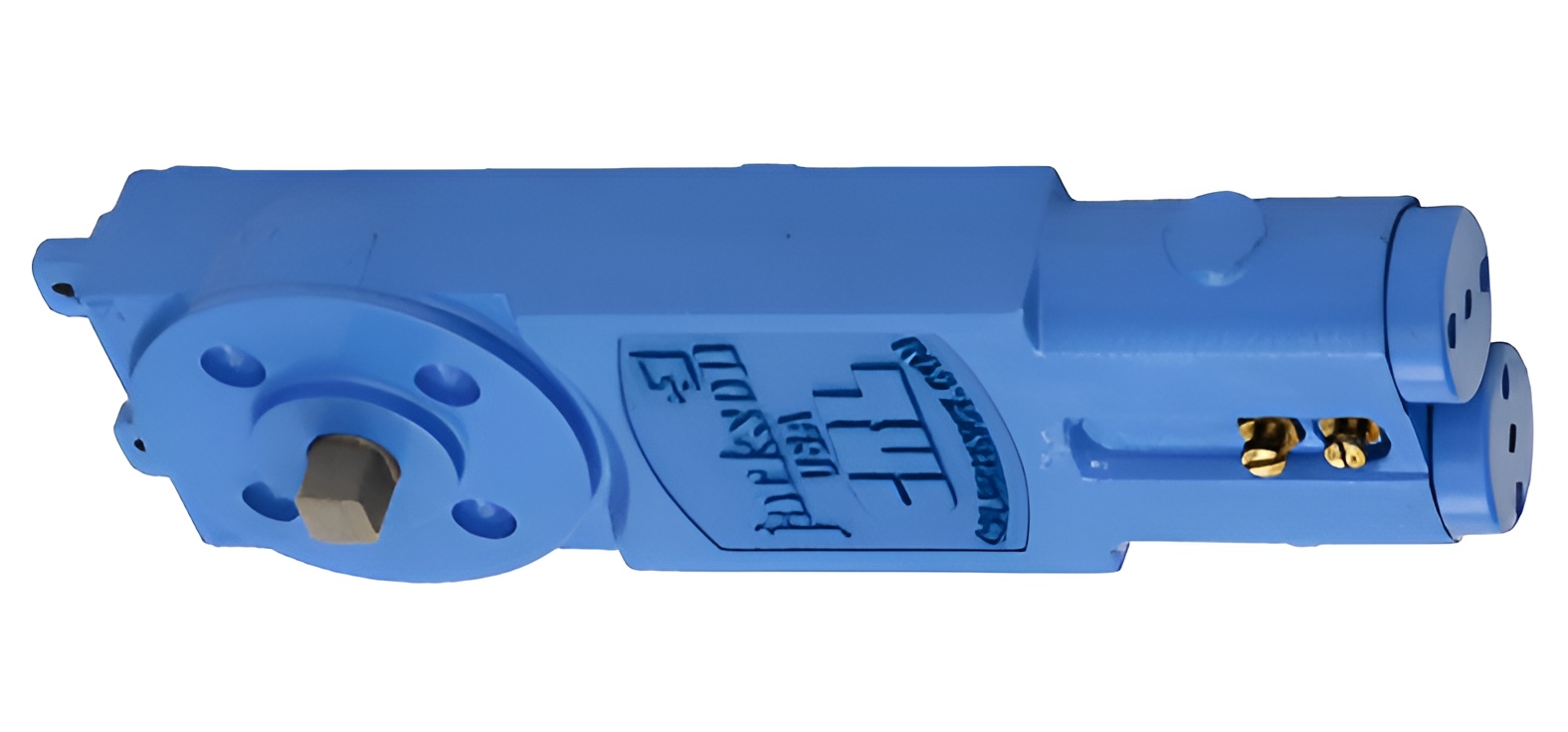

Jackson Adjustable Spring Power Multi Size 90 No Hold Open Overhead Concealed Closer Body
- Adjustable Spring Power Size 1 (Barrier-Free) to Size 4 (Regular)
- Can Retrofit Existing Fixed Spring Closers
- Standard and Extended Spindle Models
- 5 Year Limited Warranty
This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The closer features dual action valves for closing and latching speeds. 90º No Hold Open with Adjustable Spring Power Multi Size. Door Closers fit into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with all Jackson® and similar style of Overhead Concealed Closers.
A.D.A. NOTE: Although the Adjustable Spring Power Door Closer can be adjusted to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Mounting clips are not included with this closer body. Unless the existing mounting clips are used, you will need to purchase the appropriate clip package for your application. Contact Jackson® Technical Sales Department for assistance in selecting the correct Mounting Clip Package.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Americans with Disabilities Act: Yes
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 42 in. (1066.8 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
No Hold Open: 90°
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2 in. (12.7 mm)
Spring Size: Adjustable
UL Listed: Yes
