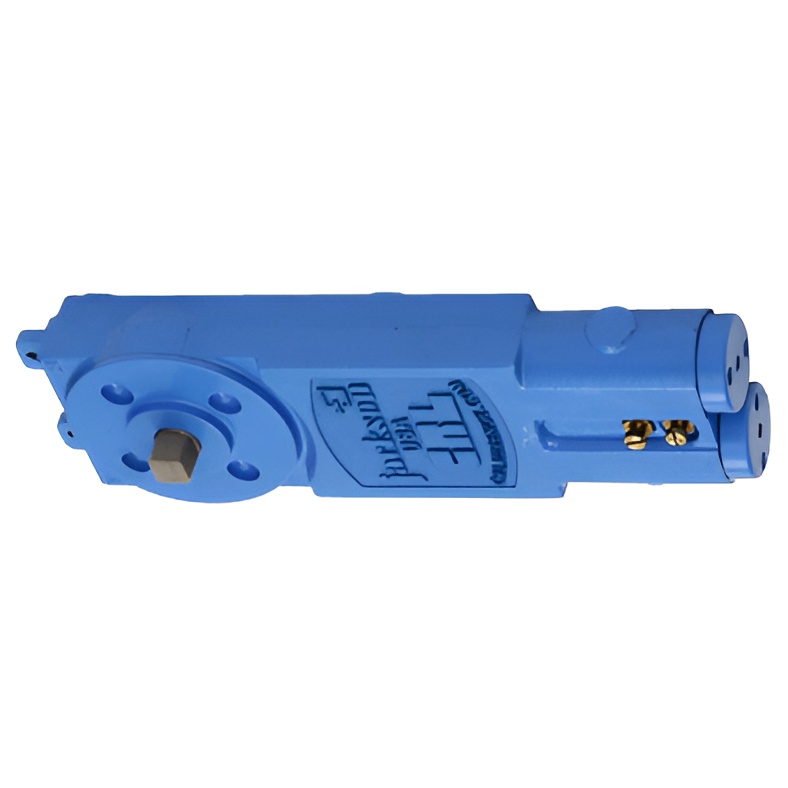

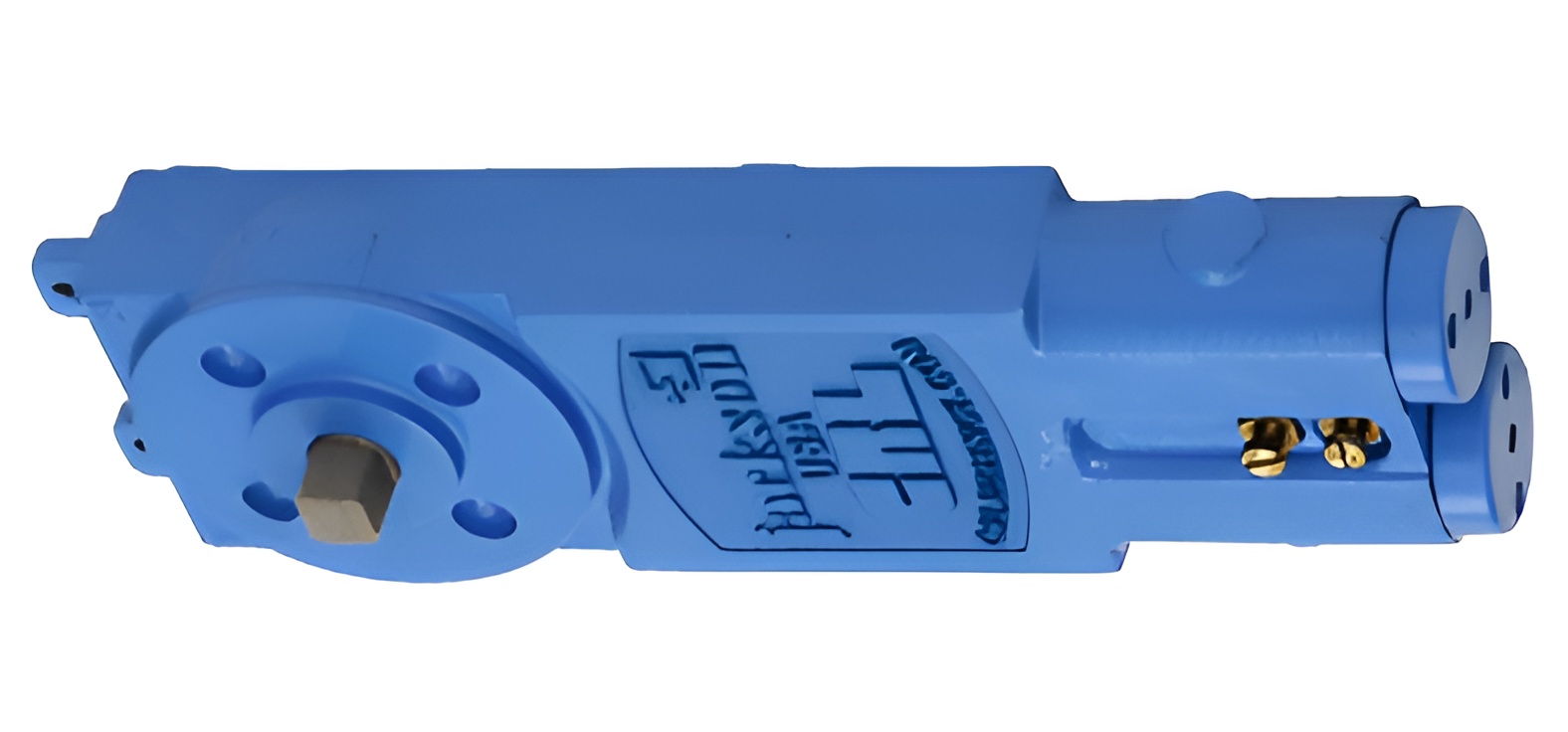

CRL 20101M20 Jackson Adjustable 90 Hold Open Overhead Concealed Closer BodyCRL 20101M20 Jackson Adjustable Spring Power Multi Size 90 Hold Open Overhead Concealed Closer Body offers a versatile solution for doors ranging from 30" to 42" wide, accommodating various professional applications. This overhead concealed closer allows for adjustable spring power settings from Size 1 (Barrier-Free) to Size 4 (Regular), ensuring optimal performance tailored to site conditions. With dual action valves, it effectively manages closing and latching speeds, providing reliable operation. Designed to fit standard 1-3/4" x 4" headers or larger, this closer can retrofit existing fixed spring closers, making it a flexible choice for upgrades. The 90º hold open feature enhances convenience, allowing doors to remain open when necessary. It supports a maximum door weight of 250 lbs and is suitable for aluminum and hollow metal doors. For added assurance, the closer body is UL Listed and comes with a 5-year limited warranty. However, it’s essential to note that while the adjustable spring power can help meet A.D.A. requirements, compliance may vary based on specific site conditions. Ensure you have the necessary mounting clips, as they are not included, and consult the Jackson® Technical Sales Department for assistance in selecting the appropriate clip package.
Jackson Adjustable Spring Power Multi Size 90 Hold Open Overhead Concealed Closer Body
- Adjustable Spring Power Size 1 (Barrier-Free) to Size 4 (Regular)
- Can Retrofit Existing Fixed Spring Closers
- Standard and Extended Spindle Models
- 5 Year Limited Warranty
This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The closer features dual action valves for closing and latching speeds. 90º Hold Open with fixed adjustable spring power multi size. Door Closers fit into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with all Jackson® and similar style of Overhead Concealed Closers.
A.D.A. NOTE: Although the Adjustable Spring Power Door Closer can be adjusted to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Mounting clips are not included with this closer body. Unless the existing mounting clips are used, you will need to purchase the appropriate clip package for your application. Contact Jackson® Technical Sales Department for assistance in selecting the correct Mounting Clip Package.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Americans with Disabilities Act: Yes
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Hold Open: 90°
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 42 in. (1066.8 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spring Length: 1/2 in. (12.7 mm)
Spring Size: Adjustable
UL Listed: Yes
