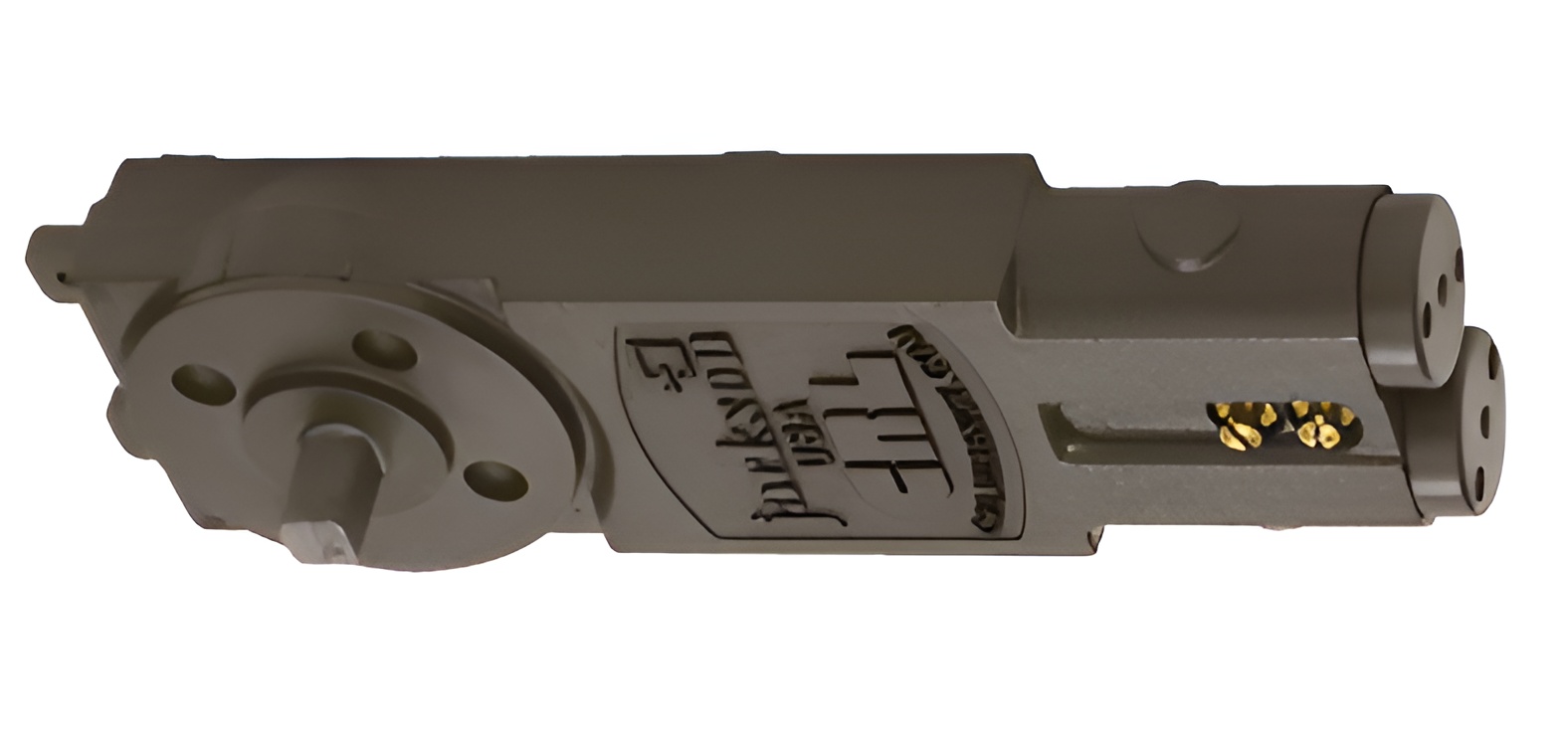

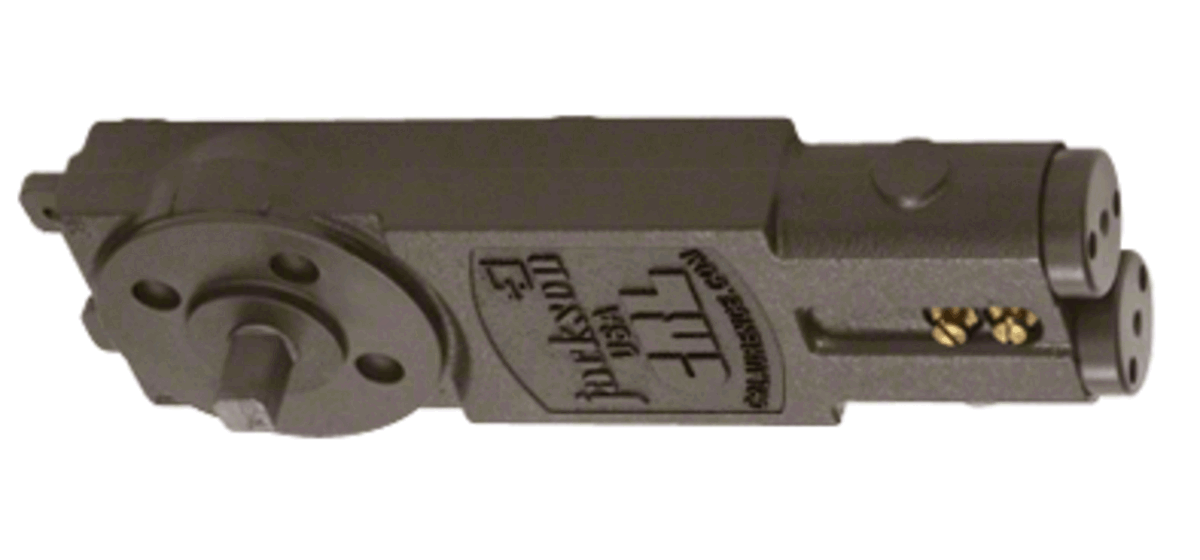

C.R. Laurence Jackson® Regular Duty 7/8" Extended Spindle 105º No Hold Open Overhead Concealed Closer Body is designed for seamless integration in various architectural applications. Featuring a 7/8" (22 mm) long spindle, this closer is ideal for use with Patch Fittings and Rail Hardware. Its standard dual action valves allow for precise control over closing and latching speeds, ensuring reliable operation for high-traffic areas. With a fixed regular duty spring size, this closer supports door heights up to 96 inches (2438.4 mm) and can accommodate a maximum door weight of 250 lbs. (113.4 kg). The 105º no hold open functionality offers flexibility without compromising safety, while the overhead concealed design maintains a clean aesthetic by hiding the mechanism within the header. This model fits into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions and is interchangeable with all Jackson® and similar brands, making it a versatile choice for your projects. Please note that mounting clips are not included and should be purchased separately. Backed by a 5-year limited warranty, this closer represents a reliable solution for both aluminum and hollow metal doors, ensuring durability and performance in any setting.
Jackson Regular Duty 7/8" Extended Spindle 105 No Hold Open Overhead Concealed Closer Body
This CRL Jackson® Regular Duty 7/8" Extended Spindle 105º No Hold Open Overhead Concealed Closer Body features a 7/8" (22 mm) long spindle, the preferred length when used in conjunction with Patch Fittings and Rail Hardware. Standard dual action valves for closing and latching speeds. 105º No Hold Open with fixed regular duty spring size. Door Closers fit into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with all Jackson® and similar brands of Overhead Concealed Closers.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 42 in. (1066.8 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
No Hold Open: 105°
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 7/8 in. (22.2 mm)
Spring Size: Regular Duty
UL Listed: Yes
