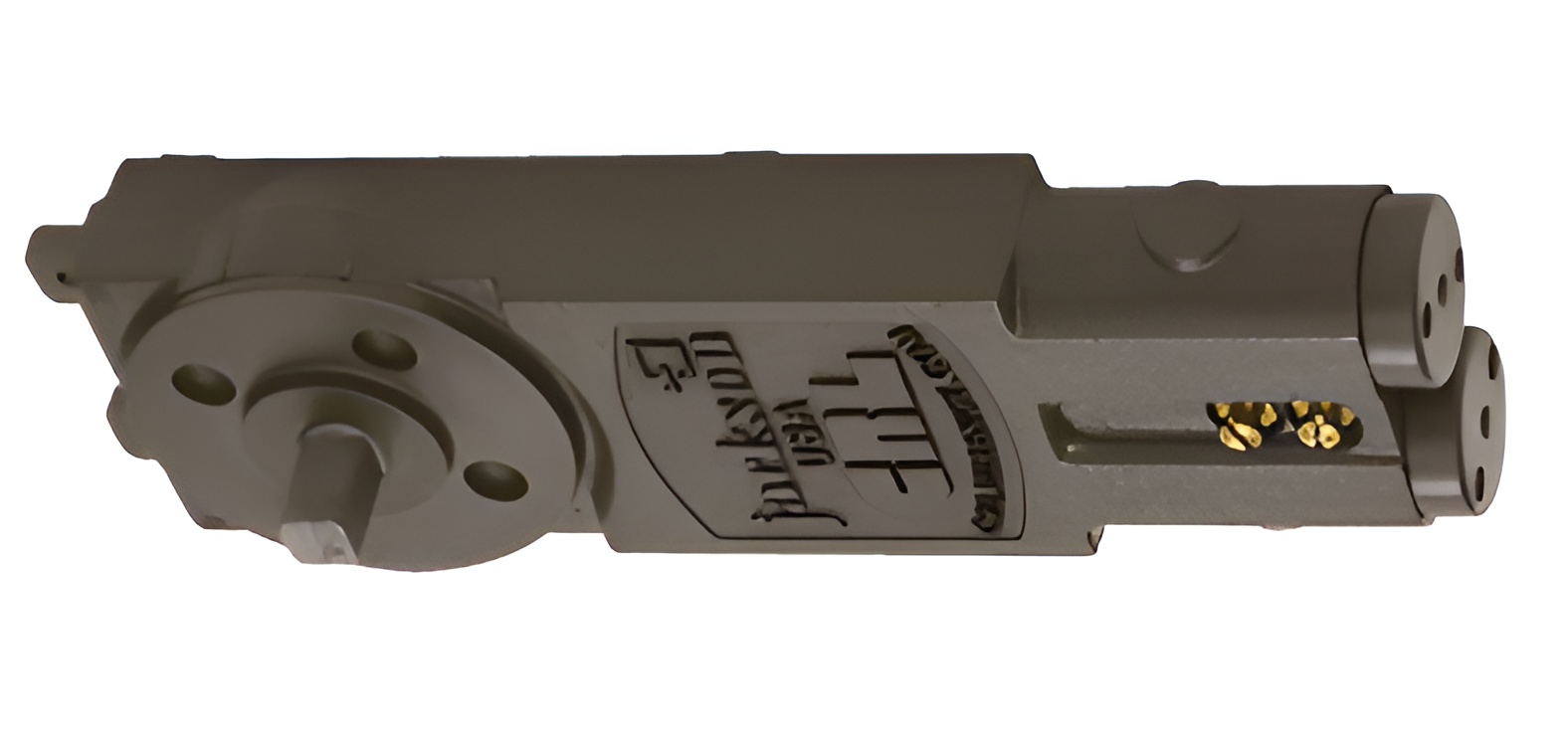

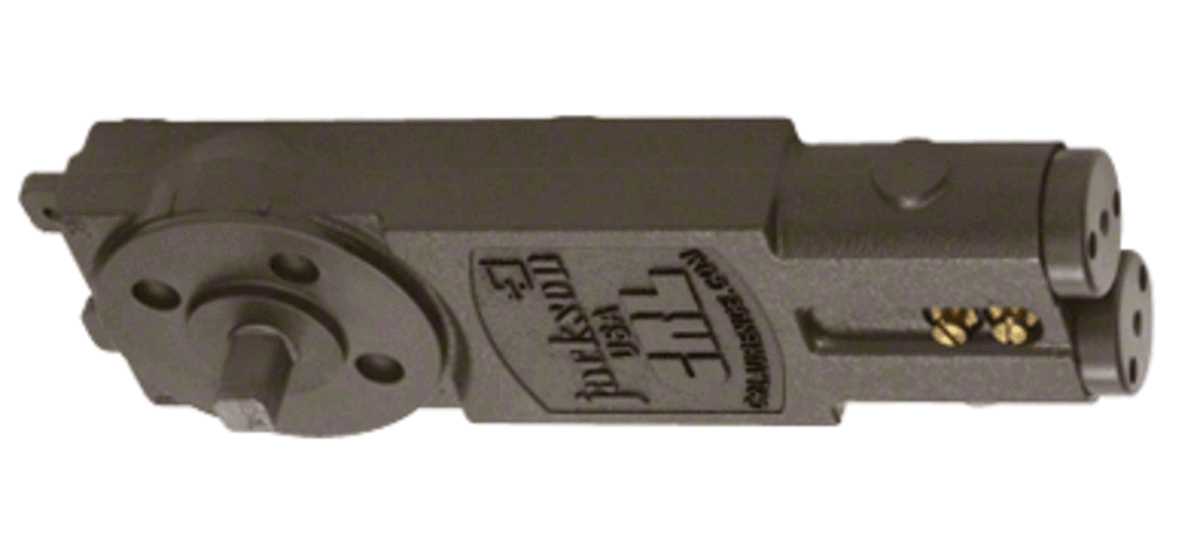

C.R. Laurence Jackson® Regular Duty 7/8" Extended Spindle 90º No Hold Open Overhead Concealed Closer Body is designed for seamless integration with your door systems. Featuring a 7/8" (22 mm) long spindle, this closer body is ideal for use with Patch Fittings and Rail Hardware, ensuring a reliable and efficient operation. The standard dual action valves allow for customizable closing and latching speeds, while the fixed regular duty spring size provides consistent performance. With a body height of 1-11/16 in. (42.9 mm), body length of 11-5/8 in. (295.3 mm), and width of 3-11/16 in. (93.7 mm), it fits neatly into standard 1-3/4" x 4" (45 x 102 mm) header extrusions. Suitable for doors up to 250 lbs. (113.4 kg) and 96 in. (2438.4 mm) in height, this closer accommodates both aluminum and hollow metal door types. The 90º no hold open design enhances accessibility without compromising aesthetics. It is UL Listed for safety and comes with a 5-year limited warranty, ensuring peace of mind with your investment. Note that mounting clips are not included, so be sure to acquire the appropriate clip package for installation.
Jackson Regular Duty 7/8" Extended Spindle 90 No Hold Open Overhead Concealed Closer Body
This CRL Jackson® Regular Duty 7/8" Extended Spindle 90º No Hold Open Overhead Concealed Closer Body features a 7/8" (22 mm) long spindle, the preferred length when used in conjunction with Patch Fittings and Rail Hardware. Standard dual action valves for closing and latching speeds. 90º No Hold Open with fixed regurlar duty spring size. Door Closers fit into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with all Jackson® and similar brands of Overhead Concealed Closers.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 42 in. (1066.8 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
No Hold Open: 90°
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 7/8 in. (22.2 mm)
Spring Size: Regular Duty
UL Listed: Yes
