C.R. Laurence Jackson Regular Duty 7/8" Extended Spindle 90º Hold Open Overhead Concealed Closer Body is designed for seamless integration into your door systems, providing reliable performance and elegant functionality. Featuring a 7/8" (22 mm) long spindle, this closer is ideally suited for use with Patch Fittings and Rail Hardware, ensuring a secure and effective operation. The standard dual action valves allow for adjustable closing and latching speeds, while the fixed regular duty spring size guarantees durable operation. Designed to fit into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions, this closer is versatile and compatible with all Jackson® and similar brands of overhead concealed closers. With a maximum door weight capacity of 250 lbs. (113.4 kg) and a hold open feature at 90º, this closer accommodates both interior and exterior doors, measuring up to 42" (1066.8 mm) wide for exteriors and 36" (914.4 mm) wide for interiors. The unit is UL Listed, ensuring compliance with safety standards. Please note that mounting clips are not included; consult Jackson® Technical Sales for the appropriate clip package. Backed by a 5-year limited warranty, this product is a robust choice for any architectural project.

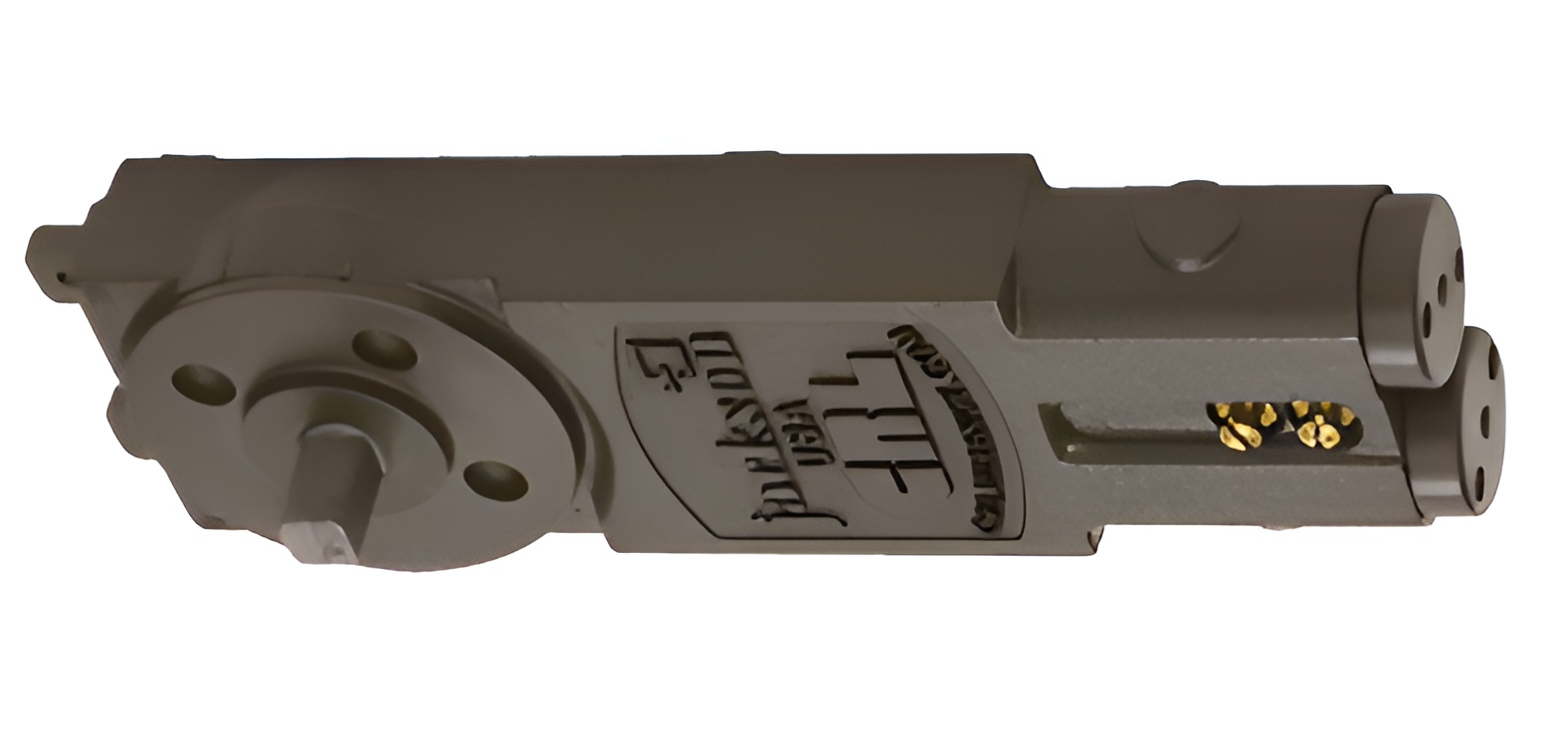

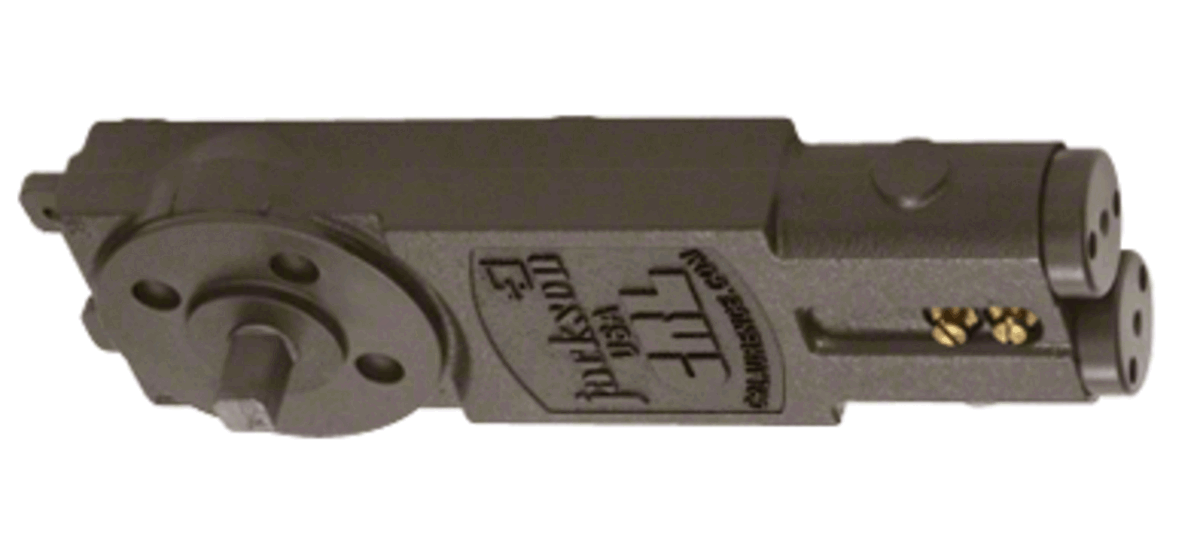

Jackson Regular Duty 7/8" Extended Spindle 90 Hold Open Overhead Concealed Closer Body
This CRL Jackson® Regular Duty 7/8" Extended Spindle 90º Hold Open Overhead Concealed Closer Body features a 7/8" (22 mm) long spindle, the preferred length when used in conjunction with Patch Fittings and Rail Hardware. Standard dual action valves for closing and latching speeds. 90º Hold Open with fixed regular duty spring size. Door Closers fit into standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with all Jackson® and similar brands of Overhead Concealed Closers.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Hold Open: 90°
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 42 in. (1066.8 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 7/8 in. (22.2 mm)
Spring Size: Regular Duty
UL Listed: Yes
