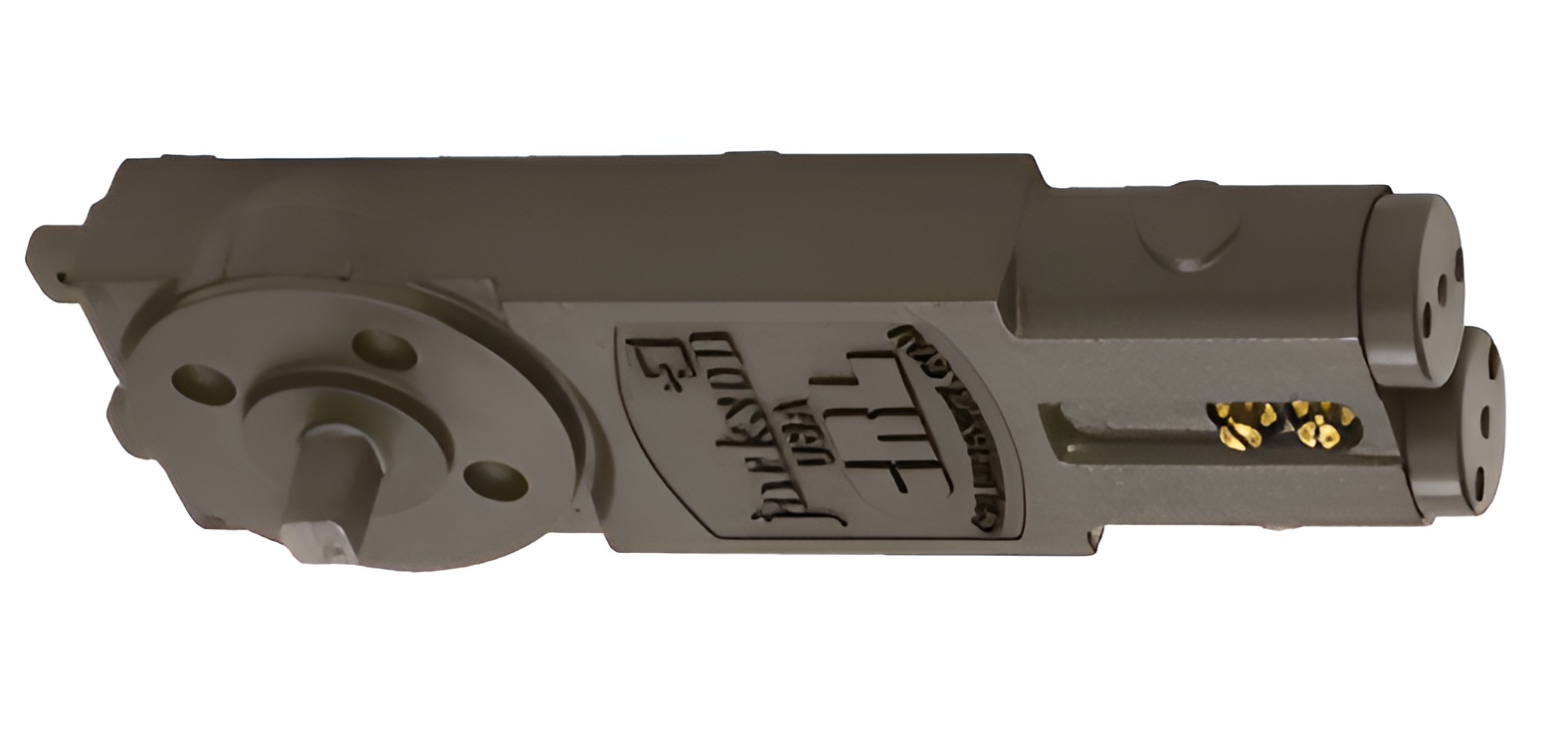

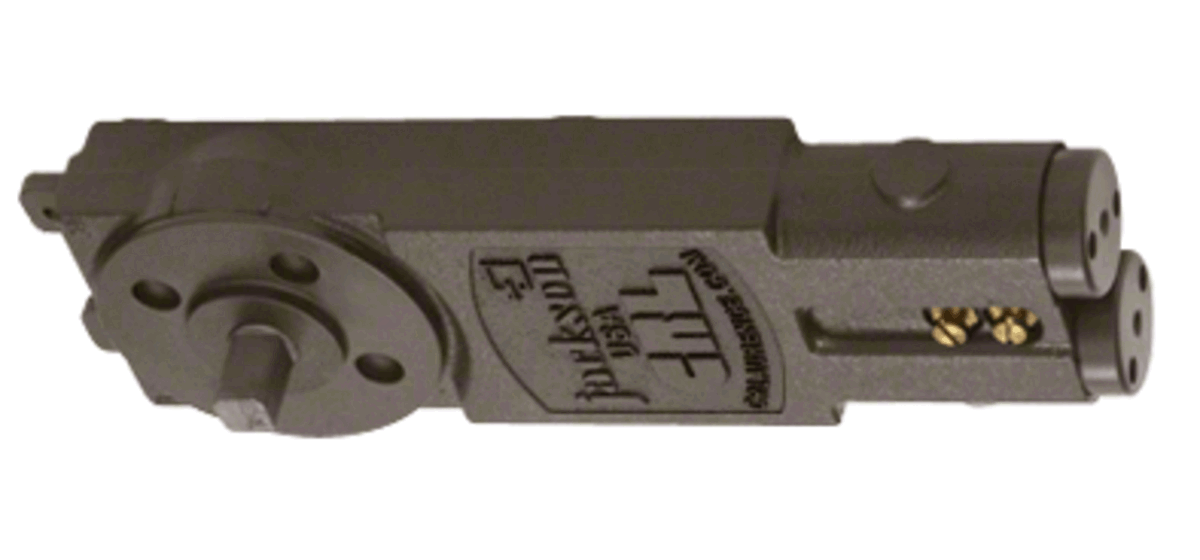

CRL 20104M09 Jackson 7/8" Heavy-Duty Extended Spindle No Hold Open Concealed Closer Body

CRL 20104M09 Jackson Heavy-Duty 7/8" Extended Spindle 105º No Hold Open Overhead Concealed Closer Body offers exceptional performance for doors ranging from 36" to 48" wide. Engineered with a 7/8" (22 mm) long spindle, this closer is ideal for use with patch fittings and rail hardware, ensuring seamless operation. It features standard dual action valves for smooth closing and latching speeds, providing reliability under heavy use. Designed for double-acting doors, this closer supports a maximum door weight of 250 lbs. (113.4 kg) and is suitable for both aluminum and hollow metal doors. The 105º no hold open feature allows for a fixed heavy-duty spring size, making it a practical choice for high-traffic areas. With dimensions of 1-11/16" (42.9 mm) in height, 11-5/8" (295.3 mm) in length, and 3-11/16" (93.7 mm) in width, it fits into standard 1-3/4" x 4" (45 x 102 mm) header extrusions. Please note that mounting clips are not included, so ensure to purchase the appropriate clip package for your installation needs. This product is UL Listed and complies with safety standards, making it a trustworthy choice for professional applications.

Jackson Heavy-Duty 7/8" Extended Spindle 105 No Hold Open Overhead Concealed Closer Body

• Suitable for Doors From 36" to 48" (914 to 1219 mm) Wide
• Longer 7/8" Spindle Required for Use with Patch Fittings and Rail Hardware

Resources

• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
• OHC Installation Instructions 11M0193 OHC Door Closer.pdf
• OHC Installation Template 10-137.pdf
