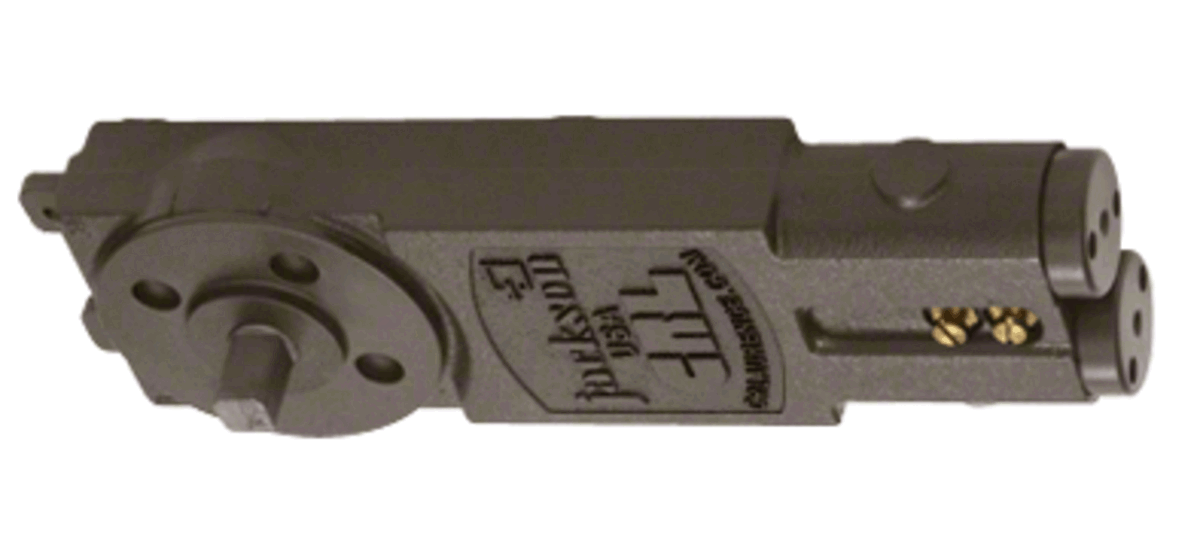

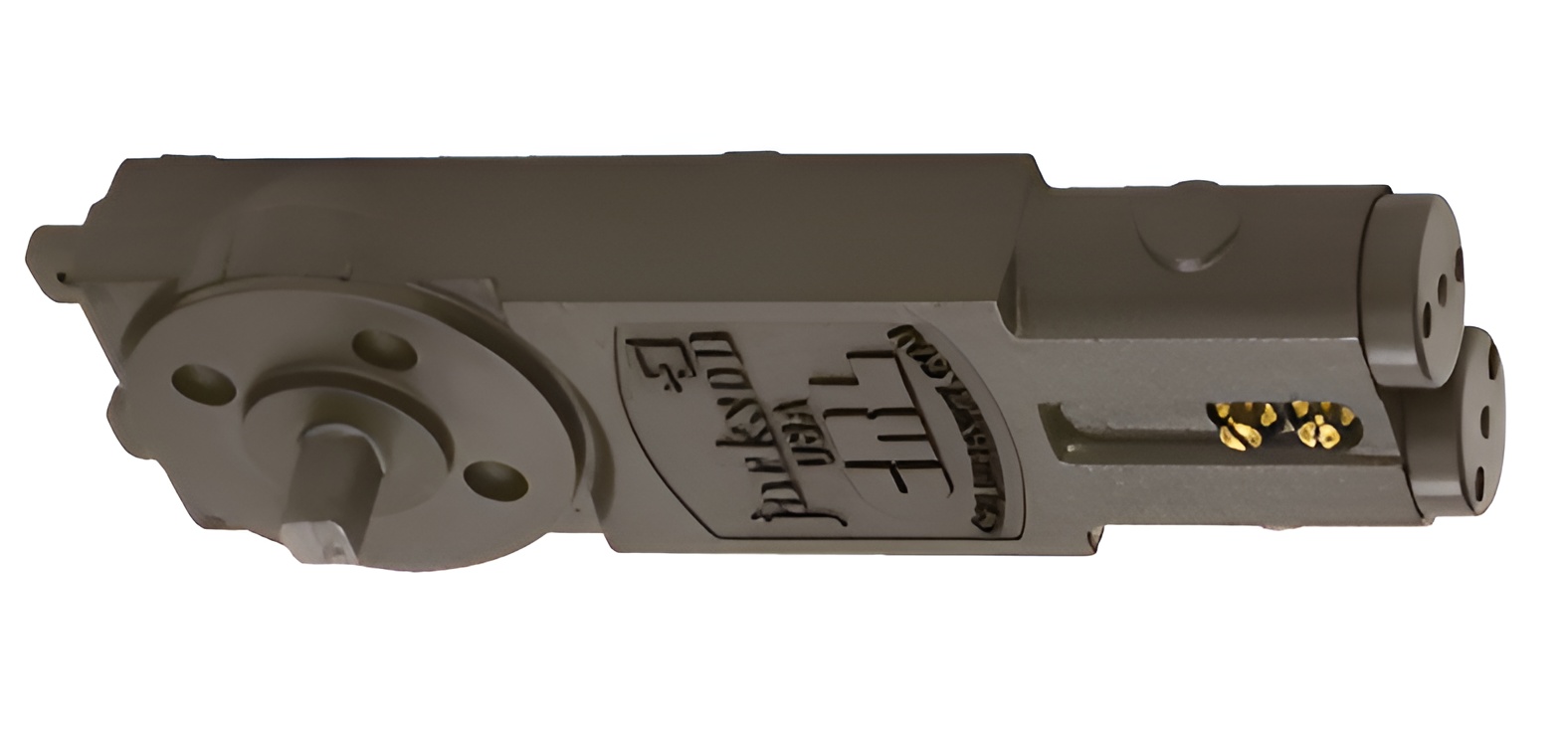

CRL 20104M10 Jackson 7/8" Heavy-Duty Extended Spindle Overhead Concealed Closer Body

C.R. Laurence Jackson Heavy-Duty 7/8" Extended Spindle 105 Hold Open Overhead Concealed Closer Body is engineered for durability and performance in high-traffic environments. This overhead concealed closer accommodates doors ranging from 36" to 48" wide, making it versatile for various applications. The 7/8" long spindle is specifically designed for compatibility with Patch Fittings and Rail Hardware, ensuring seamless integration into your door systems. This closer features standard dual action valves that allow for adjustable closing and latching speeds, providing flexibility to meet the demands of any space. With a 105º hold open capability and a fixed heavy-duty spring size, it ensures reliable operation while maintaining a clean aesthetic. This unit fits into standard 1-3/4" x 4" or larger header extrusions and is interchangeable with all Jackson® and similar brands of overhead concealed closers. Please note that mounting clips are not included; you will need to purchase the appropriate clip package for installation. For assistance in selecting the correct mounting clips, contact the Jackson® Technical Sales Department. Built for doors weighing up to 250 lbs, this closer is UL Listed, ensuring compliance with safety standards. Elevate your project with the reliability and performance of C.R. Laurence’s heavy-duty closer.

Jackson Heavy-Duty 7/8" Extended Spindle 105 Hold Open Overhead Concealed Closer Body

• Suitable for Doors From 36" to 48" (914 to 1219 mm) Wide
• Longer 7/8" Spindle Required for Use with Patch Fittings and Rail Hardware

Resources

• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
• OHC Installation Instructions 11M0193 OHC Door Closer.pdf
• OHC Installation Template 10-137.pdf
