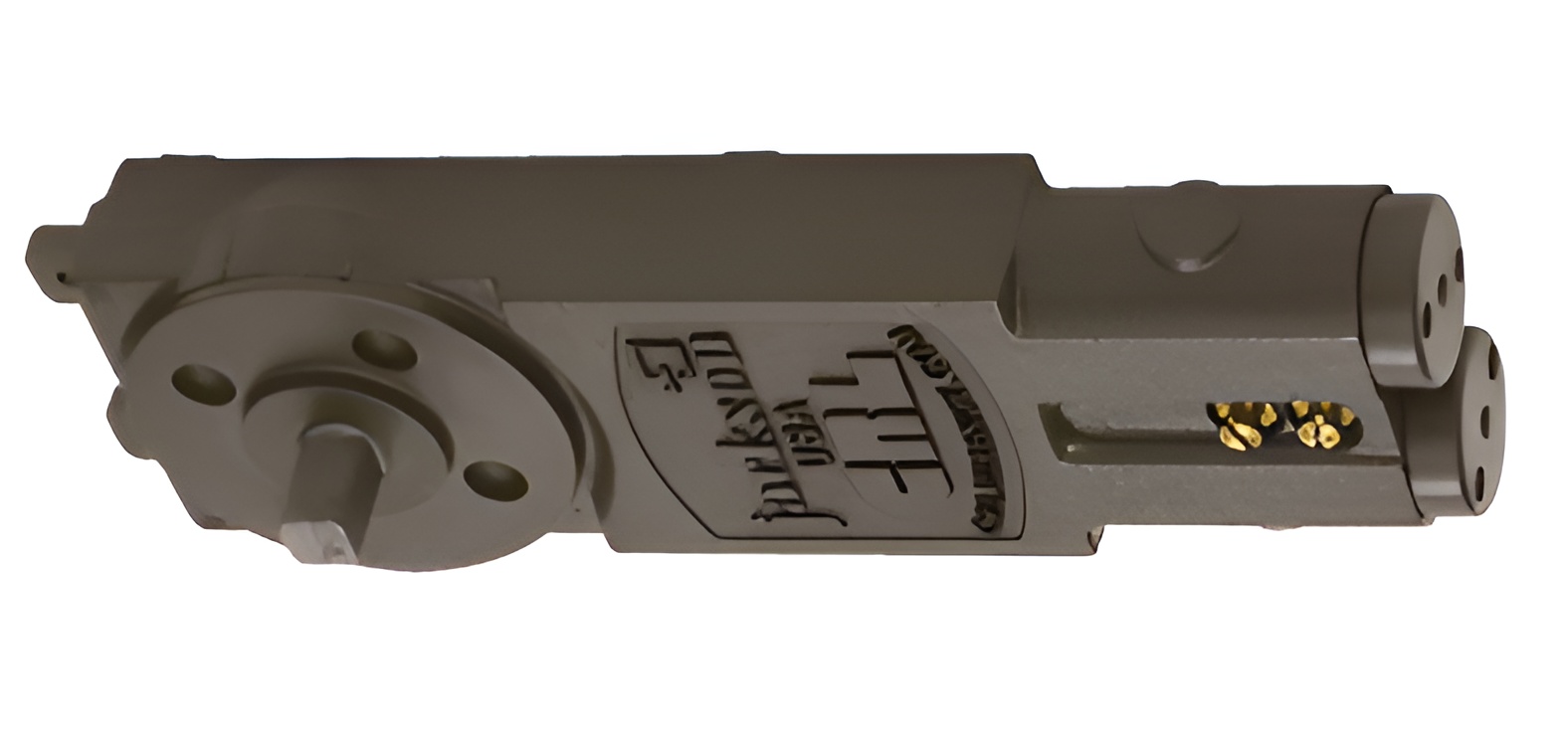

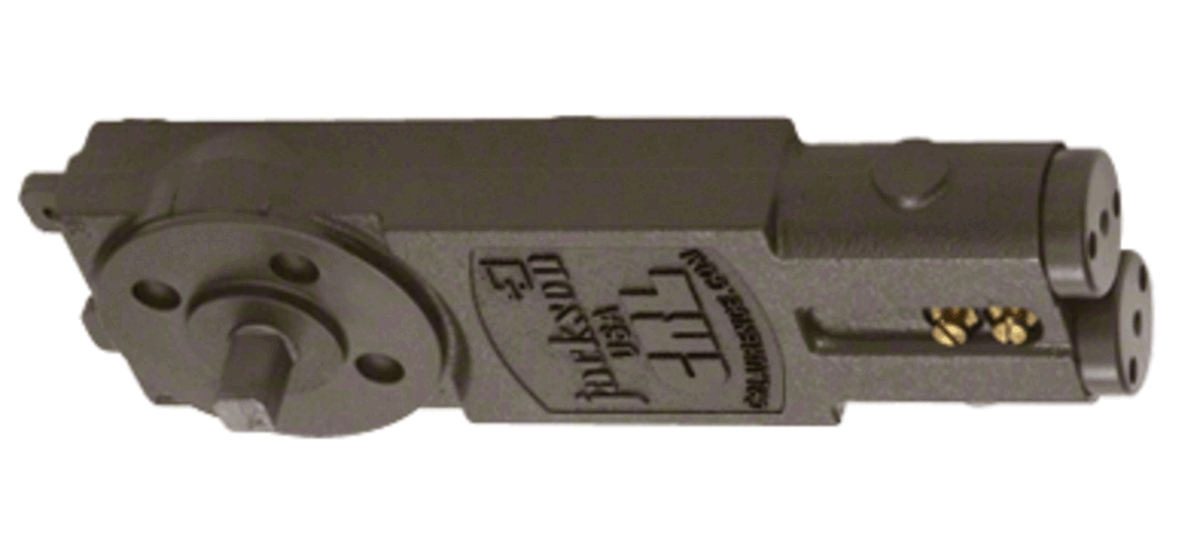

CRL 20104M11 Jackson Heavy-Duty 7/8" Extended Spindle Concealed Closer Body

C.R. Laurence Jackson Heavy-Duty 7/8" Extended Spindle 90º No Hold Open Overhead Concealed Closer Body is designed for maximum performance in commercial and institutional settings. Ideal for doors ranging from 36" to 48" wide, this closer features a robust 7/8" spindle, ensuring compatibility with patch fittings and rail hardware. Its dual-action valve system allows for precise control over closing and latching speeds, making it a reliable choice for high-traffic areas. Constructed to fit standard header extrusions measuring 1-3/4" x 4" or larger, this closer body accommodates doors up to 250 lbs, providing strength and durability. The heavy-duty spring size guarantees dependable operation, while the 90º no-hold-open feature enhances security and ease of use. For installation, please note that mounting clips are not included; utilizing existing clips or purchasing the appropriate clip package is essential for successful setup. The closer is UL listed, further assuring its compliance with safety standards. With a body height of 1-11/16 in. and a length of 11-5/8 in., this overhead concealed closer is a practical solution for aluminum and hollow metal doors, merging functionality with understated elegance.

Jackson Heavy-Duty 7/8" Extended Spindle 90 No Hold Open Overhead Concealed Closer Body

• Suitable for Doors From 36" to 48" (914 to 1219 mm) Wide
• Longer 7/8" Spindle Required for Use with Patch Fittings and Rail Hardware

Resources

• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
• OHC Installation Instructions 11M0193 OHC Door Closer.pdf
• OHC Installation Template 10-137.pdf
