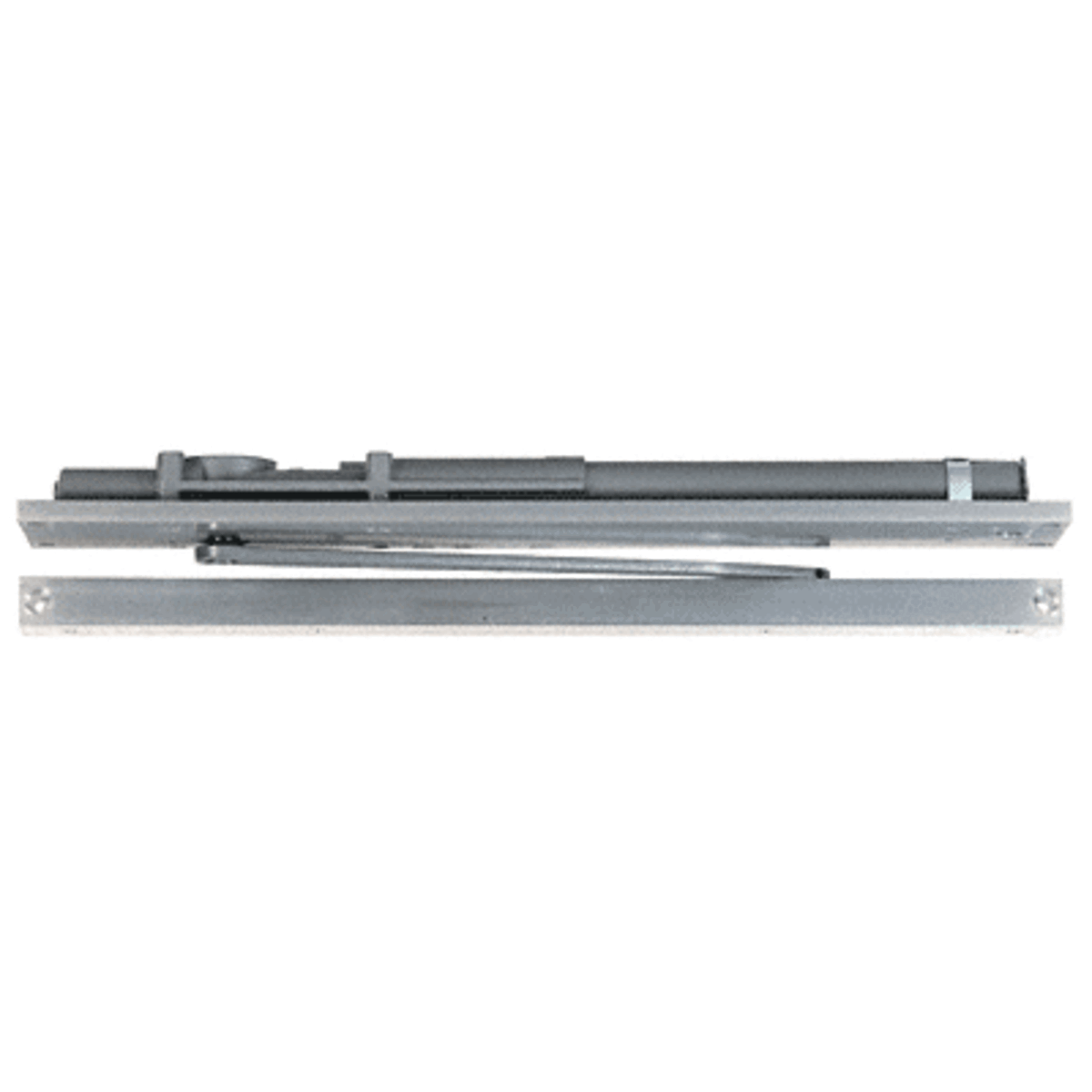

C.R. Laurence LCN 2031LAL Overhead Concealed ADA Spring Size 1 Left Hand No Hold Open Closer is engineered for reliable performance in high-traffic environments. This heavy-duty closer is designed to fit a minimum transom size of 1-3/4" x 4" (44.5 x 102 mm), making it ideal for both commercial and residential applications. Certified to ANSI Standard A156.4, Grade 1, it ensures durability and compliance with industry standards. The LCN 2031LAL features a single lever arm and roller assembly that provides smooth and quiet door operation, enhancing user experience. With UL and cUL listings for self-closing doors without hold-open functionality, this closer meets the stringent requirements of the Americans with Disabilities Act (ADA), accommodating door heights up to 96" (2438.4 mm) and widths up to 36" (914.4 mm) for both interior and exterior settings. The product's body dimensions are 1-5/8" in height, 20-5/8" in length, and 3-23/32" in width, making it compact yet powerful. Additional features include a slide track length of 22-1/2" (571.5 mm) and a spring size of 5, ensuring precise control and functionality. Choose the LCN 2031LAL for a blend of safety, efficiency, and sophisticated design.
LCN Overhead Concealed ADA Spring Size 1 Left Hand No Hold Open Closer Aluminum
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Americans with Disabilities Act: Yes
Body Height: 1-5/8 in. (41.3 mm)
Body Length: 20-5/8 in. (523.9 mm)
Body Widt: 3-23/32 in. (94.5 mm)
Body Width: 3-23/32 in. (94.5 mm)
Case Quantity: 2
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Cover Plate Length: 21-7/8 in. (555.6 mm)
Cover Plate Width: 4 in. (101.6 mm)
Door Height: 96 in. (2438.4 mm)
Handing: Left Hand
Hold Open Option Available: Yes
Maximum Door Width - Exterior: 36 in. (914.4 mm)
Maximum Door Width - Interior: 36 in. (914.4 mm)
Recommended Door Type: Aluminum,Hollow Metal
Shipping Limitations: None
Slide Track Depth: 1-3/8 in. (34.9 mm)
Slide Track Length: 22-1/2 in. (571.5 mm)
Spring Size: 5
UL Listed: Yes
