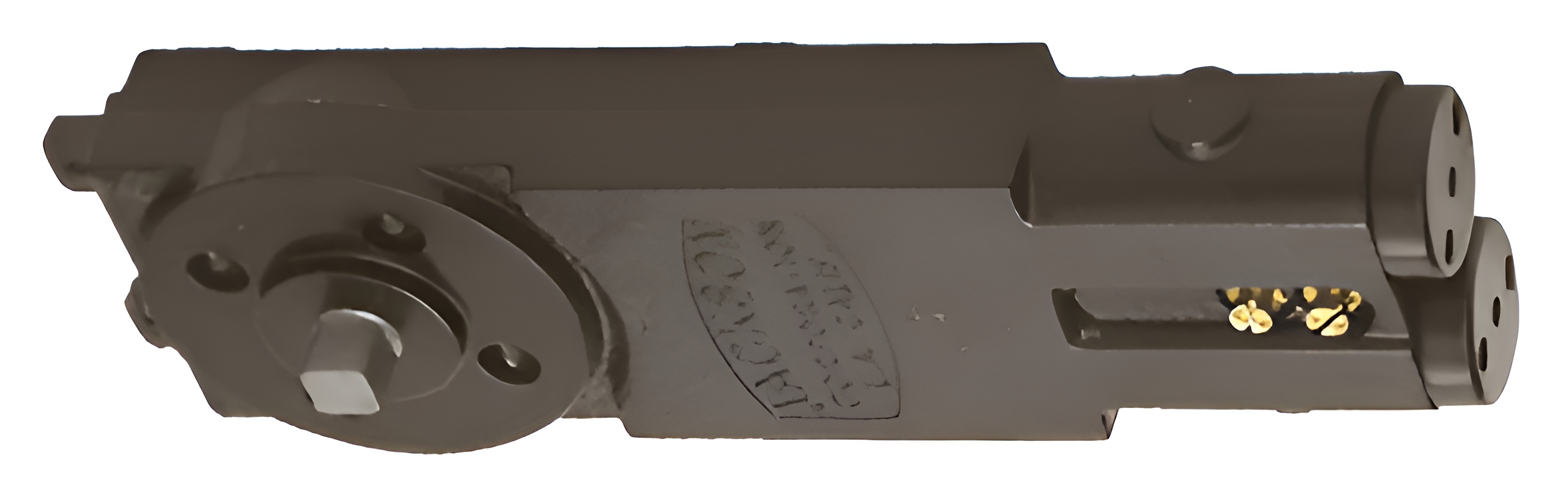

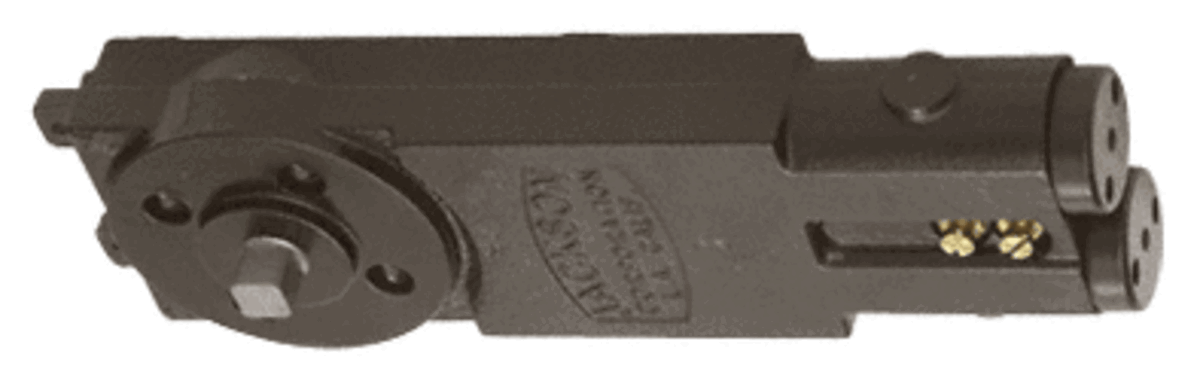

C.R. Laurence 20330P Jackson Dummy Closer is an ideal solution for use as a top pivot, designed to meet the needs of various architectural applications. This dummy closer is specifically crafted to function solely as a pivot, containing no hydraulic fluid, which simplifies installation and maintenance. With a body height of 1-11/16 inches (42.9 mm), a length of 11-5/8 inches (295.3 mm), and a width of 3-11/16 inches (93.7 mm), this overhead concealed closer is engineered to support doors with a maximum weight of 250 lbs. (113.4 kg) and a maximum width of 48 inches (1219.2 mm) for both interior and exterior use. Designed for double-acting doors, the 20330P Jackson Dummy Closer is compatible with aluminum and hollow metal doors, making it versatile for various settings. The 1/2 inch (12.7 mm) spindle offers reliable functionality, while its UL listing ensures adherence to safety standards. Shipping is straightforward, as there are no limitations; however, the product must be shipped via common carrier only. Whether for commercial or residential projects, the C.R. Laurence 20330P Jackson Dummy Closer combines practicality with durability, providing a seamless solution for your architectural needs.
Jackson Dummy Closer for Use as a Top Pivot
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Body Height: 1-11/16 in. (42.9 mm)
Body Length: 11-5/8 in. (295.3 mm)
Body Widt: 3-11/16 in. (93.7 mm)
Body Width: 3-11/16 in. (93.7 mm)
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Handing: Double Acting
Maximum Door Weight: 250 lbs. (113.4 kg)
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 48 in. (1219.2 mm)
Pivot Only Closer: Yes
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2 in. (12.7 mm)
UL Listed: Yes
