CRL 21201P62817 Jackson Satin Aluminum Adjustable Concealed Closer with Offset Slide-Arm

C.R. Laurence Jackson® 21201P62817 Satin Aluminum Adjustable Spring Power Multi Size 105 No Hold Open Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package is engineered for versatility and durability. This high-performance closer accommodates doors ranging from 30" to 42" wide (762 mm to 1.07 m) and features a robust spring power adjustable mechanism. The included P Offset Slide-Arm Hardware Package is specifically designed for doors with 5/8" shallow top rails, ensuring a seamless fit and operation. The Closer is equipped with dual independent valves that allow for precise control over both closing and latching speeds, enhancing usability and safety. With a no-hold-open feature at 105º, this closer is ideal for high-traffic areas where controlled movement is essential. Constructed from durable aluminum, it supports a maximum door weight of 250 lbs and fits into standard 1-3/4" x 4" header extrusions. Backed by a five-year limited warranty and UL listed for compliance, the CRL Jackson® 21201P62817 not only meets rigorous standards but also offers peace of mind in performance. This overhead concealed closer is an excellent choice for both commercial and residential applications, ensuring reliable operation and aesthetic appeal.

Jackson Satin Aluminum Adjustable Spring Power Multi Size 105 No Hold Open Overhead Concealed Closer With "P" Offset Slide-Arm Hardware Package

• P Offset Slide-Arm Hardware Package for Doors with 5/8" Shallow Top Rails
• Spring Power Adjustable Closer Suitable for Doors From 30" to 42" (762 mm to 1.07 m) Wide
• Five Year Limited Warranty U.L. Listed

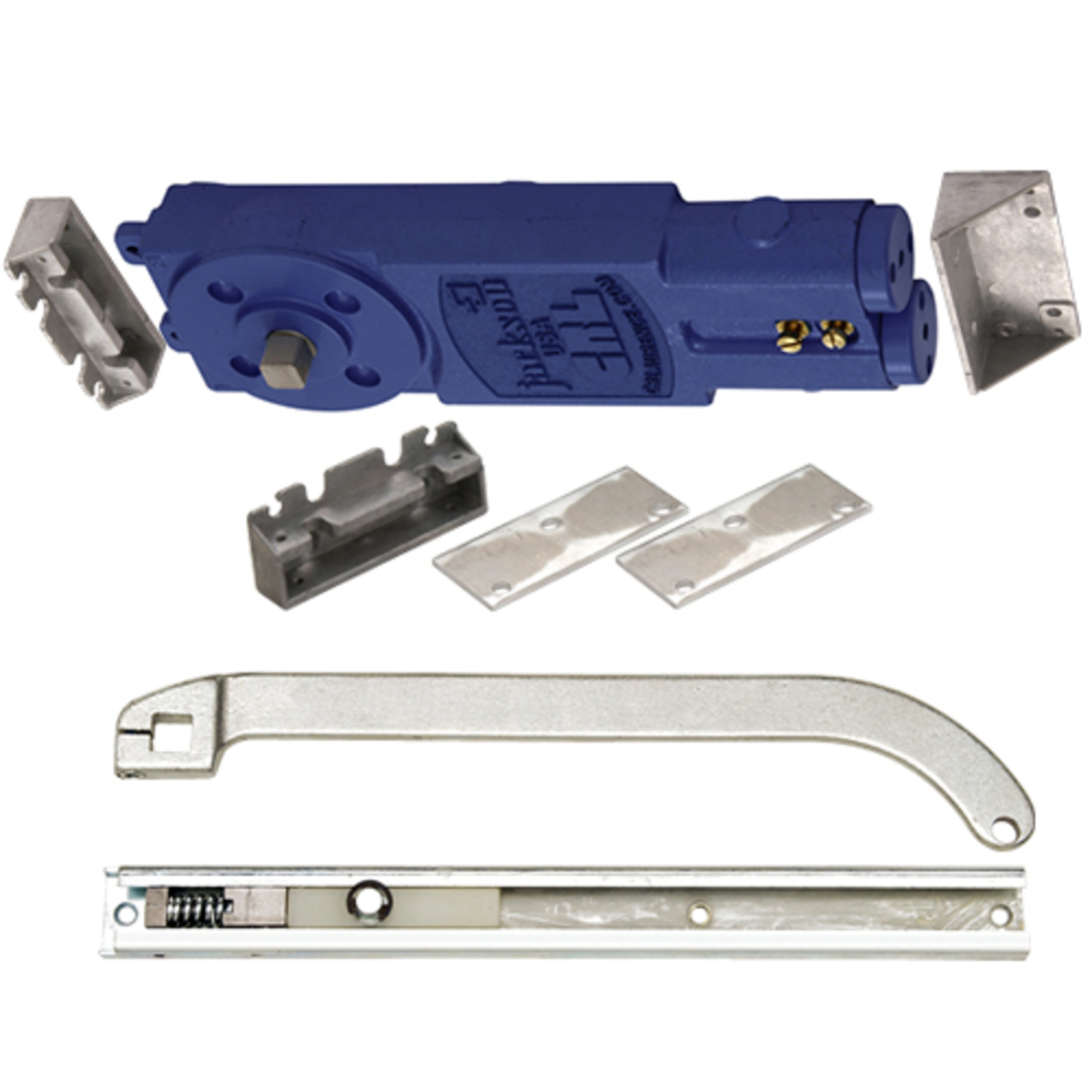

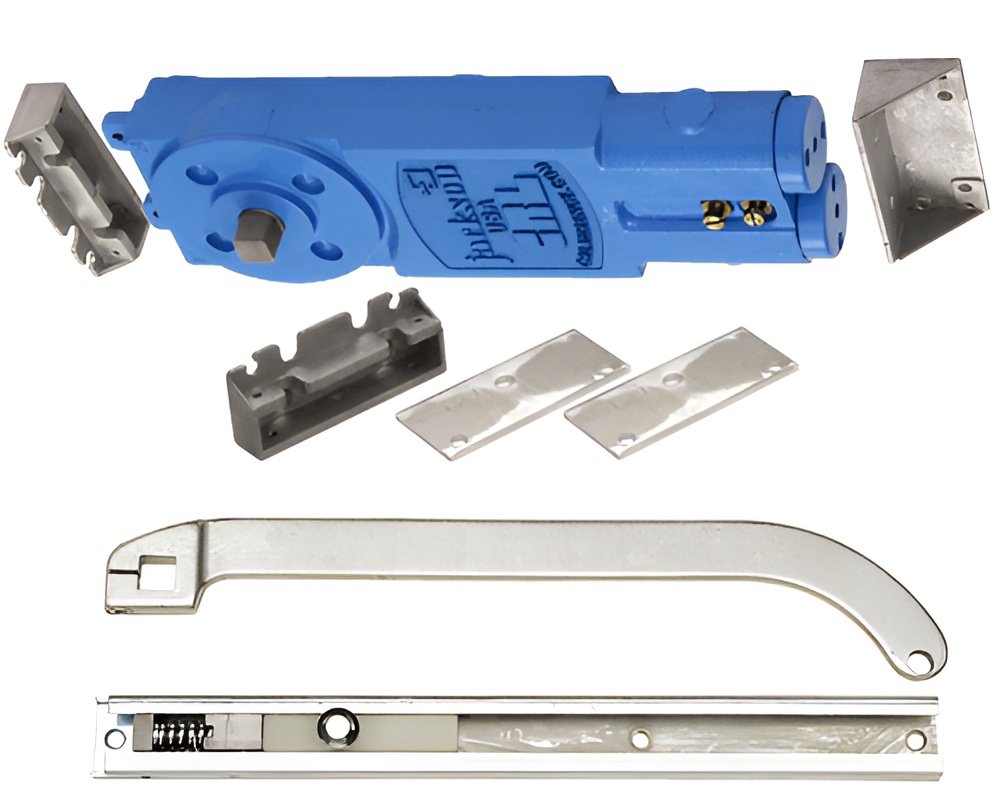

The CRL Jackson® 21201 Series Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package consists of a Spring Power Adjustable Closer mechanism, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The Closer is packaged complete with Cat. No. 20118 Mounting Clips, 201133 Offset Arm Package, 201129 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 105º No Hold Open with fixed adjustable spring power multi size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.

Resources

• Adjustment Instructions For Overhead Concealed Door Closers - English AVDB3028-English.pdf
• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
