CRL 21201S62817 Jackson Satin Aluminum Adjustable Concealed Closer with Slide-Arm Hardware

CRL Jackson® 21201S62817 Overhead Concealed Closer is engineered for optimal functionality, making it an excellent choice for commercial and residential applications. This adjustable spring power closer is designed to accommodate doors ranging from 30" to 42" wide (762 mm to 1.07 m) and features a robust S Offset Slide-Arm Hardware Package, specifically tailored for doors with 7/8" shallow top rails. The closer boasts dual independent valves that allow precise control over closing and latching speeds, enhancing user convenience and safety. With a 105º no hold-open feature, it ensures smooth operation without compromising security. Constructed from high-quality aluminum, this model supports a maximum door weight of 250 pounds, making it suitable for both aluminum and hollow metal doors. Installation is straightforward, as the package includes essential components such as Cat. No. 20951 Mounting Clips, 20942 Offset Arm Package, and 20368 Slide Channel, along with clear installation instructions. U.L. listed and backed by a five-year limited warranty, the CRL Jackson® 21201S62817 is a reliable choice for those seeking a durable and efficient overhead closer solution.

Jackson Satin Aluminum Adjustable Spring Power Multi Size 105 No Hold Open Overhead Concealed Closer With "S" Offset Slide-Arm Hardware Package

• S Offset Slide-Arm Hardware Package for Doors with 7/8" Shallow Top Rails
• Spring Power Adjustable Closer Suitable for Doors from 30" to 42" (762 mm to 1.07 m) Wide
• Five Year Limited Warranty U.L. Listed

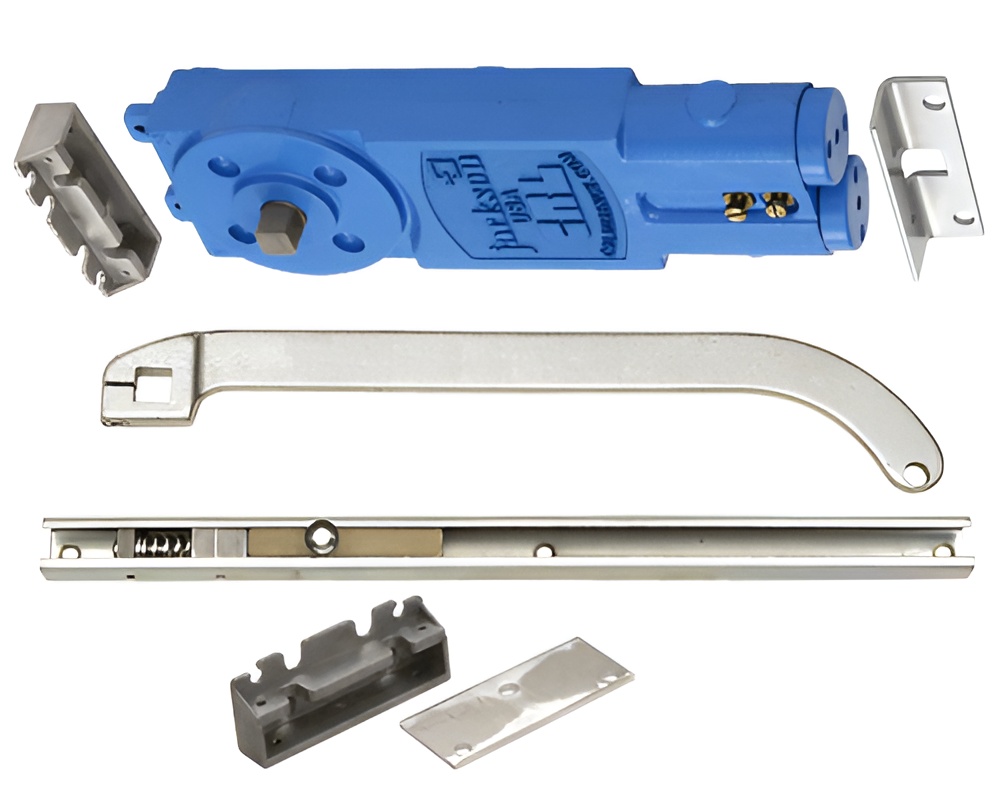

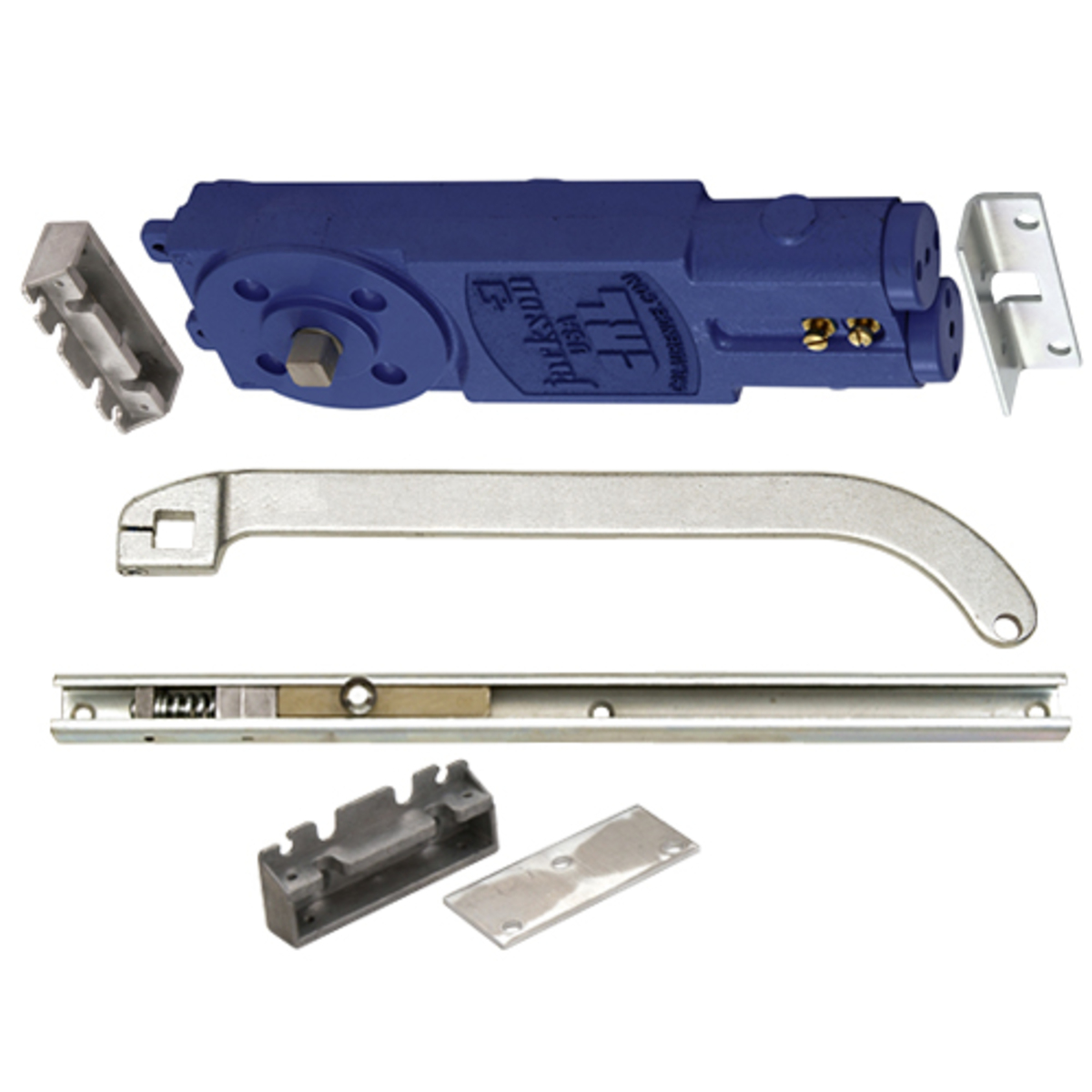

The CRL Jackson® 21201 Series Overhead Concealed Closer with "S" Offset Slide-Arm Hardware Package consists of a Spring Power Adjustable Closer mechanism, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The Closer is packaged complete with Cat. No. 20951 Mounting Clips, 20942 Offset Arm Package, 20368 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 105º No Hold Open with fixed adjustable spring power multi size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.

Resources

• Adjustment Instructions For Overhead Concealed Door Closers - English AVDB3028-English.pdf
• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
