CRL 21201U31302 Jackson Dark Bronze Concealed Closer with U Offset Slide-Arm Hardware

C.R. Laurence Jackson Dark Bronze Regular Duty Spring 105 Hold Open Overhead Concealed Closer is an essential component for enhancing the functionality and aesthetics of your door systems. Designed with a 'U' Offset Slide-Arm Hardware Package, this closer accommodates doors with 7/8" (22.2 mm) shallow top rails and is suitable for widths ranging from 30" to 48" (762 mm to 1.22 m). The closer features dual independent valves that allow for precise control over closing and latching speeds, ensuring smooth operation every time. Its hold-open function at 105° makes it ideal for high-traffic areas, providing convenience and ease of access. Crafted from durable aluminum and finished in a refined dark bronze, this closer not only performs reliably but also complements various architectural styles. With a maximum door weight capacity of 250 lbs and a ten-year limited warranty, the CRL Jackson closer delivers both strength and longevity. It fits seamlessly into standard 1-3/4" x 4" (or larger) header extrusions, making installation straightforward. This non-handed closer is compliant with U.L. standards, ensuring safety and reliability in any application. Upgrade your door hardware with this professional-grade solution that combines performance with style.

Jackson Dark Bronze Regular Duty Spring 105 Hold Open Overhead Concealed Closer With 'U' Offset Slide-Arm Hardware Package Dark Bronze

• 'U' Offset Slide-Arm Hardware Package for Doors with 7/8" (22.2 mm) Shallow Top Rails
• Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
• Ten Year Limited Warranty U.L. Listed

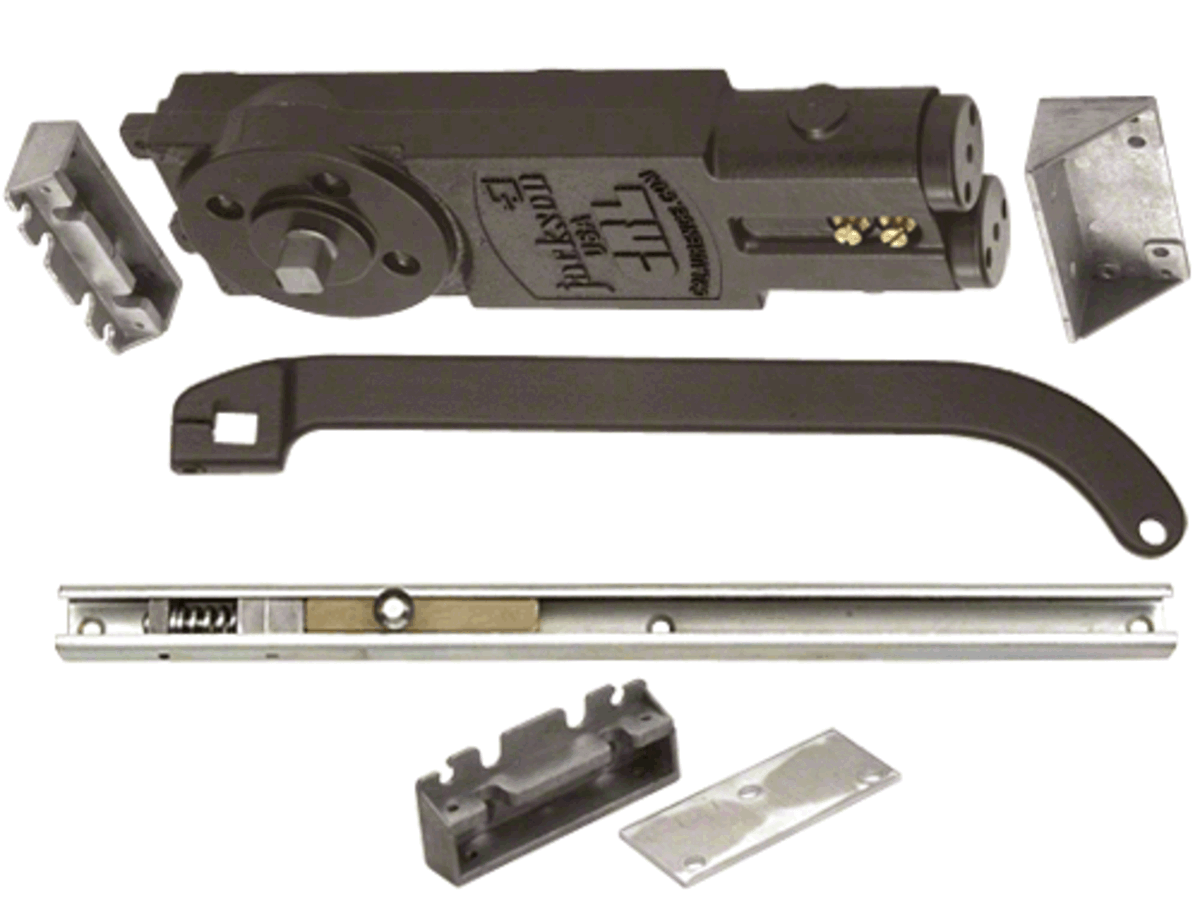

The CRL Jackson® 21201 Series Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 201387 Mounting Clips, 20942 Offset Arm Package, 20368 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 105º, Hold Open wth fixed regular duty spring size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.

Resources

• Adjustment Instructions For Overhead Concealed Door Closers - English AVDB3028-English.pdf
