C.R. Laurence Jackson Satin Aluminum Regular Duty Spring 105 Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package delivers exceptional performance and reliability for various door installations. Designed for doors measuring between 30" and 48" (762 mm to 1.22 m) wide, this overhead closer seamlessly integrates into standard 1-3/4" x 4" (or larger) header extrusions. The unit features a 'U' Offset Slide-Arm, perfect for doors with 7/8" (22.2 mm) shallow top rails, providing a sleek and unobtrusive appearance. With dual independent valves, users can easily adjust both closing and latching speeds for maximum convenience. The 105° hold open feature allows doors to remain in an open position, enhancing accessibility in high-traffic areas. Constructed from durable aluminum, this closer is built to withstand daily use while supporting a maximum door weight of 250 lbs. It comes complete with necessary mounting clips, an offset arm package, and a slide channel, ensuring a straightforward installation process. Backed by a ten-year limited warranty and U.L. listed for safety, the C.R. Laurence overhead closer is an ideal choice for architects, builders, and homeowners seeking quality hardware solutions for their projects.
Jackson Satin Aluminum Regular Duty Spring 105 Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package

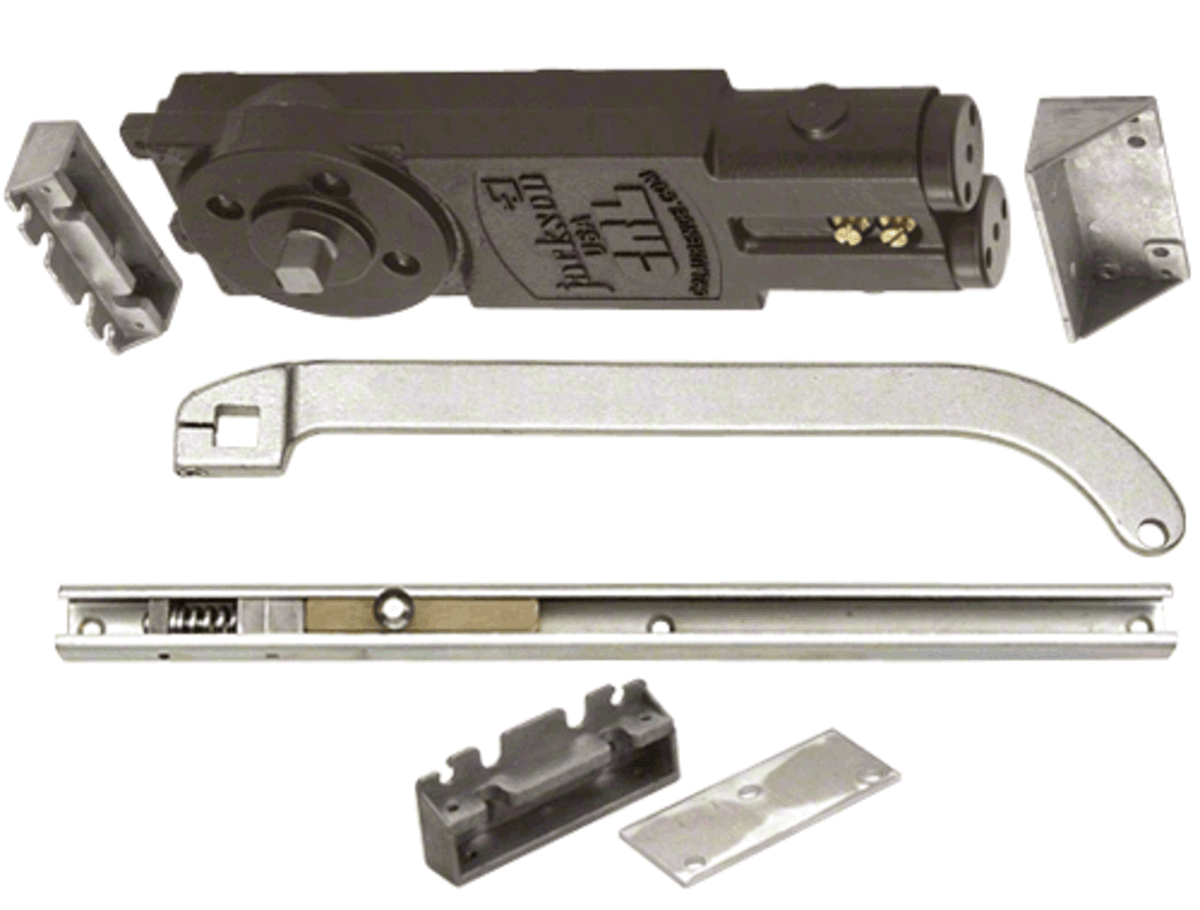

The CRL Jackson® 21201 Series Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 201387 Mounting Clips, 20942 Offset Arm Package, 20368 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 105º Hold Open with fixed regurlar duty spring size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Arm Type: 'U' Offset Slide-Arm
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Brand: Jackson
Case Quantity: 4
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Aluminum
Handing: Non Handed
Hold Open: 105°
Includes: 20101M02, 201381, 20942628, 20368
Material: Aluminum
Maximum Door Weight: 250
Package Type: Offset Arm U
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: 20106628, 20190628, DCH4SAS, 20900LC628
Shipping Limitations: None
Similar: 21201S62801
Spindle: 1/2
Spring Size: Regular
Top Rail Depth: 7/8
UL Listed: Yes
