CRL 21201U62817 Jackson Adjustable Aluminum Overhead Concealed Closer with Slide-Arm

C.R. Laurence Jackson Aluminum Adjustable Spring Power Multi Size 105 No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package is engineered for durability and versatility in commercial and residential applications. This overhead concealed closer accommodates doors ranging from 30" to 42" wide (762 mm to 1.07 m) and is designed for installation in headers with a depth of 7/8" (22.2 mm). The innovative design features dual independent valves that allow you to fine-tune both closing and latching speeds, ensuring smooth operation tailored to your specific needs. With a maximum door weight capacity of 250 lbs, it is suitable for a variety of door types, including aluminum and hollow metal. The closer is non-handed, making it a flexible choice for different configurations. Included in the package are essential components such as mounting clips, an offset arm package, and a slide channel, along with comprehensive installation instructions. This unit is UL Listed, ensuring compliance with safety standards, and comes with a ten-year limited warranty for peace of mind. Whether you're renovating an existing space or building new, the C.R. Laurence overhead concealed closer is a reliable solution that combines functionality with aesthetic appeal.

Jackson Aluminum Adjustable Spring Power Multi Size 105 No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package

• 'U' Offset Slide-Arm Hardware Package for Doors with 7/8" (22.2 mm) Shallow Top Rails
• Spring Power Adjustable Closer Suitable for Doors from 30" to 42" (762 mm to 1.07 m) Wide
• Ten Year Limited Warranty U.L. Listed

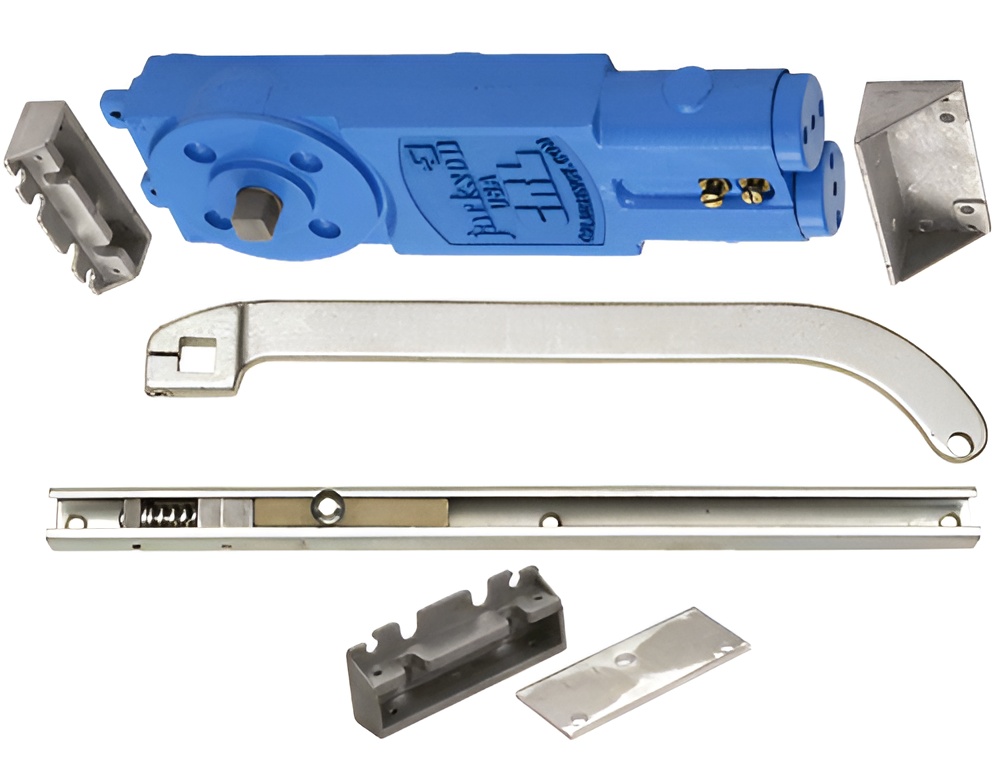

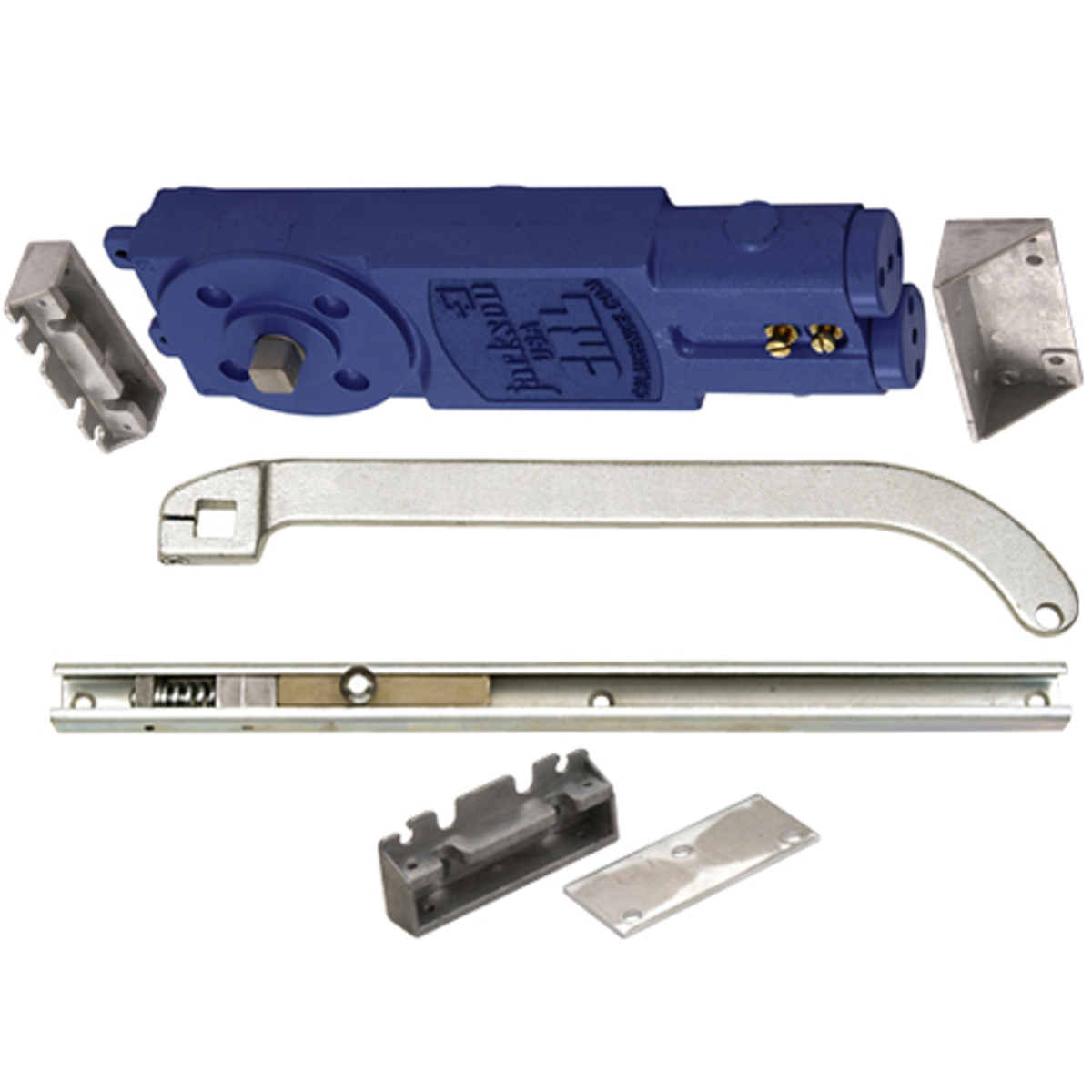

The CRL Jackson® 21201 Series Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package consists of a Spring Power Adjustable Closer mechanism, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The Closer is packaged complete with Cat. No. 201387 Mounting Clips, 20942 Offset Arm Package, 20368 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 105º No Hold Open with fixed adjustable spring power size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.

Resources

• Adjustment Instructions For Overhead Concealed Door Closers - English AVDB3028-English.pdf
• How to Order Overhead Concealed Closers.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
